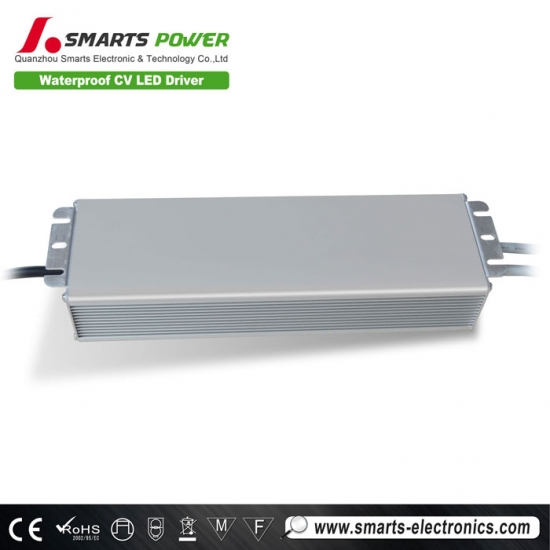

ip67 12v power supply rgb led downlight 200w
This ip67 12v power supply rated to make power supply is able to work in indoor and outdoor locations with GFP Lighting led strip 3000K. the size is 212*56*29mm and has a longer service life.
Specification
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
SPECIFICAION
MODEL
SMT-012-200VE
SMT-024-200VE
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
16.67A
8.33A
CURRENT RANGE
0-16.67A
0-8.33A
RATED POWER
200W
200W
RIPPLE&NOISE(max)
<760mV
VOLTAGE TOLERANCE
±0.5V
INPUT
VOLTAGE RANGE
190-265VAC
FREQUENCY RANGE
47-63Hz
POWER FACTOR(Typ.)
no PFC
EFFICIENCY(Typ.)
》86%
AC CURRENT(Typ.)
1.62A/220VAC
PROTECTION
Short circuit
Hiccpe mode,recovers automatically after condition is removed
Overload
18A
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
INGRESS PROTECTION
IP67 design for indoor or outdoor installations
STORAGE TEMP
-40~+80℃
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards
NOTE
 |
 |
 |
 |

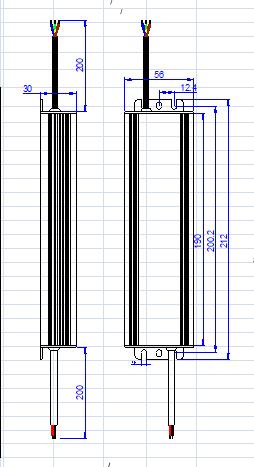

Mechanical Specification
Derating Curve
Application

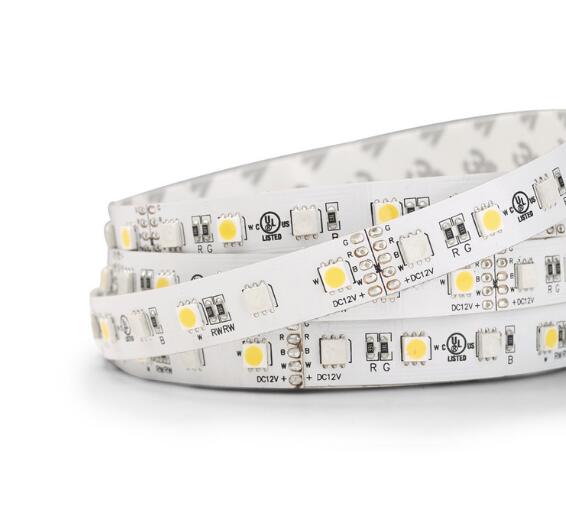

SMARTS 200W rgb led strip power supply is being a highly reliable and low cost way to deliver power to GFP Lighting led strip 60 per meter Chips, and can help you to save money...
Related Products

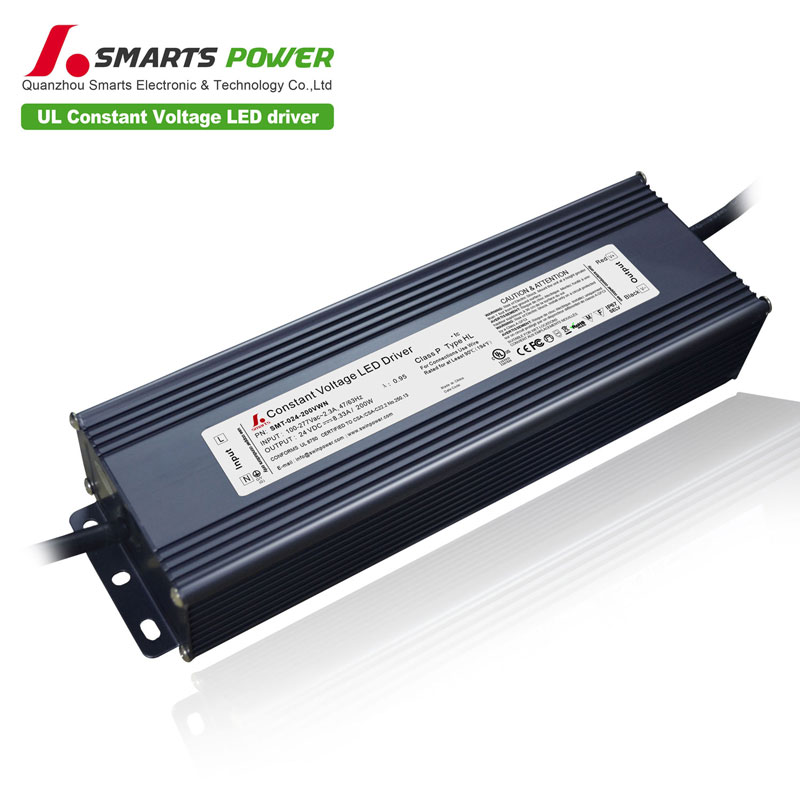

UL certificate 12v 200w constant voltage led driver. which could use for indoor and outdoor project...
