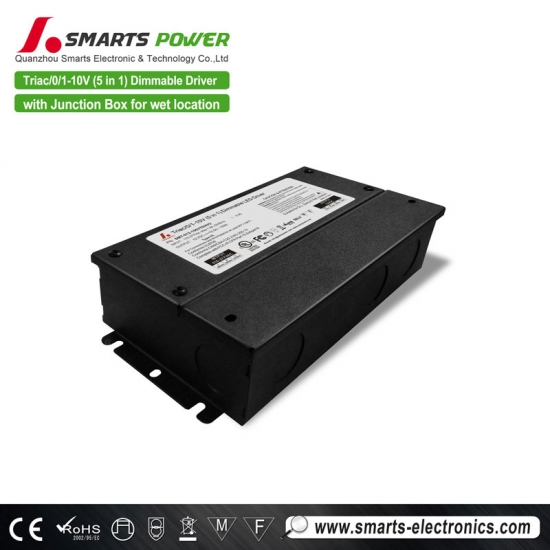

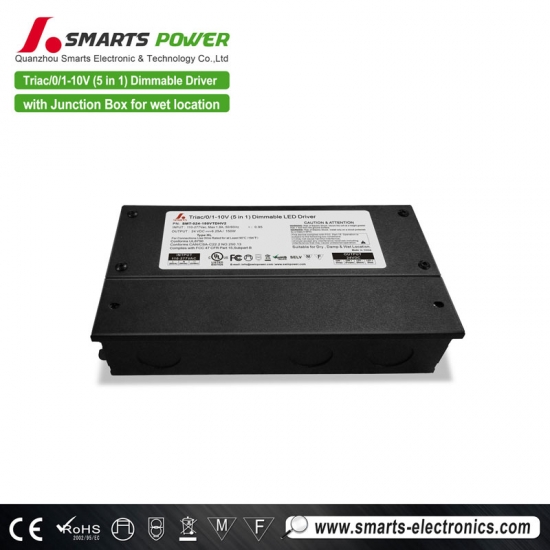

277vac 24v triac 0-10v 5 in 1 dimmable constant voltage led driver 150w

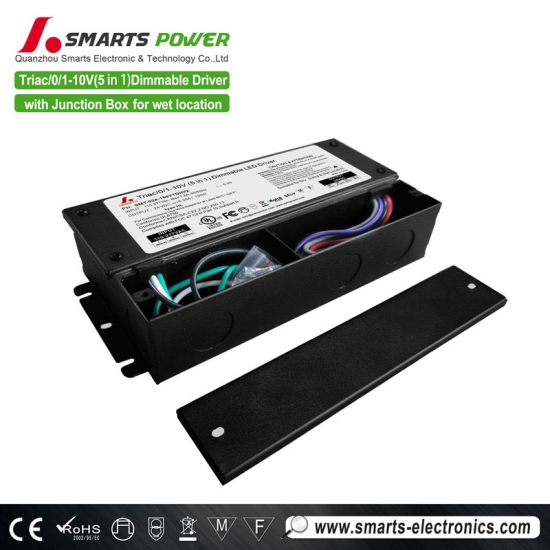

Triac Dimmable 150w 24v dimmable led driver box and machine integrated, can perfectly working with Led Light Expert LED Shoebox Lights 5 years warranty for various large-scale engineering projects
Specification
model
SMT-012-150VTDHV2 (1.0 version)
SMT-012-150VTDHWV2 (2.0 version)
SMT-024-150VTDHV2 (1.0 version)
SMT-024-150VTDHWV2 (2.0 version)
Output
DC Voltage
12V
24V
Voltage Regulation
±0.5%
Rated current
12.5A
6.25A
Voltage Tolerance
±0.5V
Load Regulation
±2%
±1%
±2%
Rated power
150W
150W
Input
Voltage Range
110-277VAC
Frequency Range
47-63Hz
Power Factor@ full load
0.98@120VAC 0.95@277VAC
0.99@120VAC 0.94@277VAC
THD(Typ.)@ full load
<20%
Efficiency @ full load
85% @120Vac 86%@277Vac
79%
85% @120Vac 87%@277Vac
AC Current(Max.)
1.8A@100Vac
Inrush Current (Typ.)
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac
Leakage current
<0.50mA
protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20~90%RH, non-condensing
Storage TEMP. Humidity
-40~+80℃,10~95%RH
TEMP .coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
About 1.8Kg
Size
1.0 version: 260*105*45mm / 2.0 version: 260*125*45mm
Tolerance: 0.5-2mm
1.0 version: SMT-012-150VTDHV2 / SMT-024-150VTDHV2
(L*W*H)
packing
10PCS/CTN
(L*W*H)
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
 |
 |

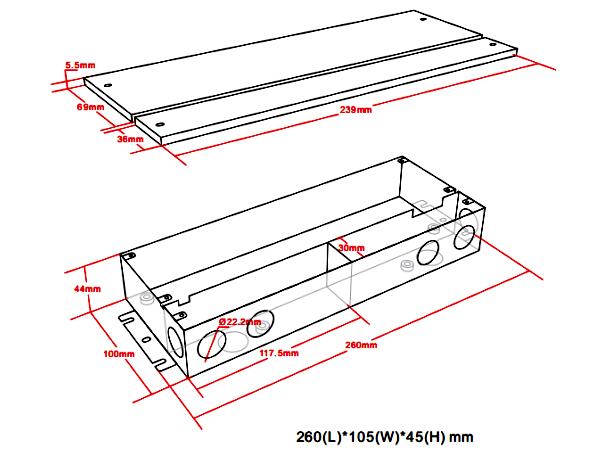

Mechanical Specification

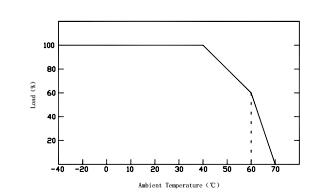

Derating Curve

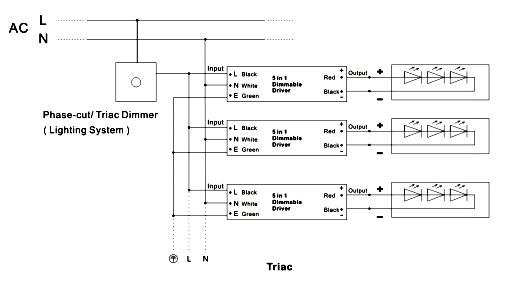

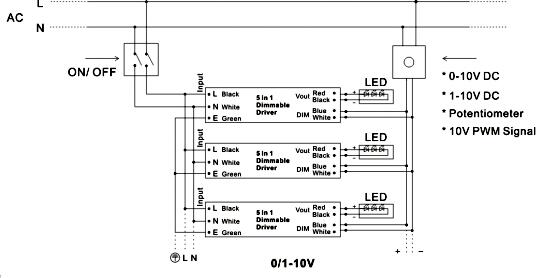

Application
0-10v phase dimmable led driver 150w is a UL cUL listed, with wide world input voltage range 100-277vac for using in 110vac and 277vac applications. overload protection with hiccup mode. without load, its performance is better to installed with Led Light Expert LED Shoebox Lights
Related Products
277 volt ac to 12vdc triac dimmable led light driver match with Lutron 277v led dimmer, UL,FCC listed...

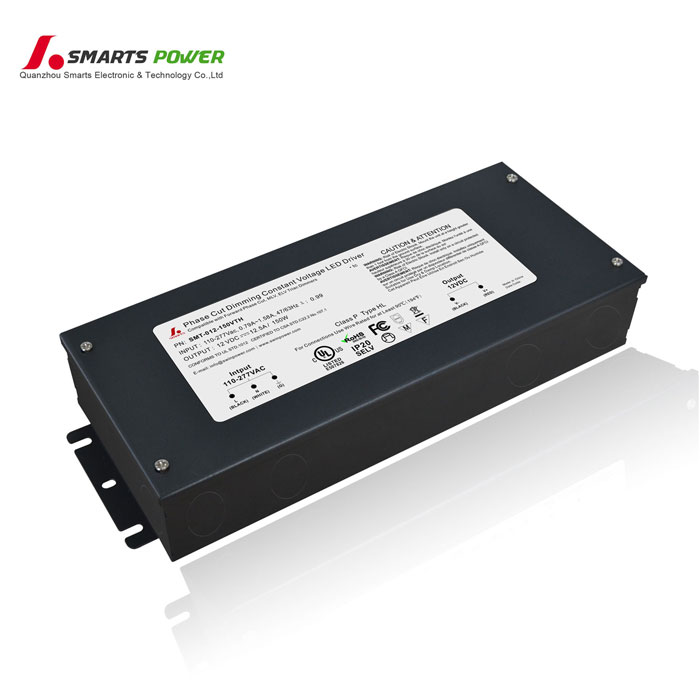

Mode：SMT-012-150VTH Output: 12vdc 8.33amp 150watt intput voltage：100-277VAC Size : 260*103*46mm Working mode: constant voltage dimming mode: triac dimmable CE,UL, RoHS,FCC, Class p ,type HL approval 7 years warranty |
