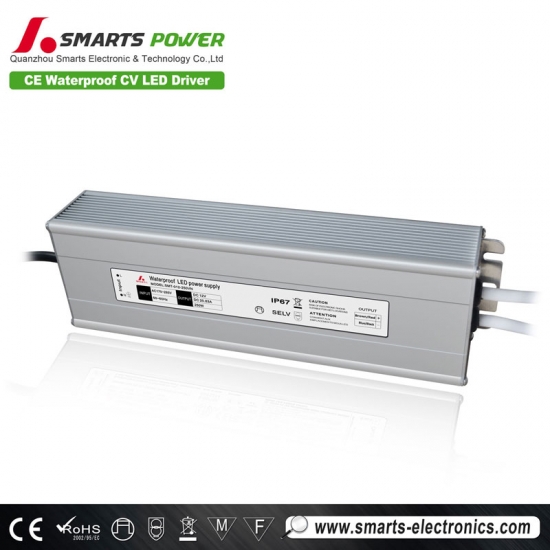

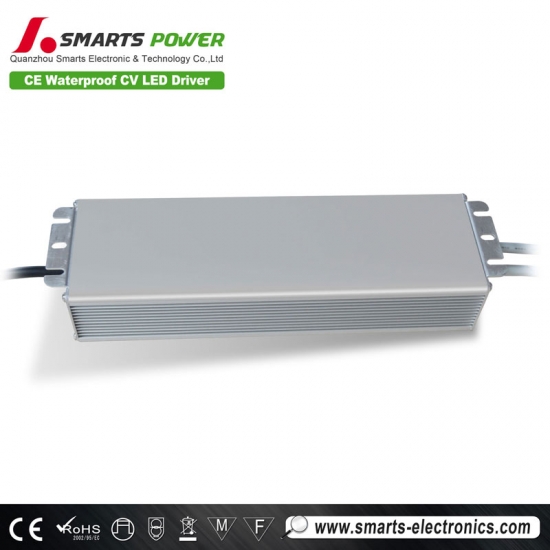

Waterproof IP67 led driver 12v 24v 250w power supply for led lighting
A led power supply driver transformer is suitable for moudel LED lighting Waterproof IP67 led driver 12v 24v 250w led driver power supply could be used in outdoor and indoor location.with 100-265vac to dc transformer for led light.
Feature
● IP67 design for indoor or outdoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● 2 years warranty
Specification
SPECIFICAION
MODEL
SMT-012-250VN
SMT-024-250VN
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
20.83A
10.42A
CURRENT RANGE
0~20.83A
0~10.42A
RATED POWER
250W
250W
RIPPLE&NOISE(max)
<240mV
<240mV
voltage TOLERANCE
12V±5%
24V±5%
VOLTAGE TOLERANCE
±0.5V
±0.5V
SETUP RISE TIME
80ms/110VAC
80ms/110VAC
HOLD UP TIME(Typ.)
60ms/110VAC
60ms/110VAC
INPUT
VOLTAGE RANGE
100~265Vac
100~265Vac
FREQUENCY RANGE
50~60Hz
50~60Hz
POWER FACTOR(Typ.)
no PFC
no PFC
EFFICIENCY(Typ.)
﹥83%
﹥84%
AC CURRENT(Typ.)
0.35A/220V
0.5A/220V
INRUSH CURRENT (Typ.)
COLD START 30A/110~220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@130-150% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards
NOTE
1.All parameters NOT specially mentoned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
 |
 |
 |
 |
