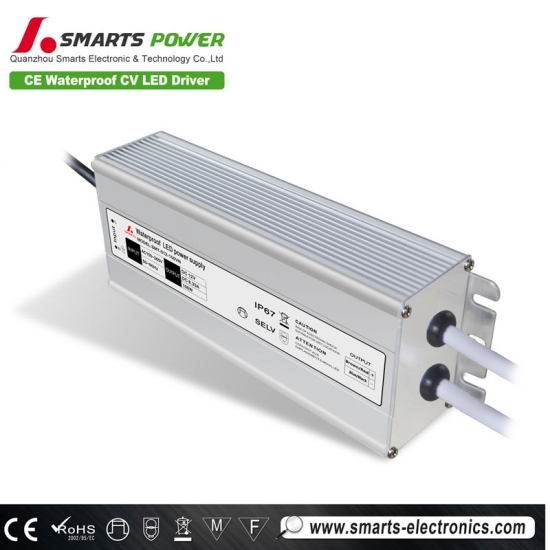

outdoor led driver 12V dc 100w led power supply 220v ac
100-265v input voltage, constant voltage led power supply 100w, 178*71*46mm casing dimension for Vietnam. Myanmar market.
Specification
MODEL
SMT-012-100VN
SMT-024-100VN
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
8.0A
4.0A
CURRENT RANGE
0~8.33A
0~4.16A
RATED POWER
100W
100W
RIPPLE&NOISE(max)
<450mV
<450mV
VOLTAGE TOLERANCE
±0.5V
±0.5V
SETUP RISE TIME
80ms/220VAC
HOLD UP TIME(Typ.)
60ms/220VAC
INPUT
VOLTAGE RANGE
170~265VAC
FREQUENCY RANGE
50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
﹥83%
﹥84%
AC CURRENT(Typ.)
0.92A/110VAC, 0.86A/220VAC
INRUSH CURRENT (Typ.)
COLD START 50A/110VAC, 220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
141W
152W
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof IP67)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards

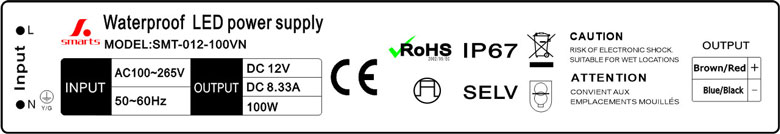

Label
 |
 |
 |
 |

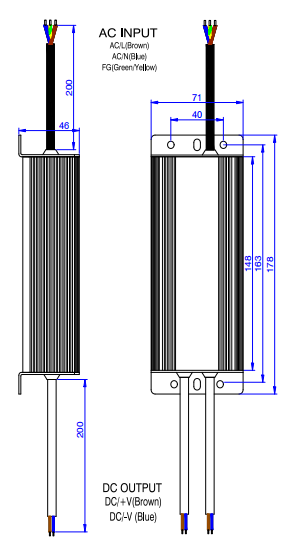

Mechanical Specification
