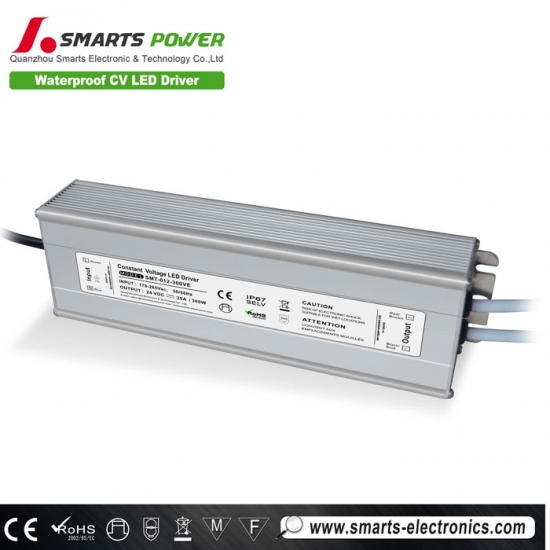

led panel light power supply 12v 300w IP67
240*71*46mm (L*W*H) mini size, led waterproof power supply ip67, 12V @25A 300W output power supply 12 v. IP67 LED Driver has strong privacy and can match Led Max Well led strip white color.
Specification
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
SPECIFICAION
MODEL
SMT-012-300VE
SMT-024-300VE
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
25.0A
12.50A
CURRENT RANGE
0-25.0A
0-12.50A
RATED POWER
300W
300W
RIPPLE&NOISE(max)
<600mV
VOLTAGE TOLERANCE
±0.5V
INPUT
VOLTAGE RANGE
180-265VAC
FREQUENCY RANGE
47-63Hz
POWER FACTOR(Typ.)
no PFC
EFFICIENCY(Typ.)
>82%
>84%
AC CURRENT(Typ.)
2.59A/220VAC
2.57A/220VAC
PROTECTION
Short circuit
Protection type:shut down o/p voltage with re-power on to recovery
Overload
25-27A
12.5-14.5A
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
INGRESS PROTECTION
IP67 design for indoor or outdoor installations
STORAGE TEMP
-40~+80℃
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards
NOTE
 |
 |
 |
 |

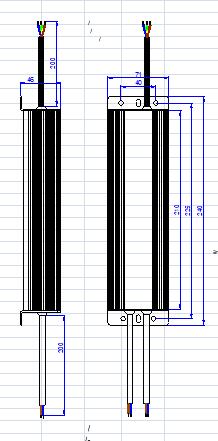

Mechanical Specification
Derating Curve

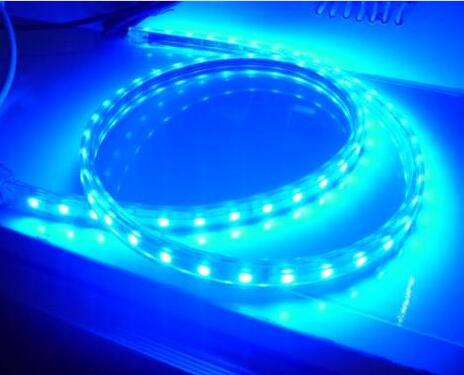

Application
Get LVD certificate led strip power supply 300w, without load, such as, it can drive Led Max Well led strip non-dimmable from 1-300w.
