class 2 power supply outdoor led driver 60 watt 12volt
Very slim 122*58*26mm dimension, 100-265v input voltage to 12volt 60watt led driver/led power supply for outdoor.
Specification
| MODEL | SMT-012-060VN | SMT-024-060VN | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 5.0A | 2.5A | |||
| CURRENT RANGE | 0~5A | 0~2.5A | |||
| RATED POWER | 60W | 60W | |||
| RIPPLE&NOISE(max) | <240mV | <240mV | |||
| voltage TOLERANCE | 12V±5% | 24V±5% | |||
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | |||
| SETUP RISE TIME | 80ms/110VAC | 80ms/110VAC | |||
| HOLD UP TIME(Typ.) | 60ms/110VAC | 60ms/110VAC | |||
| INPUT | VOLTAGE RANGE | 170~265Vac | 170~265Vac | ||
| FREQUENCY RANGE | 50~60Hz | 50~60Hz | |||
| POWER FACTOR(Typ.) | no PFC | no PFC | |||
| EFFICIENCY(Typ.) | ﹥83% | ﹥84% | |||
| AC CURRENT(Typ.) | 0.49A/220V | 0.5A/220V | |||
| INRUSH CURRENT (Typ.) | COLD START 30A/110~220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | 5-7.5A | 2.5-3.75A | |||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;IP67 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| EMC Test Standards | |||||

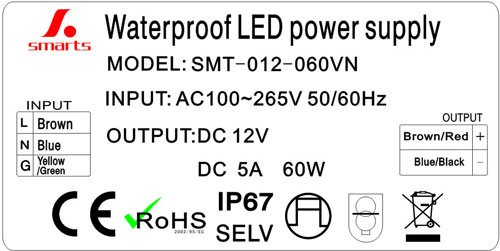

| Label |
 |
||||
 |
 |
 |
 |
 |
|
Mechanical Specification
