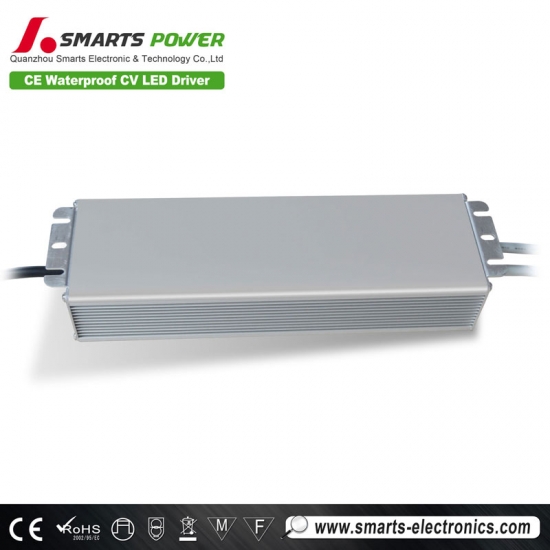

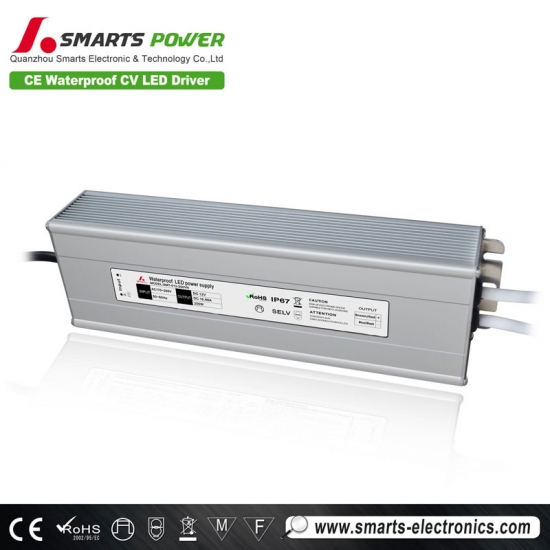

AC to DC 12V 200W Constant voltage led driver for lighting
Led driver power supply depends on which type of LED light or lights you need to power. If you're powering LED tape, you'll need a constant voltage led driver power supply that has a 12V or 24V DC output.
Feature
● IP67 design for indoor or outdoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● 2 years warranty
Specification
SPECIFICAION
MODEL
SMT-012-200VN
SMT-024-200VN
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
16.6A
8.3A
CURRENT RANGE
0~16.6A
0~8.3A
RATED POWER
200W
200W
RIPPLE&NOISE(max)
600mV
600mV
VOLTAGE TOLERANCE
±0.5V
±0.5V
SETUP RISE TIME
80ms/220VAC
HOLD UP TIME(Typ.)
60ms/220VAC
INPUT
VOLTAGE RANGE
170~265VAC
FREQUENCY RANGE
50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
﹥82%
﹥84%
AC CURRENT(Typ.)
1.59A/220VAC
1.57A/220VAC
INRUSH CURRENT (Typ.)
COLD START 50A/220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
16.6-18.2A
8.3-10.2A
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+55℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards
NOTE
1.All parameters NOT specially mentoned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Quanzhou Smarts Electronic & Technology Co.,Ltd
7th floor Hengxin Building 9th Road,Lichen dist., Quanzhou,Fujian,China
Tel.:+86 (595) 2725 6889 | Fax:+86 (595) 2246 5526 | E-mail: steven@smartselectronic.com.cn
 |
 |
 |
 |

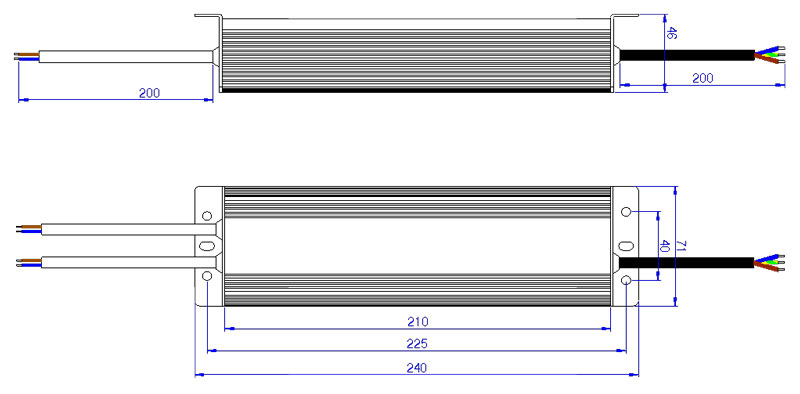

Mechanical Specification
