Multi-current dial code triac 10w dimmable constant current LED driver power supply 450ma
This multi-current dialing 5 in 1 dimmable led driver has passed UL certification. The input voltage is 100-277vac, and the output current range is 100ma-450ma. This power supply has an 8-speed adjustable power supply function, which can satisfy users in various Circumstance demand

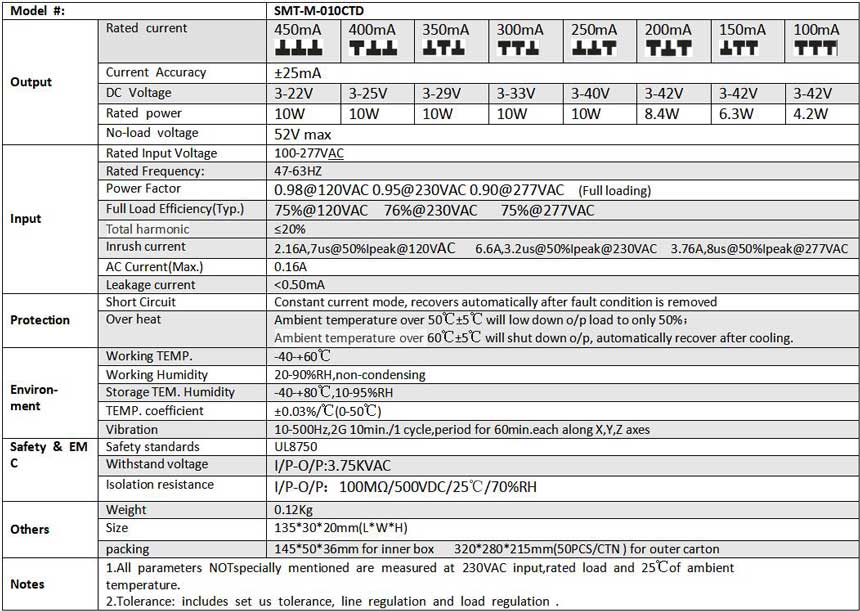

Specification
 |
 |
 |
 |

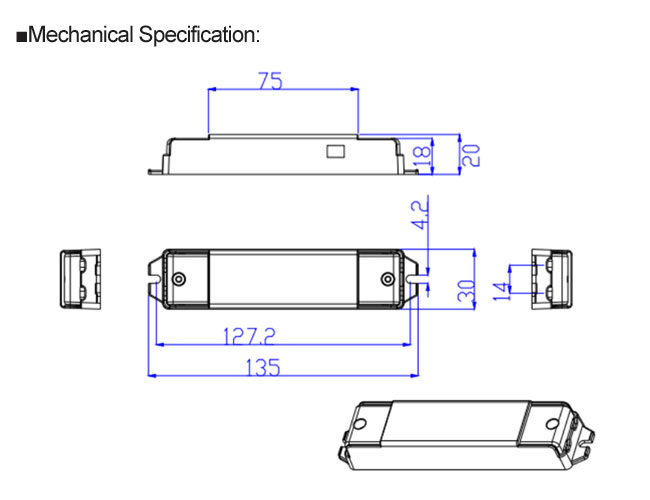

Mechanical Specification
※Input terminals "Black" and "White" to connect to AC L and N.
※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.

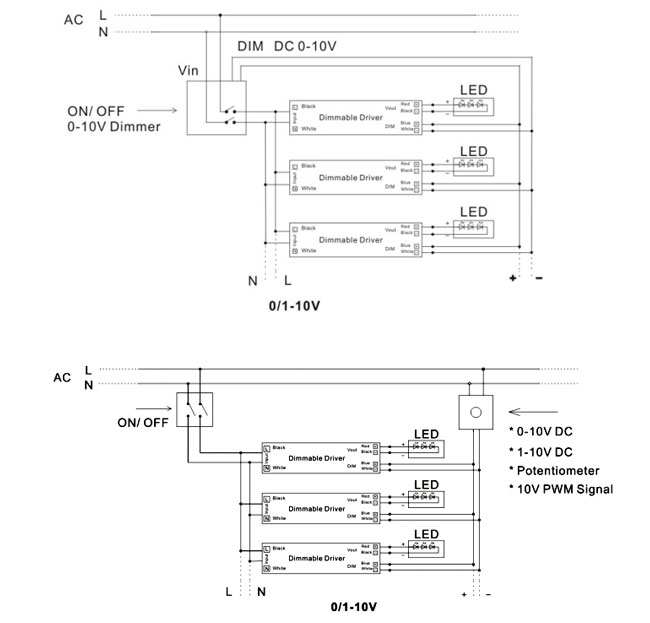

※Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
※Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged

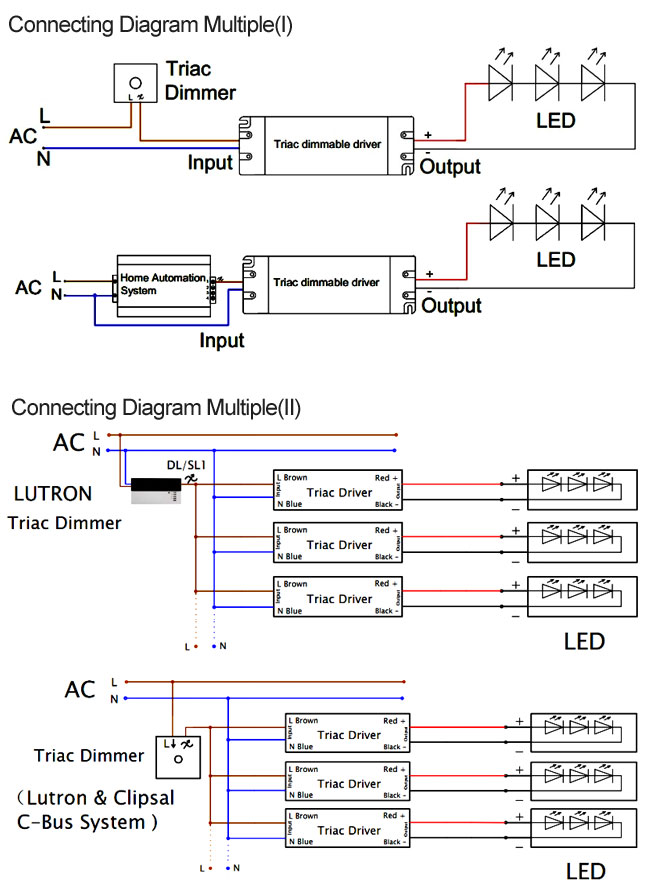

Dimming operation
Related Products
|

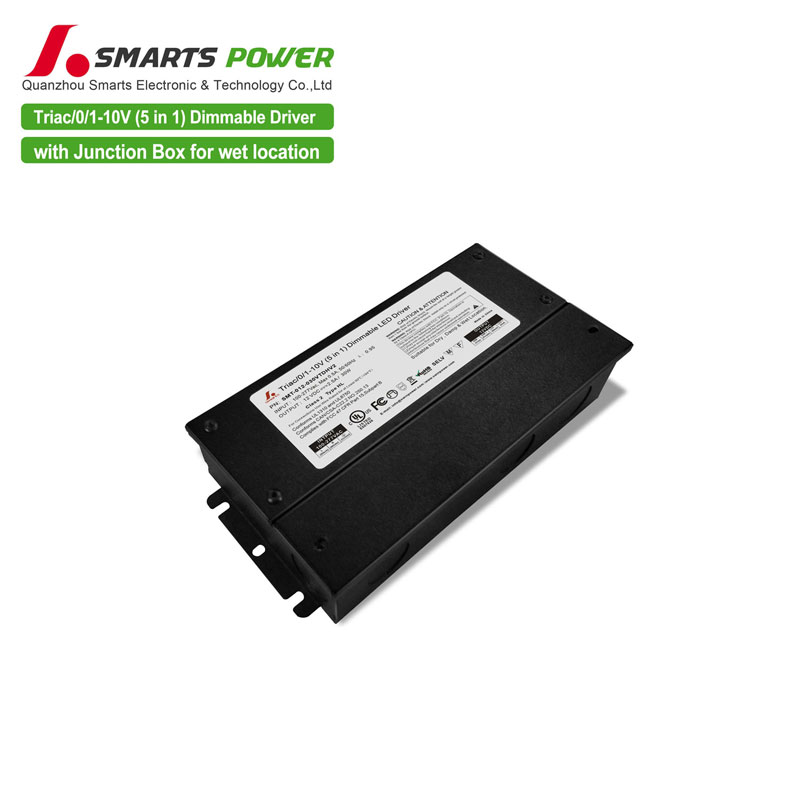

Mode：SMT-012-030VTDHV2 intput voltage：100-277V AC
