12v outdoor ac dc power supply 150w for led strip lights

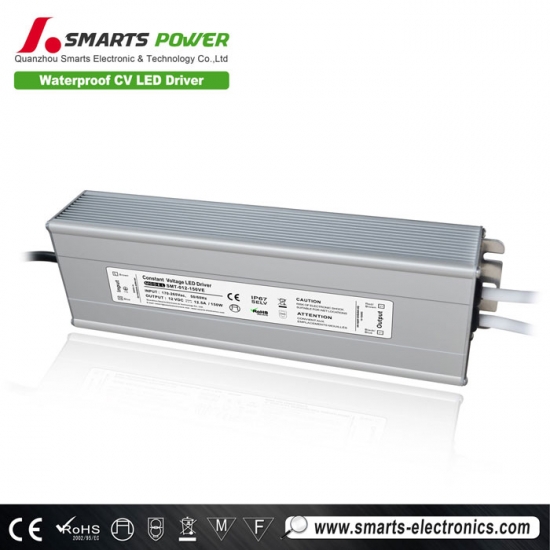

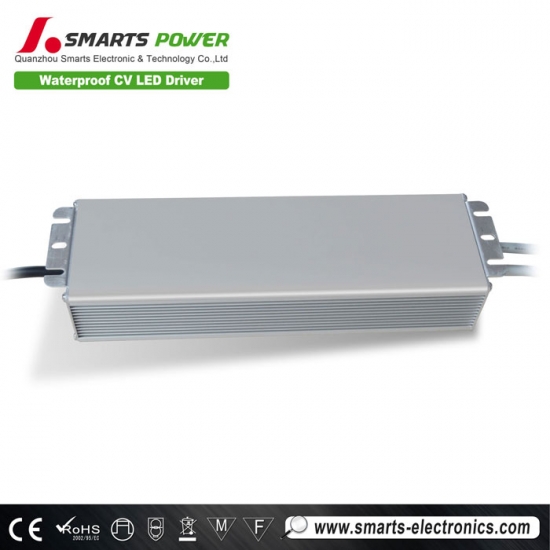

This SMT-012-150VE waterproof led power supply 150w is IP67 waterproof rate, with LVD certificate and cheap price, high quantity. It can drive Future Light LED Striplight 528 Waterproof, and could applications for Street lamp, walk-ways and general site lighting ect.
Specification
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
SPECIFICAION
MODEL
SMT-012-150VE
SMT-024-150VE
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
12.5A
6.25A
CURRENT RANGE
0-12.5A
0-6.25A
RATED POWER
150W
150W
RIPPLE&NOISE(max)
<500mV
VOLTAGE TOLERANCE
±0.5V
INPUT
VOLTAGE RANGE
190-265VAC
FREQUENCY RANGE
47-63Hz
POWER FACTOR(Typ.)
no PFC
EFFICIENCY(Typ.)
》84%
AC CURRENT(Typ.)
1.3A/220VAC
PROTECTION
Short circuit
Hiccpe mode,recovers automatically after condition is removed
Overload
17A
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
INGRESS PROTECTION
IP67 design for indoor or outdoor installations
STORAGE TEMP
-40~+80℃
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards
NOTE
 |
 |
 |
 |

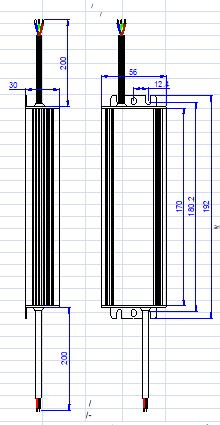

Mechanical Specification
Derating Curve
Application
This 12v outdoor power supply itself is not dimmable version, these constant voltage power supplies 150w could workable with Future Light LED Striplight Cool White & Warm White, 2 years warranty they provided.
Related Products

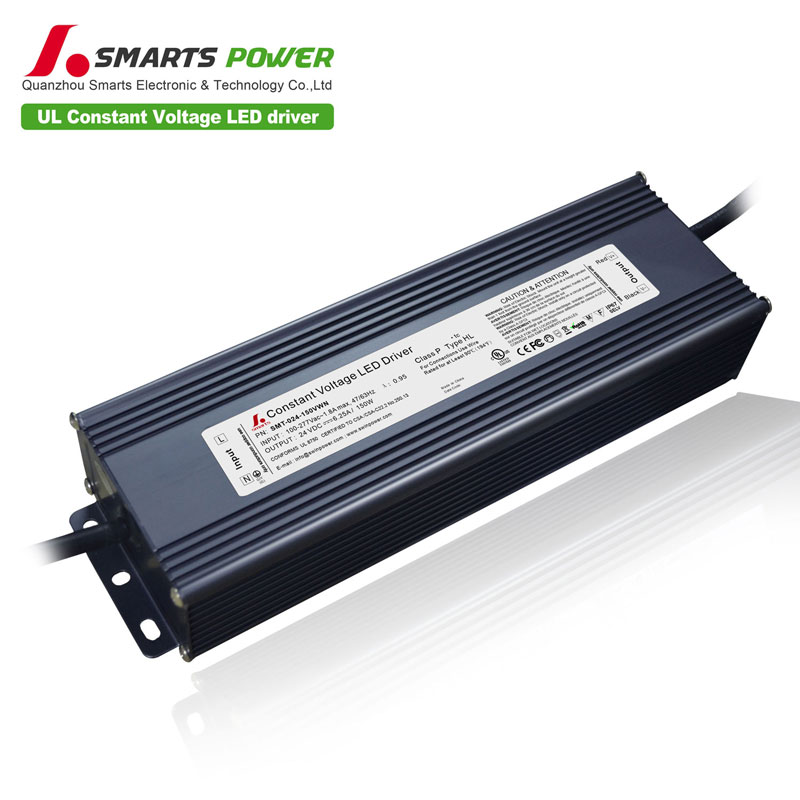

277VAC 24v 150w AC TO DC outdoor led driver, Aluminum case suitable for dry & damp & wet location, 7 years warranty...
