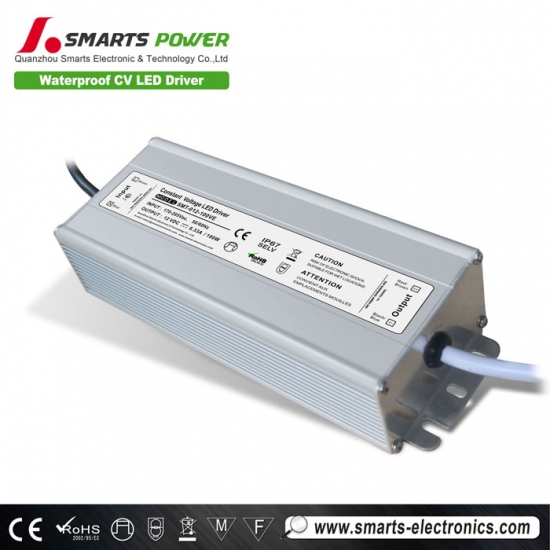

led driver 220v 12v waterproof selv 100w for led strip
SMT-012-100VE is led driver 220v 12, constant voltage working mode strip driver. As for this series led driver,we give 2 years warranty, all are CE(LVD) approval which can be matched with lighting warehouse Flood lights 70w.
Specification
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
SPECIFICAION
MODEL
SMT-012-100VE
SMT-024-096VE
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
8.33A
4.0A
CURRENT RANGE
0-8.33A
0-4.0A
RATED POWER
100W
96W
RIPPLE&NOISE(max)
<400mV
VOLTAGE TOLERANCE
±0.5V
INPUT
VOLTAGE RANGE
190-265VAC
FREQUENCY RANGE
47-63Hz
POWER FACTOR(Typ.)
no PFC
EFFICIENCY(Typ.)
》85%
AC CURRENT(Typ.)
0.88A/220VAC
PROTECTION
Short circuit
Hiccpe mode,recovers automatically after condition is removed
Overload
11A
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
INGRESS PROTECTION
IP67 design for indoor or outdoor installations
STORAGE TEMP
-40~+80℃
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards
NOTE
 |
 |
 |
 |

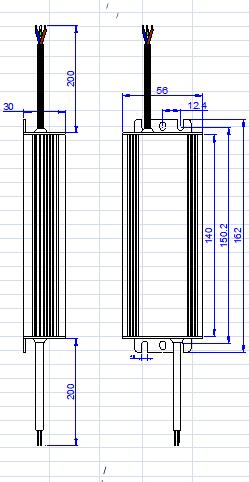

Mechanical Specification
Derating Curve
Application

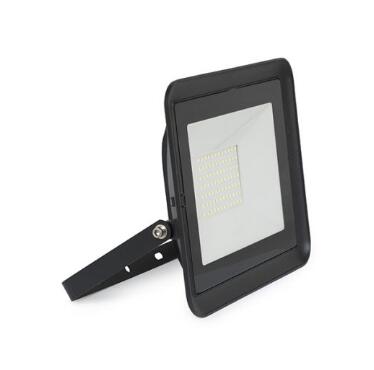

SMT-012-100VE is waterproof led driver ip67 12v 100w output. AC to DC power supply.2 years warranty, which is the best choose for lighting warehouse Flood lights 6000K.
