We are a CE Safety approved manufacturer of led power supply 24v 12v. Smarts Electronics products are manufactured in China.

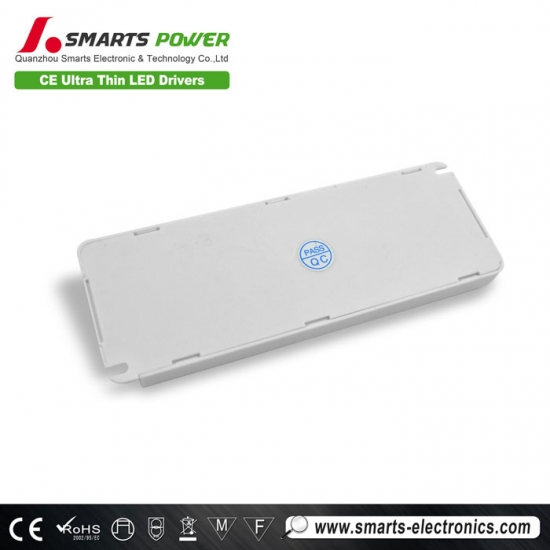

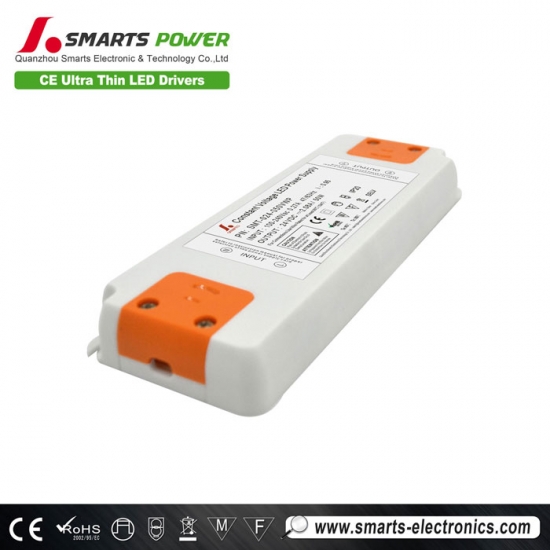

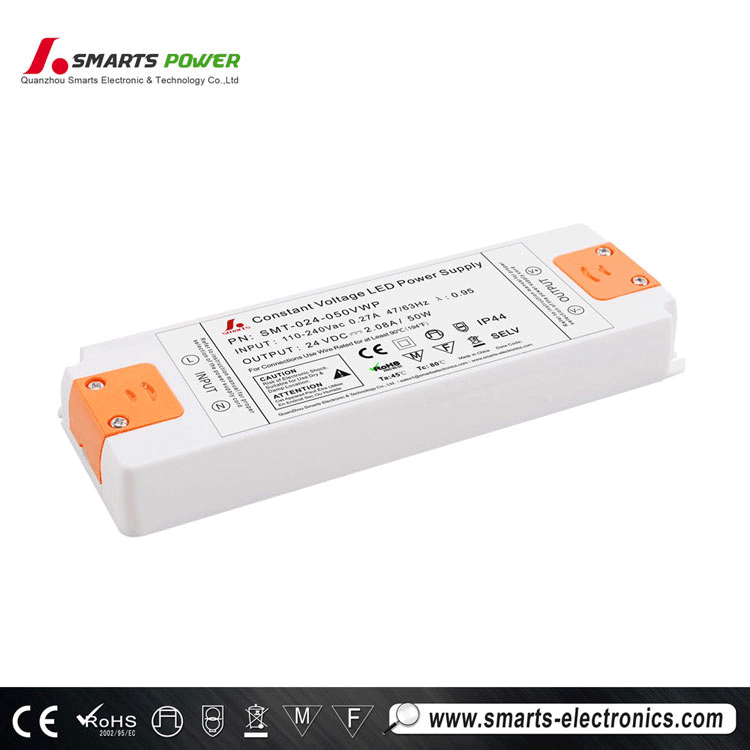

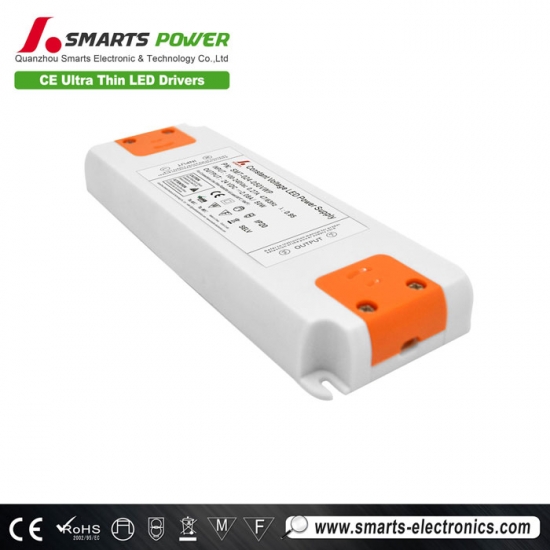

Details for 50w led driver:
Features
● IP20 design for indoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● Products through CE,RoHS Certification
● 2 years warranty / 3 years warranty with High PF>0.95
Product video

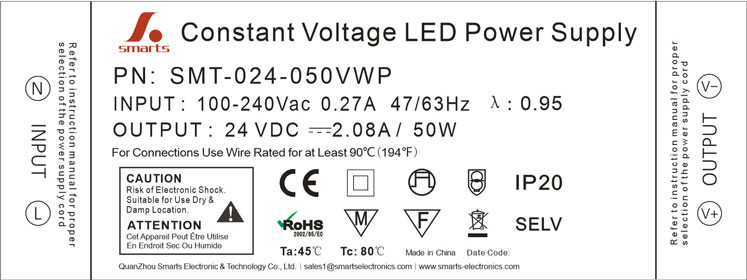

Label
Specifications for 50w led driver:
| MODEL | SMT-012-050VWP | SMT-024-050VWP |
|
|
|
| OUTPUT | DC VOLTAGE | 12V | 24V |
|
|
| RATED CURRENT | 4.2Amp | 2.1Amp |
|
|
|
| VOLTAGE RANGE | 0-4.2A | 0-2.1A |
|
|
|
| RATED POWER | 50Watt | 50Watt |
|
|
|
| RIPPLE&NOISE(max) | 300mV | 300mV |
|
|
|
| VOLTAGE TOLERANCE | ±5% | ±5% |
|
|
|
| LINE REGULATION | ±1% | ±1% |
|
|
|
| LOAD REGULATION | ±2% | ±2% |
|
|
|
| INPUT | VOLTAGE RANGE | 100-265VAC | 100-265VAC |
|
|
| FREQUENCY RANGE | 47-63Hz | 47-63Hz |
|
|
|
| POWER FACTOR(Typ.) |
|
|
|
|
|
| EFFICIENCY(Typ.) | ﹥83% | ﹥83% |
|
|
|
| AC CURRENT(Typ.) | 0.57A/110VAC, 0.28A/220VAC |
|
|
||
| PROTECTION | SHORT CIRCUIT | Protection type:recovers automatically after condition is removed | |||
| OVER CURRENT | overload protected@145-160% above peak rating | ||||
| OVER LOAD | 4.8A | 2.5A |
|
|
|
| OVER VOLTAGE | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -10～+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20～99% RH non-condensing | ||||
| STORAGE TEMP.,HUMIDITY | -40～+80℃,10～99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13; CE /ROHS approval | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3; | ||||
| EN61547;EN61000-4-2,3,4,5,6,8,11; | |||||
 |
 |
 |
 |
Noted for 50w led driver
1.All parameters NOT specially mentioned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Mechanical Specification for 50w led driver
