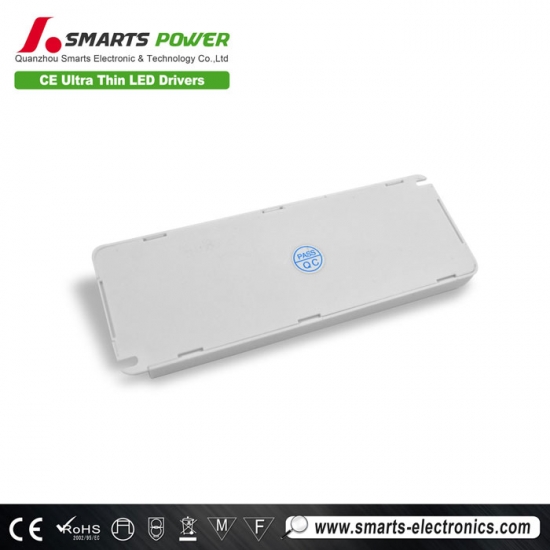

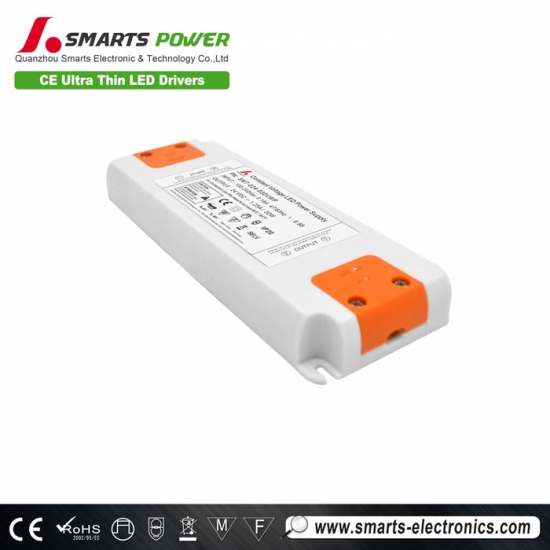

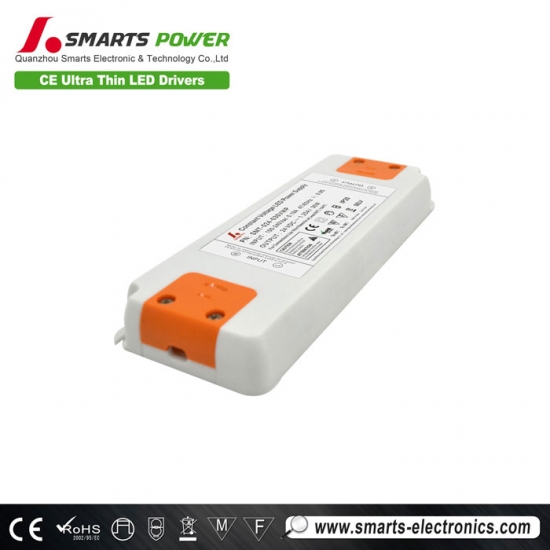

pass EMC TUV led driver 24v 30w led power supply for led screen
Plastic housing. super slim 160*57.6*19mm 30w 24v led power supply for led screen indoor IP20.
Specification
| MODEL | SMT-012-030VWP | SMT-024-030VWP | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 1.5Amp | 1.25Amp | |
| VOLTAGE RANGE | |||
| RATED POWER | 30Watt | 30Watt | |
| RIPPLE&NOISE(max) | 300mV | 300mV | |
| VOLTAGE TOLERANCE | ±5% | ±5% | |
| LINE REGULATION | ±1% | ±1% | |
| LOAD REGULATION | ±2% | ±2% | |
| INPUT | VOLTAGE RANGE | 100-265VAC | 100-265VAC |
| FREQUENCY RANGE | 47-63Hz | 47-63Hz | |
| POWER FACTOR(Typ.) | |||
| EFFICIENCY(Typ.) | >83% | >84% | |
| AC CURRENT(Typ.) | 0.31A/110VAC, 0.17A/220VAC | ||
| PROTECTION | SHORT CIRCUIT | Protection type:recovers automatically after condition is removed | |
| OVER CURRENT | overload protected@145-160% above peak rating | ||
| OVER VOLTAGE | Protection type:Shut down o/p voltage,re-power on to removed | ||
| ENVIRONMENT | WORKING TEMP. | -10~+50℃ (Refer to output load derating curve) | |
| WORKING HUMIDITY | 20~99% RH non-condensing | ||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13; UL /CE /ROHS approval | |
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3; | ||
| EN61547;EN61000-4-2,3,4,5,6,8,11; | |||
 |
 |
 |
 |

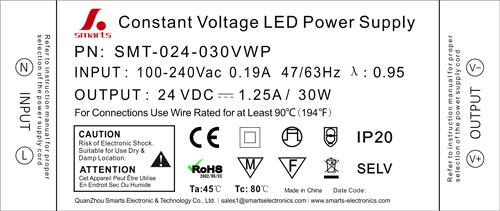

Label
Mechanical Specification
Constant voltage?
Constant voltage LED driver are designed for a single direct current (DC) output voltage. Most common constant voltage drivers (or LED Power Supplies) are 12Vdc or 24Vdc. It is ideal for paralleled LED lighting arrays because they generally have a resistor in built to control the current, therefore a constant voltage led driver would be required to convert the AC power to the required DC voltage.
