Non-dimmable LED Driver

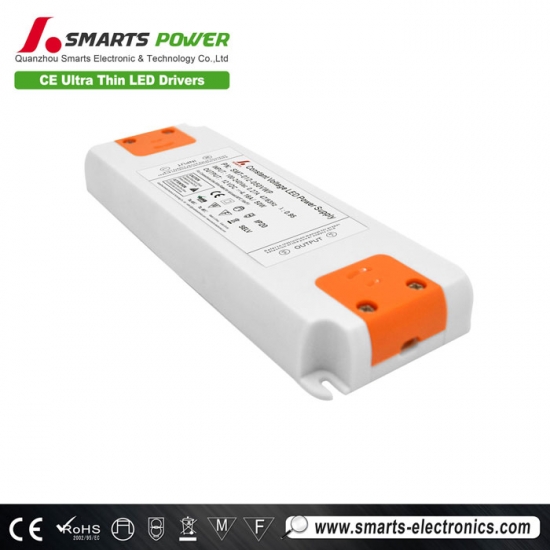

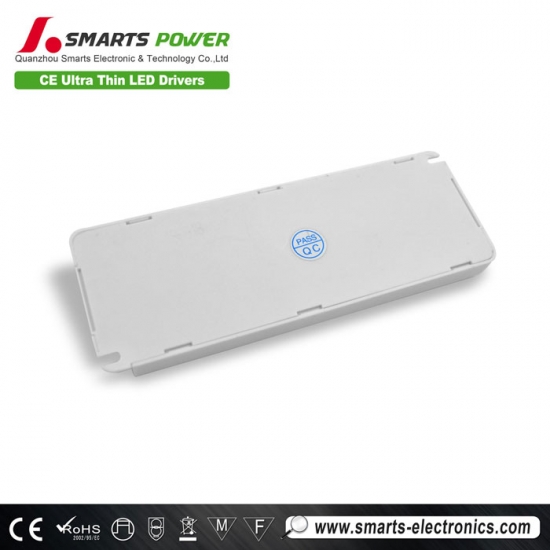

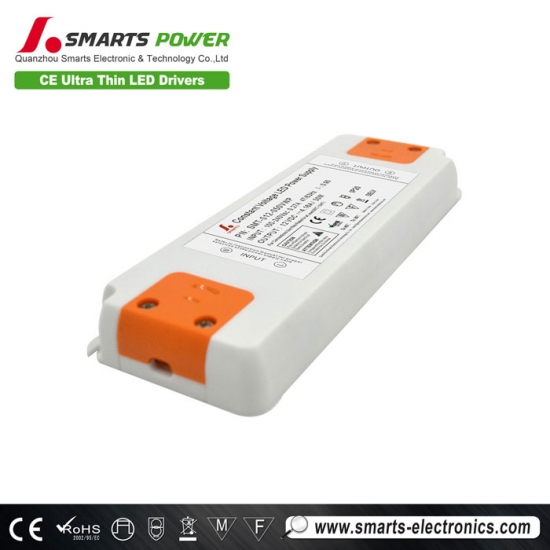

3 years warranty super mini constant voltage 12v 50w led driver

Super slim 12v mini led driver with plastic housing, follow EMC and LVD of CE compliant.
  • item no.:

    SMT-012-050VWP
  • brand:

    SMARTS
  • Input Voltage:

    100-240VAC
  • Output Voltage:

    12v
  • Output Current:

    4.16A
  • Working Mode:

    CV
  • Certification:

    CE ROHS
  • Warranty:

    3 years
inquiry now
product details

3 years warranty super mini constant voltage 12v 50w led driver


12v 50w led driver with plastic housing, 3 years warranty high PF >:0.95, efficency >85%, EN61347-1;EN61347-2-13; CE /ROHS approval.


  Product video


  Label


50w led driver


  Specification


MODEL SMT-012-050VWP SMT-024-050VWP
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 4.2Amp 2.1Amp
VOLTAGE RANGE 0-4.2A 0-2.1A
RATED POWER 50Watt 50Watt
RIPPLE&NOISE(max) 300mV 300mV
VOLTAGE TOLERANCE ±5% ±5%
LINE REGULATION ±1% ±1%
LOAD REGULATION ±2% ±2%
INPUT VOLTAGE RANGE 100-265VAC 100-265VAC
FREQUENCY RANGE 47-63Hz 47-63Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) >83% >83%
AC CURRENT(Typ.) 0.57A/110VAC, 0.28A/220VAC
PROTECTION SHORT CIRCUIT Protection type:recovers automatically after condition is removed
OVER CURRENT overload protected@145-160% above peak rating
OVER LOAD 4.8A 2.5A
OVER VOLTAGE Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -10~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS EN61347-1;EN61347-2-13; UL /CE /ROHS approval
WITHSTAND VOLTAGE I/P-O/P:2KVAC  I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards EN55015;EN61000-3-2;EN61000-3-3;
EN61547;EN61000-4-2,3,4,5,6,8,11;
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



  Mechanical Specification

50w led driver


  High efficiency


For power supply installed in the structure of the lamp is particularly important because the LED luminous efficiency with the LED temperature rise and down, so the LED heat is very important. High efficiency, its power consumption is small, the heat in the lamp is small, it will reduce the temperature rise of the lamp, to delay the LED light failure beneficial.
