waterproof 24v 2a ETL CE class 2 led power supply for outdoor

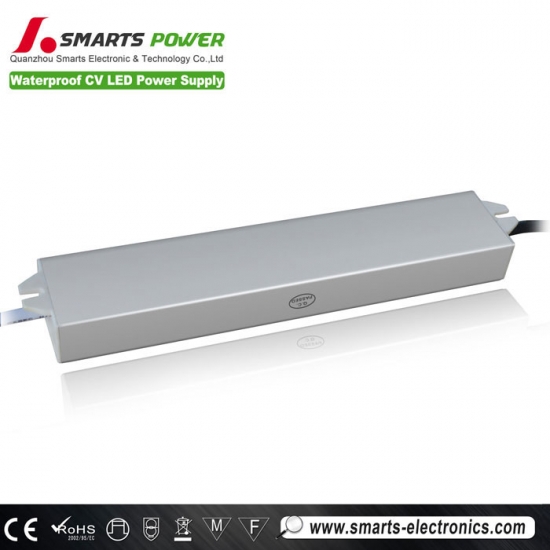

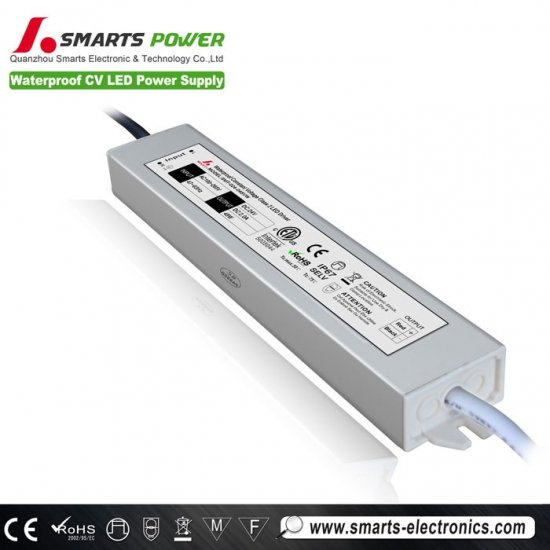

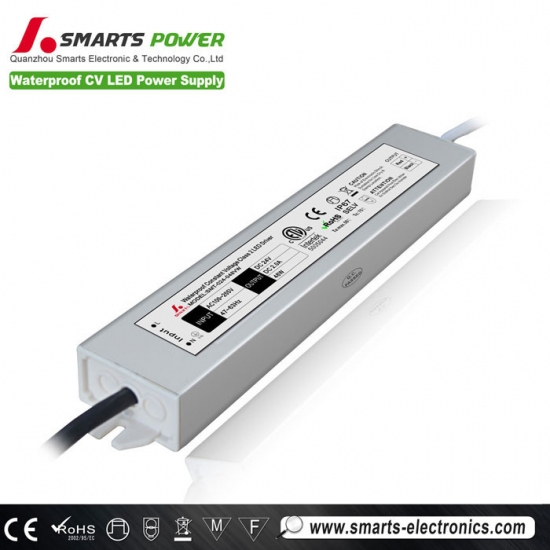

waterproof 24v 2a ETL CE class 2 led power supply for outdoor is high quality led driver, slim size 257*29*21mm can be used in mirror application, waterproof ip67 for outdoor use, with CE ETL ROHS approval.
SPECIFICAION
MODEL
SMT-012-048VW
SMT-024-048VW
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
4.0A
2.0A
CURRENT RANGE
0~4.0A
0~2.0A
RATED POWER
48W
48W
RIPPLE&NOISE(max)
120mVp-p
200mVp-p
voltage TOLERANCE
12V±5%
24V±5%
SETUP RISE TIME
60ms/110VAC
60ms/110VAC
HOLD UP TIME(Typ.)
20ms/230VAC
10ms/110VAC
INPUT
VOLTAGE RANGE
100~265Vac
100~265Vac
FREQUENCY RANGE
50~60Hz
50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
﹥83%
﹥84%
AC CURRENT(Typ.)
0.45A/110V, 0.25A/220V
0.45A/110V,0.25A/220V
INRUSH CURRENT (Typ.)
COLD START 30A/110~220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@110%~150% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-25~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~90% RH non condensing, refer to IP67
Vibration
10~500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
IP67 approved; Design refer to LVD EN61347-2-13:2005,EN61347-1:2008
WITHSTAND VOLTAGE
I/P-O/P:3KVAC, I/P-COVER: 3KVAC , O/P-COVER:500VAC
EMC Test Standards
EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:20
MTBF
50KHours (25℃)
NOTE
1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Label
Specifications
- Input:100~265vAC / 47-63HZ
- item no: SMT-024-048VW
- Output : 24V @2A 48W
- Working mode: Constant voltage
- Energy transfer: AC-DC
- Efficiency: 82%
- RippleI & Noise (max.) : 150mVp-p
- Voltage Tolerance : ±5%
- Line Regulation : ±1%
- Load Regulation : ±2%
- Case material: Aluminum housing
- Waterproof rate: IP67
- Produt cord:connecting terminal(IP20) / 18AWG*20CM
- CE, ETL, ROHS approval
- 2 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting
- Brand electrotronic components.
- ROHS material.
Environment
- Working temp: -30~+50℃ (Refer to output load derating curve)
- Working humidity: 20~99% RH non-condensing(Waterproof)
- Storage temp. humidity: -40~+80℃,10~99%RH
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Product parameters
Model |
Input voltage(AC V) |
Working Frequency (Hz) |
Output voltage (DC V) |
Output Current |
Output power (DC W) |
Working Temp. |
Protection grade |
SMT-012-048VW |
100-265V |
47~63Hz |
12v |
4A |
48W |
-25~50°C |
IP67 |
SMT-024-048VW |
100-265V |
47~63Hz |
24v |
2A |
48W |
-25~50°C |
IP67 |
SMT-036-048VW |
100-265V |
47~63Hz |
36v |
1.33A |
48W |
-25~50°C |
IP67 |
SMT-048-048VW |
100-265V |
47~63Hz |
48v |
1A |
48W |
-25~50°C |
IP67 |
Applications
Our products are widely used in various industries, such as
- indoor LED illuminating lights,
- LED Neon,
- LED urban Decoration
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights,
- Controller Panels, etc
