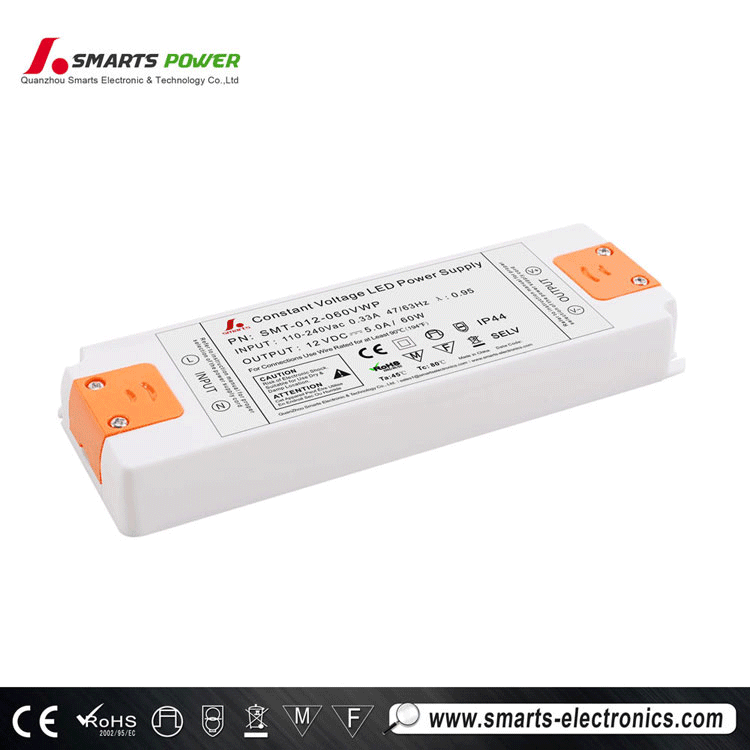

This led power supply 5 amp is a reliable power source for LED strips and any other devices with power less than 60W and running voltage at 12V (DC). Its IP40 NON-waterproof rating with super slim size and suitable for the LED Light projects which have space limited. One of its most popular applications is to power flexible LED strip lights and Mirror LED Lights.
|
Details for led power supply 5 amp |
Features |
 |
● IP20 design for indoor installations ● Protections:Short circuit/Overload/Over temperature ● Cooling by free air convection ● 100% full load burn-in test ● Suitable for LED lighting ● Products through CE,RoHS Certification ● 2 years warranty / 3 years warranty with High PF>0.95 |
Product video

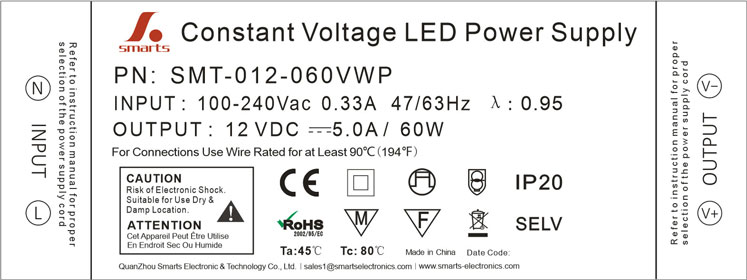

Label
Specifications for 240 volt led power supply
| MODEL | SMT-012-060VWP | SMT-024-060VWP |
|
|
|
| OUTPUT | DC VOLTAGE | 12V | 24V |
|
|
| RATED CURRENT | 5.0Amp | 2.5Amp |
|
|
|
| VOLTAGE RANGE | 0-5.0A | 0-2.5A |
|
|
|
| RATED POWER | 60Watt | 60Watt |
|
|
|
| RIPPLE&NOISE(max) | 300mV | 300mV |
|
|
|
| VOLTAGE TOLERANCE | ±5% | ±5% |
|
|
|
| LINE REGULATION | ±1% | ±1% |
|
|
|
| LOAD REGULATION | ±2% | ±2% |
|
|
|
| INPUT | VOLTAGE RANGE | 100-265VAC | 100-265VAC |
|
|
| FREQUENCY RANGE | 47-63Hz | 47-63Hz |
|
|
|
| POWER FACTOR(Typ.) |
|
|
|
|
|
| EFFICIENCY(Typ.) | ﹥83% | ﹥83% |
|
|
|
| AC CURRENT(Typ.) | 0.69A/110VAC, 0.34A/220VAC |
|
|
||
| PROTECTION | SHORT CIRCUIT | Protection type:recovers automatically after condition is removed | |||
| OVER CURRENT | overload protected@145-160% above peak rating | ||||
| OVER LOAD | 5.7A | 3.2A |
|
|
|
| OVER VOLTAGE | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -10～+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20～99% RH non-condensing | ||||
| STORAGE TEMP.,HUMIDITY | -40～+80℃,10～99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13; CE /ROHS approval | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3; | ||||
| EN61547;EN61000-4-2,3,4,5,6,8,11; | |||||
 |
 |
 |
 |
Noted for led power supply 5 amp
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.

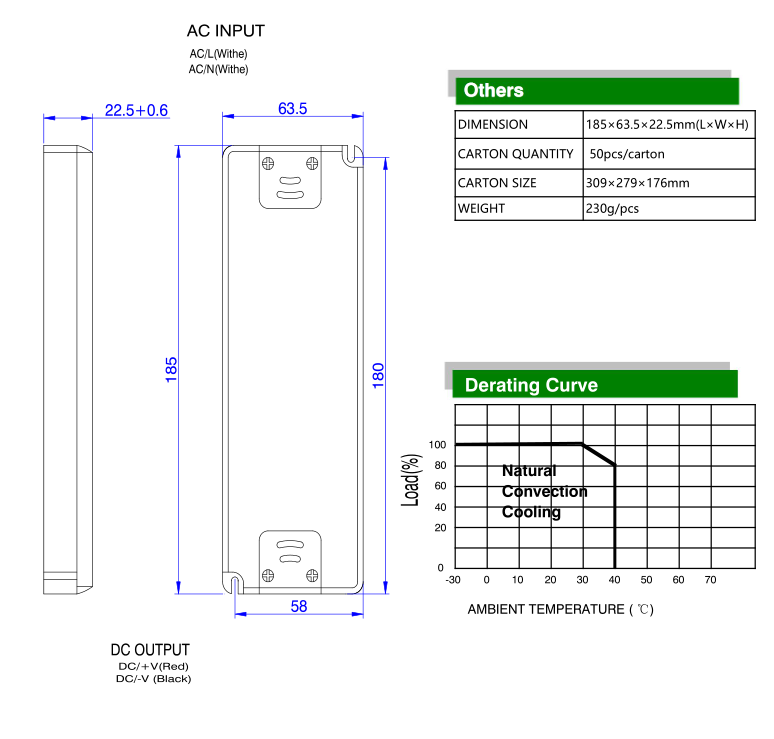

Mechanical Specification for 240 volt led power supply
