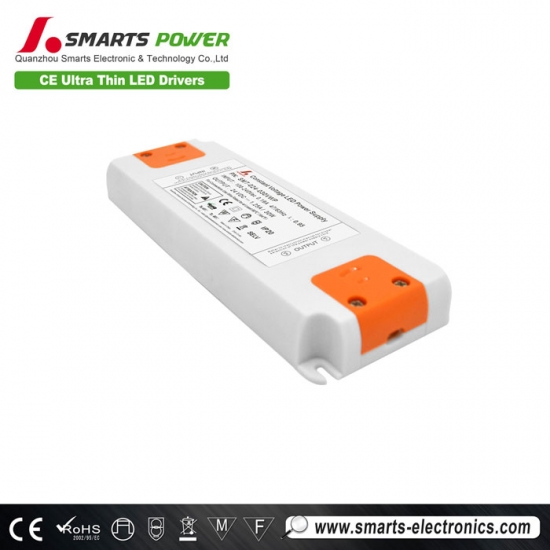

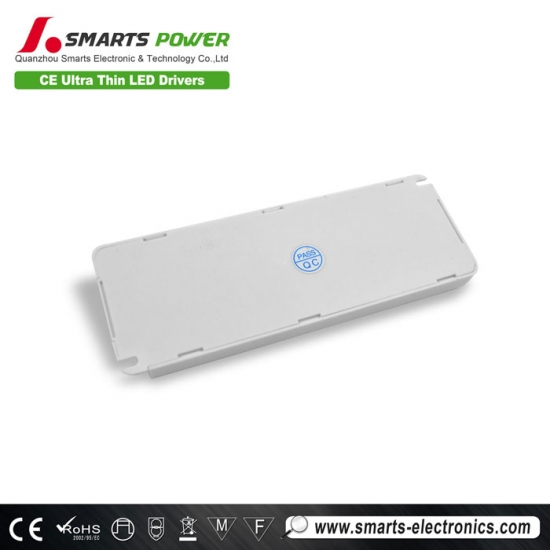

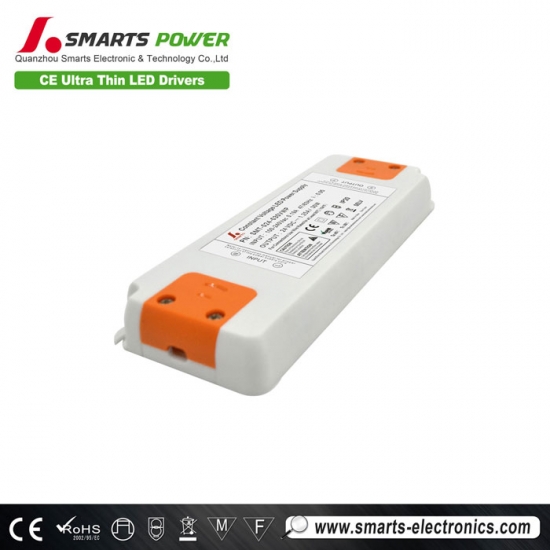

Super slim 160*57.6*19mm dimension, 220v 230v input voltage to 12volt 24volt 30watt class 2 led driver/led power supply.
Specification
| MODEL | SMT-012-030VWP | SMT-024-030VWP | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 1.5Amp | 1.25Amp | |
| VOLTAGE RANGE | |||
| RATED POWER | 30Watt | 30Watt | |
| RIPPLE&NOISE(max) | 300mV | 300mV | |
| VOLTAGE TOLERANCE | ±5% | ±5% | |
| LINE REGULATION | ±1% | ±1% | |
| LOAD REGULATION | ±2% | ±2% | |
| INPUT | VOLTAGE RANGE | 100-265VAC | 100-265VAC |
| FREQUENCY RANGE | 47-63Hz | 47-63Hz | |
| POWER FACTOR(Typ.) | |||
| EFFICIENCY(Typ.) | >83% | >84% | |
| AC CURRENT(Typ.) | 0.31A/110VAC, 0.17A/220VAC | ||
| PROTECTION | SHORT CIRCUIT | Protection type:recovers automatically after condition is removed | |
| OVER CURRENT | overload protected@145-160% above peak rating | ||
| OVER VOLTAGE | Protection type:Shut down o/p voltage,re-power on to removed | ||
| ENVIRONMENT | WORKING TEMP. | -10~+50℃ (Refer to output load derating curve) | |
| WORKING HUMIDITY | 20~99% RH non-condensing | ||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13; UL /CE /ROHS approval | |
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3; | ||
| EN61547;EN61000-4-2,3,4,5,6,8,11; | |||
 |
 |
 |
 |
Label
Mechanical Specification
Constant voltage led power supply?
Constant voltage LED driver are designed for a single direct current (DC) output voltage. Most common constant voltage drivers (or LED Power Supplies) are 12Vdc or 24Vdc. It is ideal for paralleled LED lighting arrays because they generally have a resistor in built to control the current, therefore a constant voltage led driver would be required to convert the AC power to the required DC voltage.
