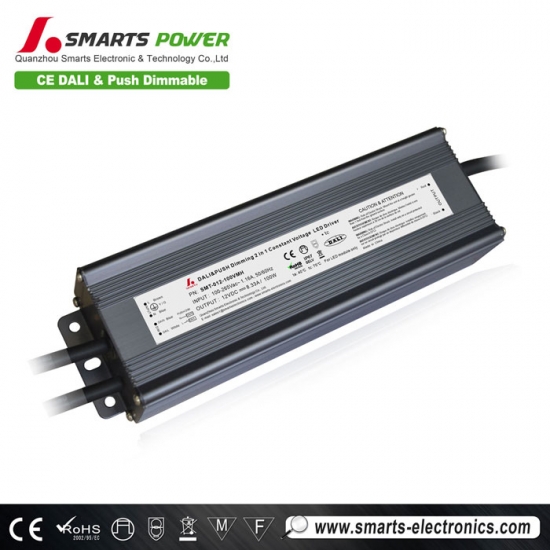

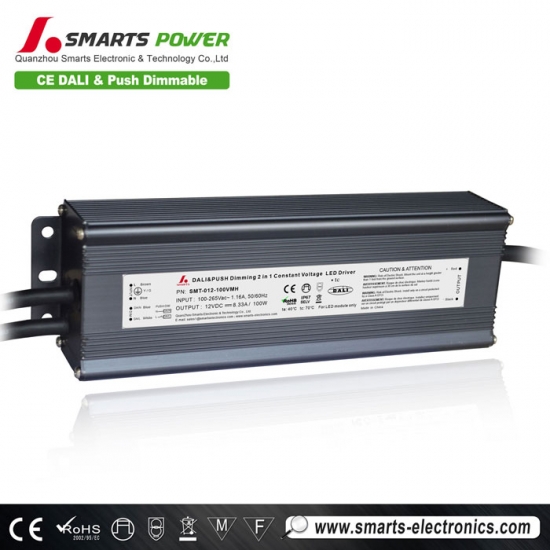

CE listed ac dc power supply 100W 24V DALI dimmable led driver
Specification of 24v dali led driver
|
Model |
SMT-012-100VMH |
SMT-024-100VMH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
|
Voltage Accuracy |
±0.5V |
|
|
|
Rated current |
0～8.3A |
0～4.0A |
|
|
Rated power |
100W |
96W |
|
Input |
Voltage Range |
110-277VAC |
|
|
|
Frequency Range |
50～60HZ |
|
|
|
Power Factor ( Typ.） |
PF≧0.95/100VAC, PF≧0.97/277VAC |
|
|
|
Full Load Efficiency（Typ.） |
>88%(110VAC), >91%(277VAC), |
>88%(110VAC), >92%(277VAC), |
|
|
AC Current(Typ.) |
0.950A(110,277V) |
1.030A(110,277V) |
|
|
Leakage current |
﹤0.70mA/110, ﹤0.77mA/277VAC |
|
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|
|
|
Over Current |
≦1.4*I out |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
|
|
Environment |
Working TEMP. |
-40～+50℃ |
|
|
|
Working Humidity |
20～95%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13, IP67 |
|
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|
|
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
|
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level （surge4KV） |
|
|
Others |
Weight |
1.3Kg |
|
|
|
Size |
230*69*45mm（L*W*H） |
|
|
|
packing |
355*215*215mm/10pcs/CTN 240*70*50 mm for inner box |
|
|
Not es |
1. All parameters NOT specially mentioned are measured at 110V, 277VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |

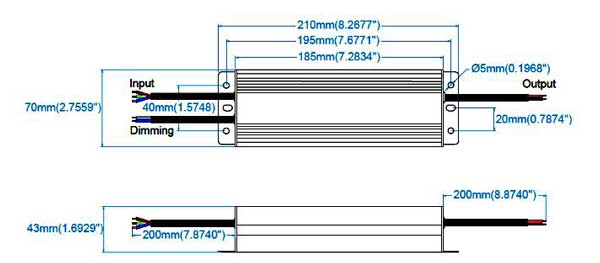

Mechanical Specification
Input & Output wiring
(1) l Input Rubber cable 3*1.0mm², the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N)
(2) l Output rubber cable 2*1.0mm² , Red is output ( V+) Positive,Black is output (V-) negative. Connected to LED Lamps.
Dimming wiring
(2) Blue (N) and Brown (L) connect to AC (N) and Push dim switch dimmer( L) when use Push function.
lPlease make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Note: Any other requests we can customize.
