Non-dimmable LED Driver

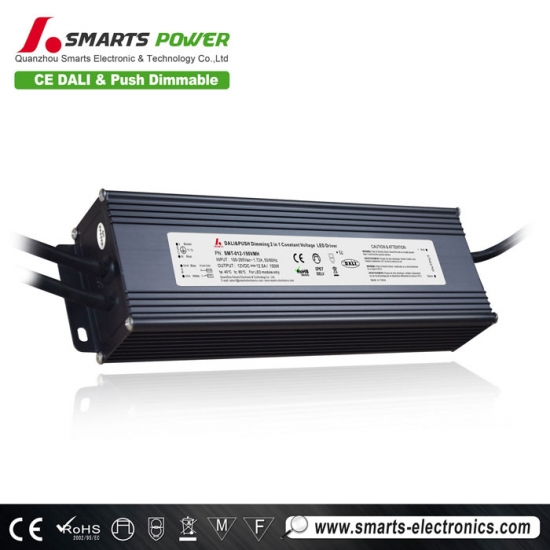

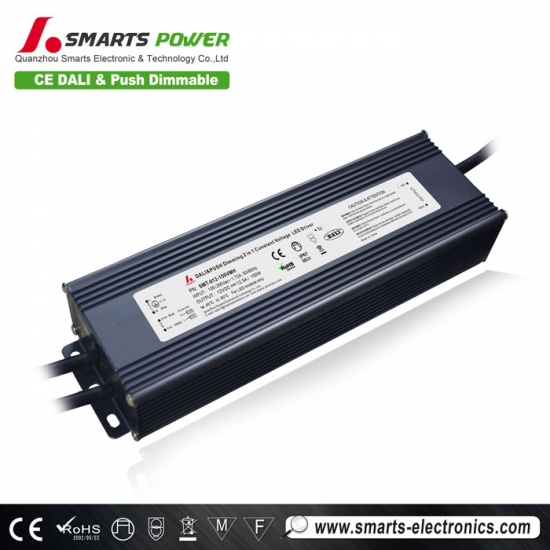

CE waterproof DALI dimmable led driver 12v 150w

DALI dimmable led driver 12v 150w which paried with Jbox avlaibale. 0-100% dimming range and no load limitation. High qualith with PF>0.9, efficiency>0.98.
  • item no.:

    SMT-012-150VMH
  • brand:

    SMARTS
  • Input Voltage:

    100-265V
  • Output Voltage:

    12V
  • Output Current:

    12.5A
  • Working Mode:

    CV
  • Certification:

    CE FCC ROHS
  • Warranty:

    5
inquiry now
product details

CE waterproof DALI dimmable led driver 12v 150w

Smarts electronic has launched a new series DALI dimmable led driver which has got and 110-265v input voltage, high PF>0.9 and high efficiency>0.98.


  Specification


Model

SMT-012-150VMH

SMT-024-150VMH

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Rated current

12.5A

6.25A

Rated power

150W

Load Regulation

±0.2%

Input

Voltage Range

100-265VAC

Frequency Range

47 - 63Hz

Power FactorTyp.@ full load

PF0.99 / 120VAC  PF0.96/ 230VAC  (Full loading)

THDTyp.@ full load

<20%

Efficiency(Typ.)@ full load

88%

88%

AC CurrentMax.

1.72A

1.72A

Inrush Current Typ.

16A/120VAC  56A/230VAC

Leakage current

<0.5mA

Protection

Short Circuit

constant current mode, recover automatically after fault condition is removed

Over Load

≤120% constant current limiting, recover automatically after fault condition is removed

Over temperature

100℃±10℃  Shut down o/p voltage, recovers automatically after temperature goes down

Protection Class

Environment

Working TEMP.

-40+60℃ (see below derating curve)

Working Humidity

20 - 95%RH ,non-condensing

Storage TEM.,Humidity

-40 - +80℃10 - 95%RH

TEMP.coefficient

±0.03%/℃0 - 50℃

Vibration

10500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13 IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25℃/70%RH

EMC Emission

EN55015   EN61000-3-2 ,EN61000-3-3

EMC Immunity

EN61000-4-2,3,4,5,6 ,11,   EN61547

Others

Weight

1.2Kg

Dimension

245*70*43mmL*W*H

packing

320*270*170mm/10pcs /CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Features


  • Input Voltage Range 110-265VAC
  • Built-in PFC function, PF>0.92

  • Efficiency>88%

  • Protections:short circuit/over current/over temperature

  • Cooling by free air convection

  • IP67 design for indoor or outdoor installation .
  • Dimming function:better compatibility DALI dimming
  • Suitable for LED lighting applications by PWM output

  • Compliance to worldwide safety regulations for lighting

  • Suitable for dry/damp/wet locations

  • 5 years warranty


  Specification


  • Paried with Jbox avlaibale
  • Model Number: SMT-012-150VMH
  • Input Voltage: 100-265V AC (47/63Hz)
  • Output Voltage: 12V DC
  • Max Load: 150 Watts
  • Dimming: DALI
  • Max Ambient Temp.: -40°F to 194°F (-40°C to 90°C)
  • Avg. Efficiency: 95%
  • Ratings:  CE, RoHS, & IP67
  • Warranty: 5 Year Limited

  Dimming Operation



  • Connect DALI driver signal cable with DALI dimmers, then dim after controller scan and assign address

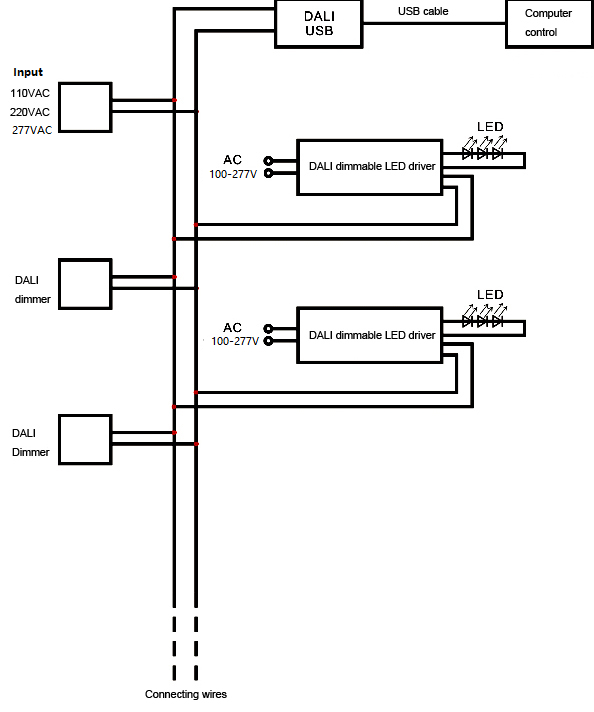

  Connection solution
