Triac/ Phase Dimming:
There are two types of Triac/ Phase Dimming: Leading Edge Dimming and Trailing Edge Dimming. Leading Edge dimming is sometimes called Forward Phase or TRIAC dimming. Trailing Edge dimming is sometimes called Reverse Phase or Electronic Low Voltage Dimming. There is a massive installed base of phase dimmers which is why they are so popular. There are no additional wires on a Phase Dimming driver. The dimmer is wired in line with the output of the driver. Smarts Electronics offers two series Triac Dimmable Led Driver. VT series and VTH series.

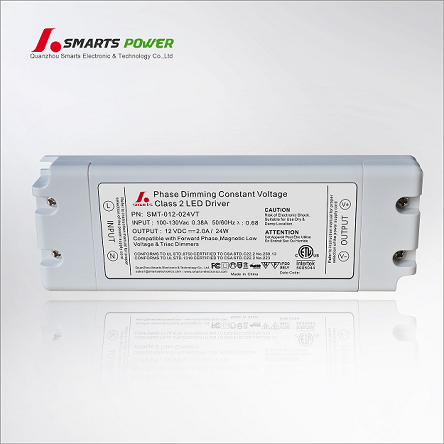

1. VT SERIES: 100-130vac dimmable led driver.
5 years warranty
ETL FCC Rohs listed
no min load limintation
with Junction Box
with PWM output

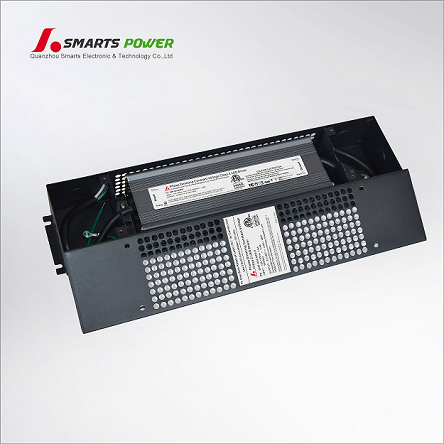

VTH SERIES: 100-305vac dimmable led driver
7 years warranty
UL FCC CE Rohs listed
High PF>0.99 & High efficiency>0.87
with Junction Box

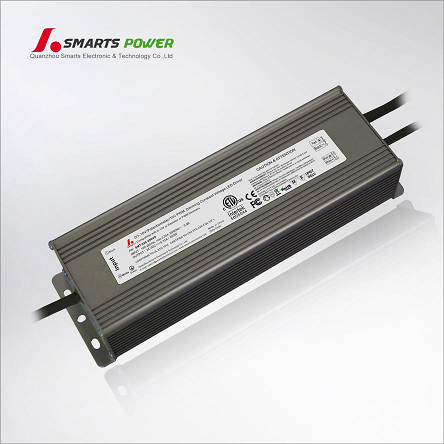

This dimming type is used in most new construction and commercial applications. Smarts Electronics’s 0-10v dimmable LED driver compatible with most 0-10v/1-10V/PWM analog dimmers from; Lutron, Clipsal, Dynalite, etc. Each unit is backed by our 3 years warranty,ETL FCC CE RoHS approved and allows you the extra benefit of flicker free dimming.
DALI is an acronym for "Digital Addressable Lighting Interface", which translates to "Digital Addressable Lighting Interface". It is an international public lighting control communication protocol, which stipulates the digital communication control mode between electronic ballast, control unit and various sensors. The Dali Dimmable Led Driver system is basically composed of master control, control, and bus power. The features of DALI system include: adopting the master slave architecture, a host can mount up to 64 machines.
