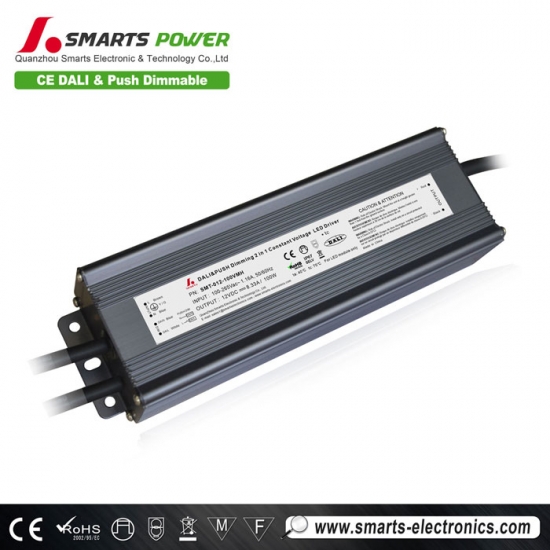

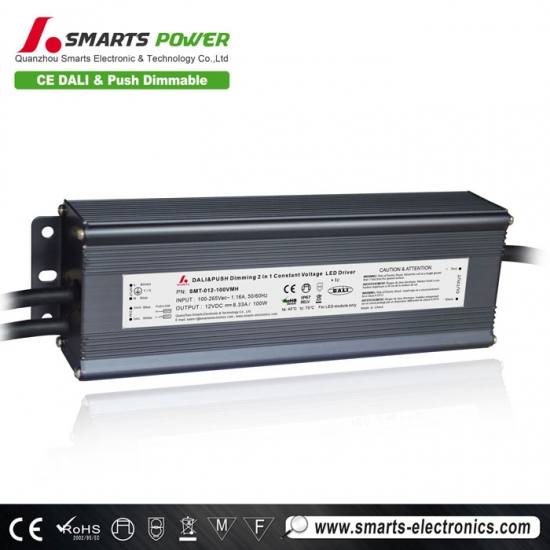

110-277V AC to DC 12 volt 100 watt DALI dimmable led driver
SMT-012-100VMH is 12Vdc 100W DALI dimmable led driver. For this model we designed it with high quality version. 7 years warranty, FCC CE ROHS listed. high PF>0.9 & high Efficiency>88%. waterproof IP67 verson, paired with junction box.
Model
SMT-012-100VMH
SMT-024-100VMH
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Rated current
8.33A
4.16A
Rated power
100W
Load Regulation
±0.2%
Input
Voltage Range
100-265VAC
Frequency Range
47 - 63Hz
Power Factor（Typ.）@ full load
PF≥0.99 / 120VAC PF≥0.98/ 230VAC (Full loading)
THD（Typ.）@ full load
<15%
Efficiency(Typ.)@ full load
87%
86%
AC Current（Max.）
1.16A
1.17A
Inrush Current （Typ.）
13.2A/120VAC 59A/230VAC
Leakage current
<0.5mA
Protection
Short Circuit
constant current mode, recover automatically after fault condition is removed
Over Load
≤120% constant current limiting, recover automatically after fault condition is removed
Over temperature
100℃±10℃
Shut down o/p voltage, recovers automatically after temperature goes down
Protection Class
Ⅰ
Environment
Working TEMP.
-40～+60℃ (see below derating curve)
Working Humidity
20 - 95%RH ,non-condensing
Storage TEM.,Humidity
-40 - +80℃，10 - 95%RH
TEMP.coefficient
±0.03%/℃（0 - 50℃）
Vibration
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 IP67
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
EMC Emission
EN55015 EN61000-3-2 ,EN61000-3-3
EMC Immunity
EN61000-4-2,3,4,5,6 ,11, EN61547
Others
Weight
1.1Kg
Dimension
210*70*43mm（L*W*H）
packing
340*275*170mm/10pcs /CTN
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
 |
 |
 |
 |

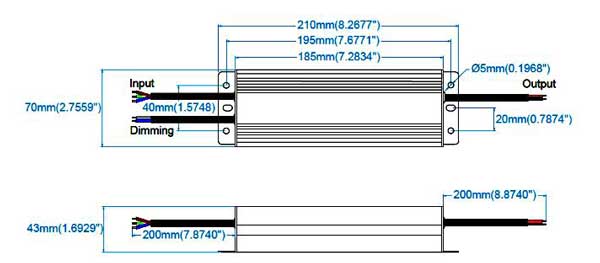

Mechanical Specification
