CV waterproof IP67 120W dali dimmable led driver 24v 5amp
Features for led driver 24v
world wide input voltage range: 110-265Vac
High PF>0.9
High Efficiency>88%
Longer warranty period: 7 years
PWM output , No minimum load limitation
Specification for led driver 24v
SMT-024-120VMH
Input: 110-277Vac/47-63Hz
Output:12vdc 4A 120w
Efficiency: >88%
PFC> 0.9
Dimension: 230*68*45mm
Case material: Aluminum
Waterproof Rate: IP67
5 years warranty
Certificate:CE, ROHS
Specification
Model |
SMT-012-120VMH |
SMT-024-120VMH |
|
Output |
DC Voltage |
12V |
24V |
Voltage Tolerance |
±0.5V |
||
Voltage Regulation |
±0.5% |
||
Rated current |
10A |
5A |
|
Rated power |
120W |
||
Load Regulation |
±0.2% |
||
Input |
Voltage Range |
100-265VAC |
|
Frequency Range |
47 - 63Hz |
||
Power Factor(Typ.)@ full load |
PF≥0.99 / 120VAC PF≥0.98/ 230VAC (Full loading) |
||
THD(Typ.)@ full load |
<15% |
||
Efficiency(Typ.)@ full load |
86% |
86% |
|
AC Current(Max.) |
1.41A |
1.41A |
|
Inrush Current (Typ.) |
13.2A/120VAC 59A/230VAC |
||
Leakage current |
<0.5mA |
||
Protection |
Short Circuit |
constant current mode, recover automatically after fault condition is removed |
|
Over Load |
≤120% constant current limiting, recover automatically after fault condition is removed |
||
Over temperature |
100℃±10℃ Shut down o/p voltage, recovers automatically after temperature goes down |
||
Protection Class |
Ⅰ |
||
Environment |
Working TEMP. |
-40~+60℃ (see below derating curve) |
|
Working Humidity |
20 - 95%RH ,non-condensing |
||
Storage TEM.,Humidity |
-40 - +80℃,10 - 95%RH |
||
TEMP.coefficient |
±0.03%/℃(0 - 50℃) |
||
Vibration |
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 IP67 |
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
||
EMC Emission |
EN55015 EN61000-3-2 ,EN61000-3-3 |
||
EMC Immunity |
EN61000-4-2,3,4,5,6 ,11, EN61547 |
||
Others |
Weight |
1.1Kg |
|
Dimension |
210*70*43mm(L*W*H) |
||
packing |
340*275*170mm/10pcs /CTN |
||
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |

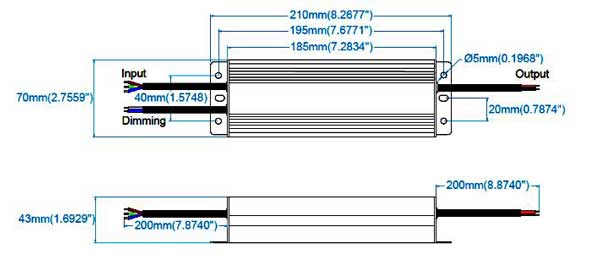

Mechanical Specification
