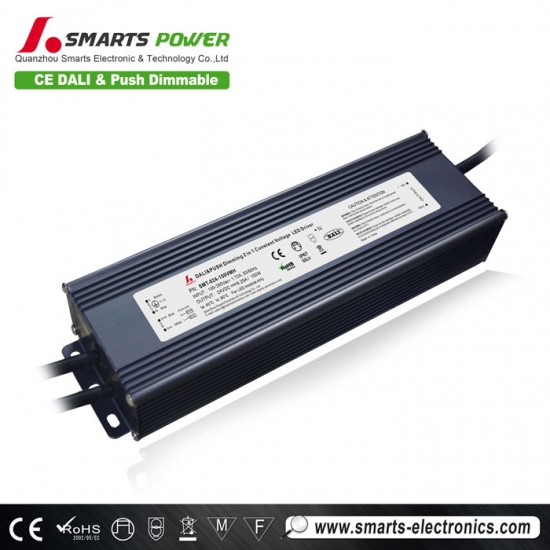

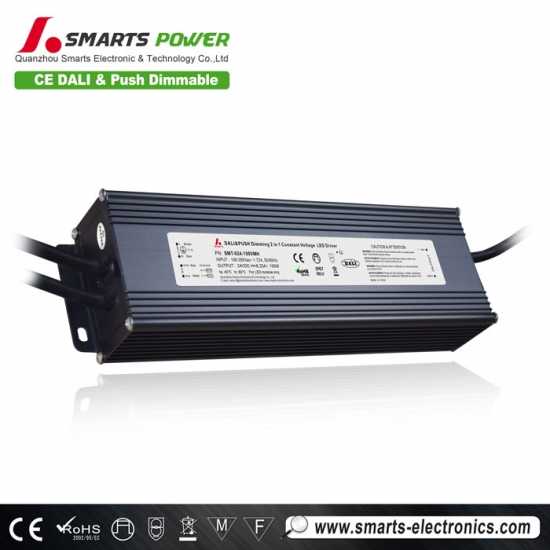

waterproof 24v 150w DALI dimming led driver
Smarts electronic series of DALI dimming led driver with high input voltage in 265v, 24v output constant voltage and is better compatibility DALI dimming, suitable for LED lighting applications by PWM output. IP67 waterproof led driver for indoor or outdoor installation
Specification
Model
SMT-012-150VMH
SMT-024-150VMH
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Rated current
12.5A
6.25A
Rated power
150W
Load Regulation
±0.2%
Input
Voltage Range
100-265VAC
Frequency Range
47 - 63Hz
Power Factor（Typ.）@ full load
PF≥0.99 / 120VAC PF≥0.96/ 230VAC (Full loading)
THD（Typ.）@ full load
<20%
Efficiency(Typ.)@ full load
88%
88%
AC Current（Max.）
1.72A
1.72A
Inrush Current （Typ.）
16A/120VAC 56A/230VAC
Leakage current
<0.5mA
Protection
Short Circuit
constant current mode, recover automatically after fault condition is removed
Over Load
≤120% constant current limiting, recover automatically after fault condition is removed
Over temperature
100℃±10℃
Shut down o/p voltage, recovers automatically after temperature goes down
Protection Class
Ⅰ
Environment
Working TEMP.
-40～+60℃ (see below derating curve)
Working Humidity
20 - 95%RH ,non-condensing
Storage TEM.,Humidity
-40 - +80℃，10 - 95%RH
TEMP.coefficient
±0.03%/℃（0 - 50℃）
Vibration
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 IP67
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
EMC Emission
EN55015 EN61000-3-2 ,EN61000-3-3
EMC Immunity
EN61000-4-2,3,4,5,6 ,11, EN61547
Others
Weight
1.2Kg
Dimension
245*70*43mm（L*W*H）
packing
320*270*170mm/10pcs /CTN
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

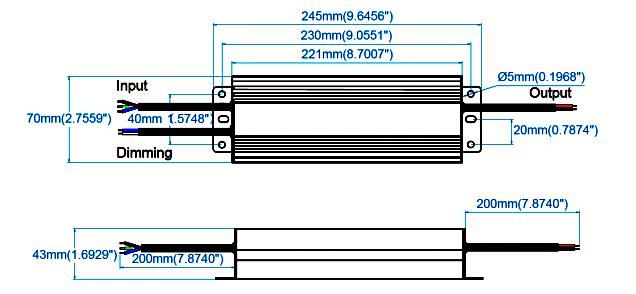

Mechanical Specification

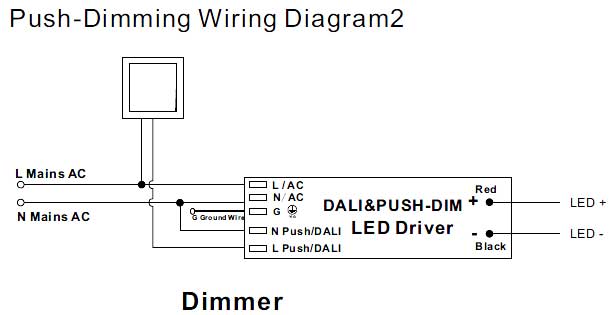

Dimming wiring
(1) Dimming Rubber cable 2*0.75mm², Blue DA/N and White DA/L (No polar) connected to the DALI BUS when use DALI function .
Blue (N) and Brown (L) connect to AC (N) and Push dim switch dimmer( L) when use Push function.
(2) Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. Note: Any other requests we can customize.
