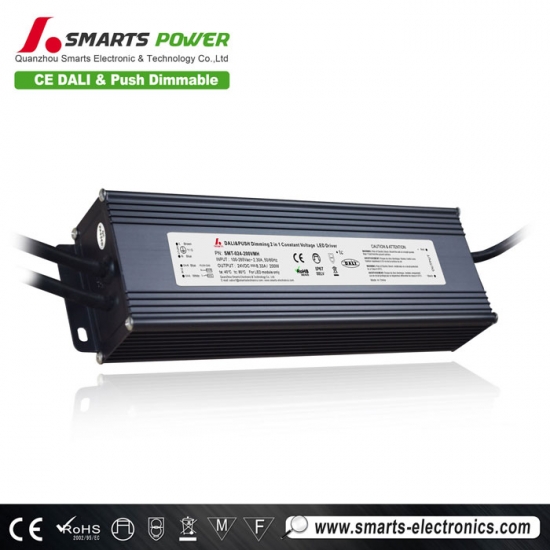

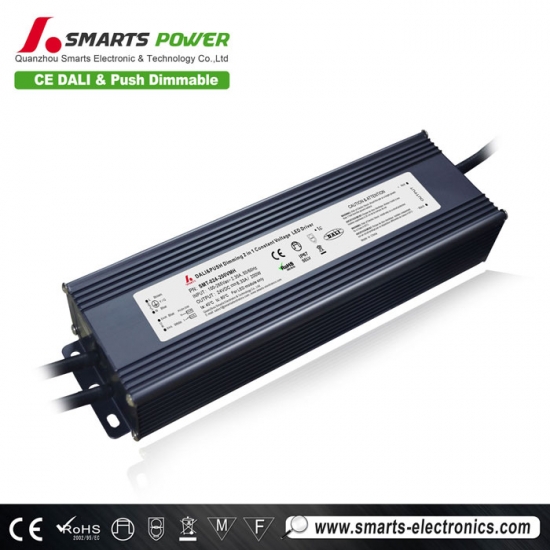

CE Rohs 200 watt 265vac 24vdc dali dimmable led driver

Model

SMT-012-200VMH

SMT-024-200VMH

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Rated current

16.6A

8.33A

Rated power

200W

Load Regulation

±0.2%

Input

Voltage Range

100-265VAC

Frequency Range

47 - 63Hz

Power Factor（Typ.）@ full load

PF≥0.99 / 120VAC  PF≥0.97/ 230VAC  (Full loading)

THD（Typ.）@ full load

<20%

Efficiency(Typ.)@ full load

87%

88%

AC Current（Max.）

2.32A

2.30A

Inrush Current （Typ.）

16A/120VAC  56A/230VAC

Leakage current

<0.5mA

Protection

Short Circuit

constant current mode, recover automatically after fault condition is removed

Over Load

≤120% constant current limiting, recover automatically after fault condition is removed

Over temperature

100℃±10℃  Shut down o/p voltage, recovers automatically after temperature goes down

Protection Class

Ⅰ

Environment

Working TEMP.

-40～+60℃ (see below derating curve)

Working Humidity

20 - 95%RH ,non-condensing

Storage TEM.,Humidity

-40 - +80℃，10 - 95%RH

TEMP.coefficient

±0.03%/℃（0 - 50℃）

Vibration

10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13 IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH

EMC Emission

EN55015   EN61000-3-2 ,EN61000-3-3

EMC Immunity

EN61000-4-2,3,4,5,6 ,11, EN61547:2009

Others

Weight

1.2Kg

Dimension

245*70*43mm（L*W*H）

packing

320*270*170mm/10pcs /CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
