24w constant voltage power supply led driver 220v 12v

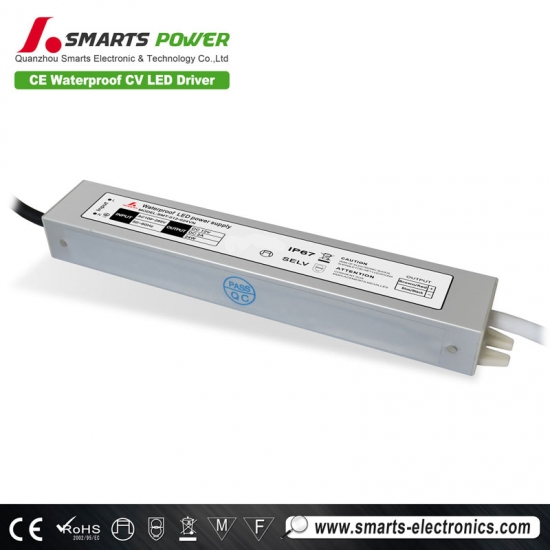

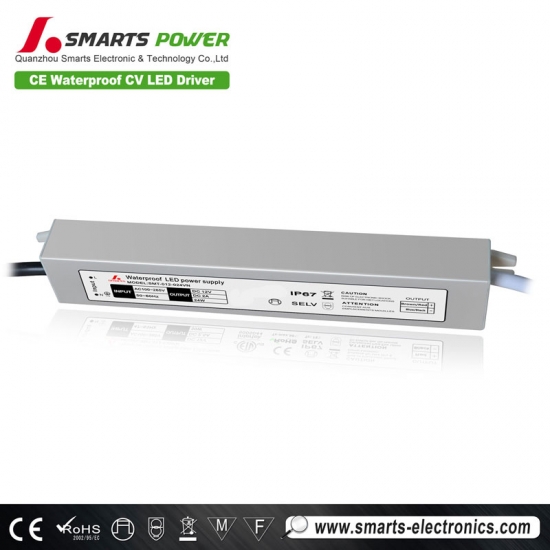

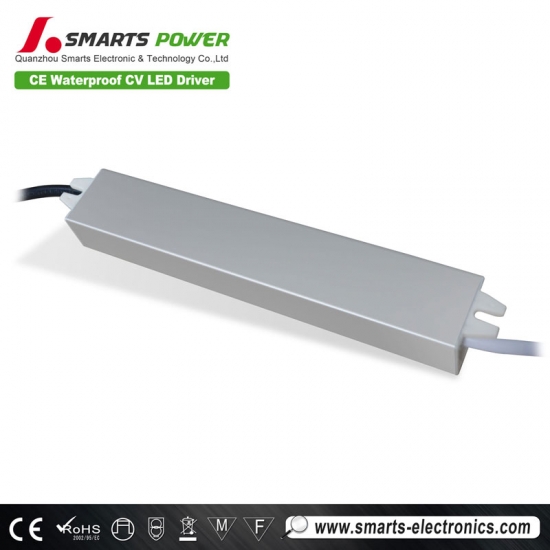

SMT-012-024VN is constant voltage driver.It is slim size led driver, height is 20mm, width is 29mm. The input voltage range is 100-265Vac, widely input voltage. It has very competitive price.
Specifications for constant voltage driver
SPECIFICAION | |||||
MODEL | SMT-012-024VN | SMT-024-024VN | SMT-036-026VN | ||
OUTPUT | DC VOLTAGE | 12V | 24V | 36V | |
RATED CURRENT | 2.0Amp | 1.0Amp | 0.66Amp | ||
CURRENT RANGE | |||||
RATED POWER | 24W | 24W | 24W | ||
RIPPLE&NOISE(max) | 150mV | 150mV | 150mV | ||
CURRENT TOLERANCE | ±0.5V | ±0.5V | ±0.5V | ||
SETUP RISE TIME | 80ms/110,220VAC | 81ms/110,220VAC | 82ms/110,220VAC | ||
HOLD UP TIME(Typ.) | 60ms/220VAC | 60ms/220VAC | 60ms/220VAC | ||
INPUT | VOLTAGE RANGE | 100~265VAC | |||
FREQUENCY RANGE | 50~60Hz | ||||
POWER FACTOR(Typ.) | |||||
EFFICIENCY(Typ.) | >83% | >83% | >83% | ||
AC CURRENT(Typ.) | 3.5A/110,220VAC | 2.0A/110,220VAC | 1.5A/110,220VAC | ||
INRUSH CURRENT (Typ.) | COLD START 50A/110~220VAC | ||||
PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
Overload | overload protected@145-160% above peak rating | ||||
Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||||
STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
NOTE |
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature. 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. 3.Tolerance:includes set up tolerance,line regulation and load regulation. |
||||
Label |
![]() |

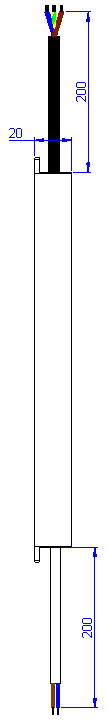

Mechanical Specification for constant voltage driver


DC/+V(Red)
DC/-V (Black)
