220v ac to dc 12v ip67 30w driver led power supply

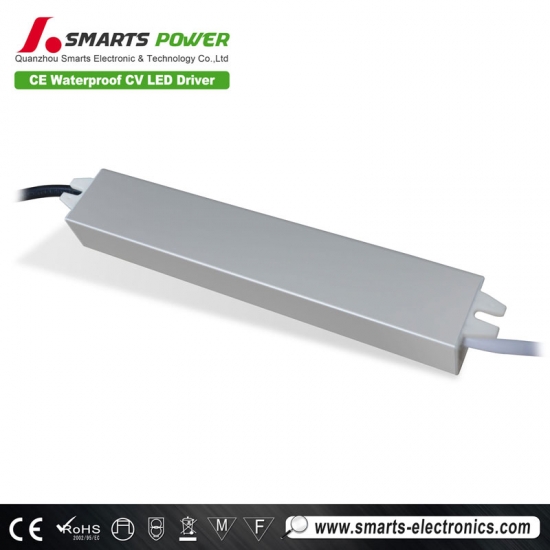

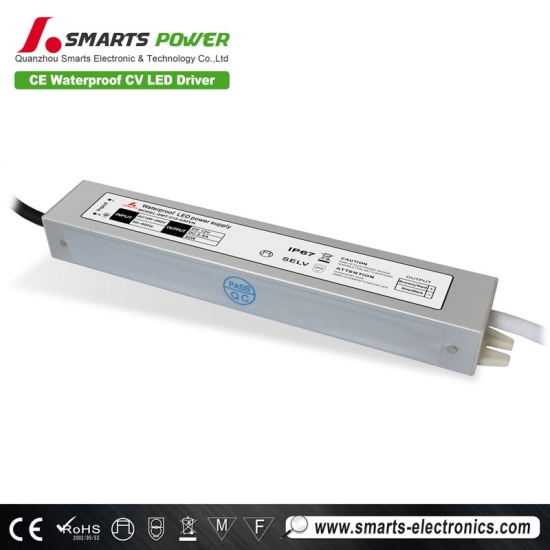

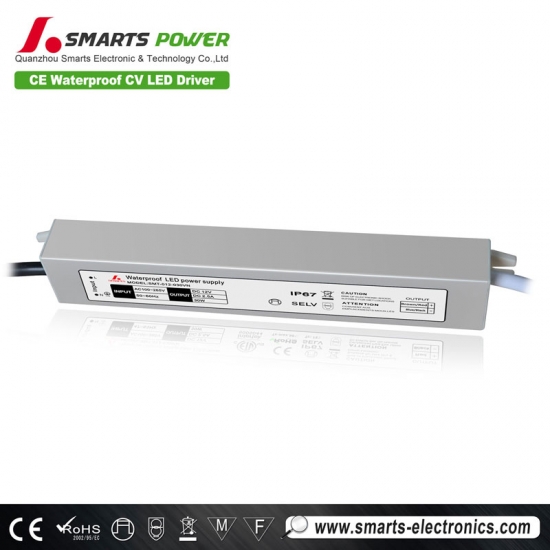

SMT-012-030VN is led driver 220v ac to 12v dc 30w. It only has one output cable. The warranty years is 2 years. It is IP67 waterproof led driver, it can be used in indoor and outdoor projects in dry, damp, wet location.
Specifications for led driver 220v
SPECIFICAION
MODEL
SMT-012-030VN
SMT-024-030VN
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
2.5A
1.25A
CURRENT RANGE
0~2.5A
0~1.25A
RATED POWER
30W
30W
RIPPLE&NOISE(max)
<240mV
<300mV
voltage TOLERANCE
12V±5%
24V±5%
VOLTAGE TOLERANCE
±0.5V
±0.5V
SETUP RISE TIME
80ms/110VAC
80ms/110VAC
HOLD UP TIME(Typ.)
60ms/110VAC
60ms/110VAC
INPUT
VOLTAGE RANGE
170~265Vac
170~265Vac
FREQUENCY RANGE
50~60Hz
50~60Hz
POWER FACTOR(Typ.)
no PFC
no PFC
EFFICIENCY(Typ.)
﹥83%
﹥84%
AC CURRENT(Typ.)
0.22A/220V
0.22A/220V
INRUSH CURRENT (Typ.)
COLD START 30A/110~220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
3.9A
2.0A
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards
NOTE
1.All parameters NOT specially mentoned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Label

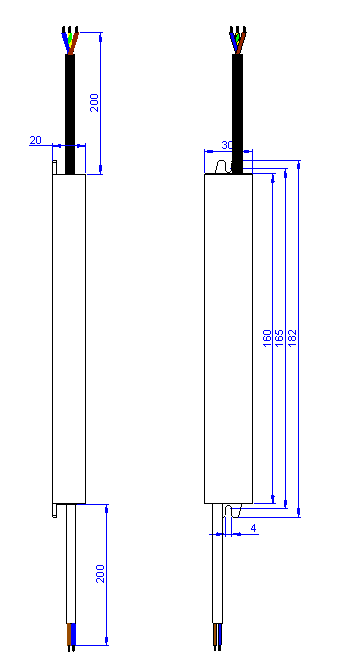

Mechanical Specification for led driver 220v
● IP67 design for indoor or outdoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● Slim shape, compact size
● 2 years warranty
