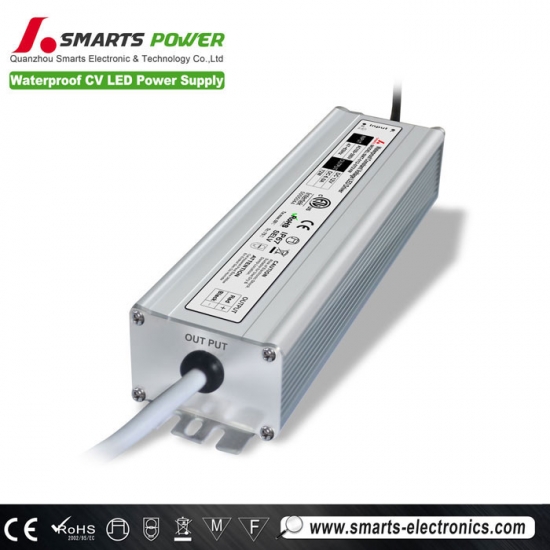

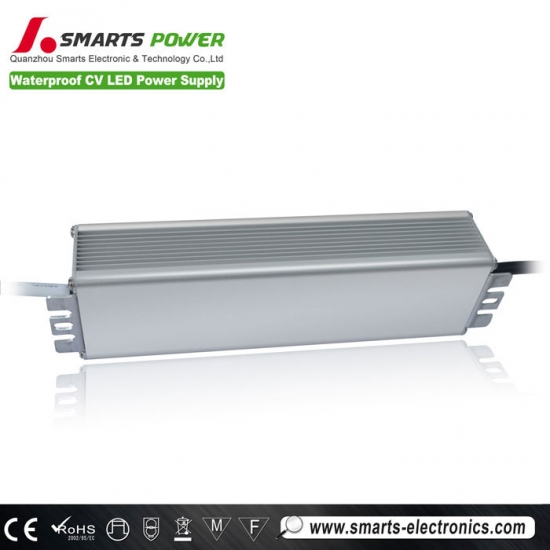

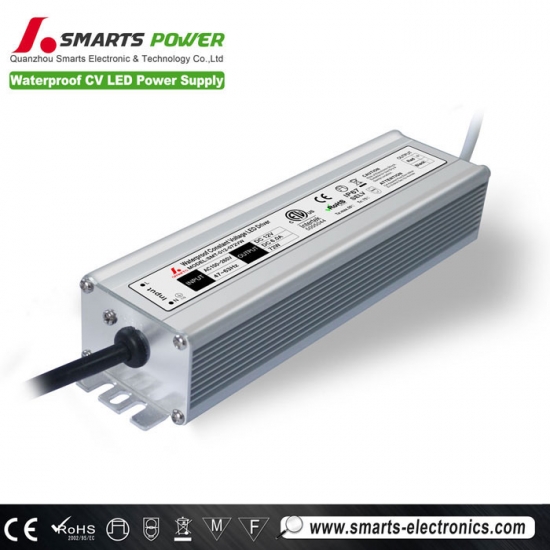

220v 12v 24v ip67 waterproof led transformer power supply 24v 3a
220v 12v 24v ip67 waterproof led transformer power supply 24v 3a is IP67 design for indoor or outdoor installations, Protections:Short circuit/Overload/Over temperature,100% full load burn-in test
SPECIFICAION
MODEL
SMT-012-072VW
SMT-024-072VW
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
6.0A
3.0A
CURRENT RANGE
0~6.0A
0~3.0A
RATED POWER
72W
72W
RIPPLE&NOISE(max)
1.2V
1.2V
voltage TOLERANCE
12V±5%
24V±5%
SETUP RISE TIME
80ms/110,220VAC
80ms/110,220VAC
HOLD UP TIME(Typ.)
60ms/110,220VAC
60ms/110,220VAC
INPUT
VOLTAGE RANGE
90~135/170~265Vac
90~135/170~265Vac
FREQUENCY RANGE
50~60Hz
50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
﹥84%
﹥84%
AC CURRENT(Typ.)
0.5A/110V,220VAC
0.5A/110V,220VAC
INRUSH CURRENT (Typ.)
COLD START 30A/110,220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
UL, CE Mark(LVD, EMC), IP67
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE
1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.

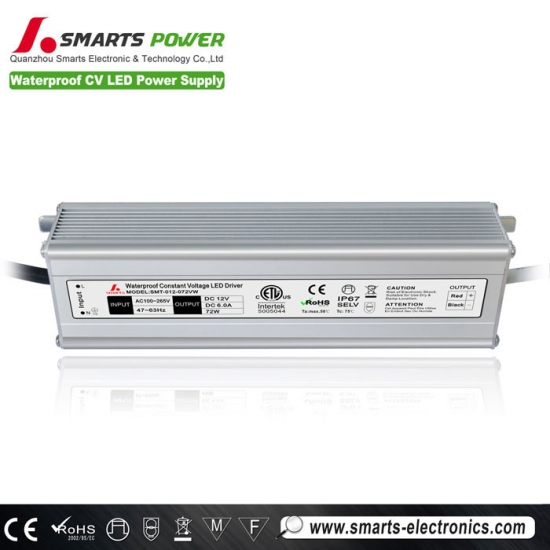

Label
 |
 |
 |
 |
Features of power supply 24v 3a
Environment of waterproof power supply
1.Working Temperature : -25 ~ +50°C
2.Working Humidity : 20 ~ 90% RH non-condensing
3.Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
4.TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
5.Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety of 12v 24v power supply
1.Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
2.Withstand Voltage : I/P-O/P: 3000KVAC
3.Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Product parameters
|
Model |
Input voltage(AC V) |
Working Frequency |
Output voltage |
Output Current |
Output power(DC W) |
Working Temp. |
Protection grade |
|
SMT-012-072VW |
100-265V |
47~63HZ |
12 |
6.0A |
72W
|
-25~50°C |
IP67 |
|
SMT-024-072VW |
100-265V |
47~63HZ |
24 |
3.0A |
72W
|
-25~50°C |
IP67 |
|
SMT-036-080VW
|
100-265V |
47~63HZ |
36 |
2.2A |
80W |
-25~50°C |
IP67 |
|
SMT-048-080VW |
100-265V |
47~63HZ |
48 |
1.67A |
80W |
-25~50°C |
IP67 |
Applications
Our products are widely used in various industries, such as
- indoor LED illuminating lights,
- LED Neon,
- LED urban Decoration
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights,
- Controller Panels, etc.
Our service & FAQ
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 10pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: All are paid before production or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
