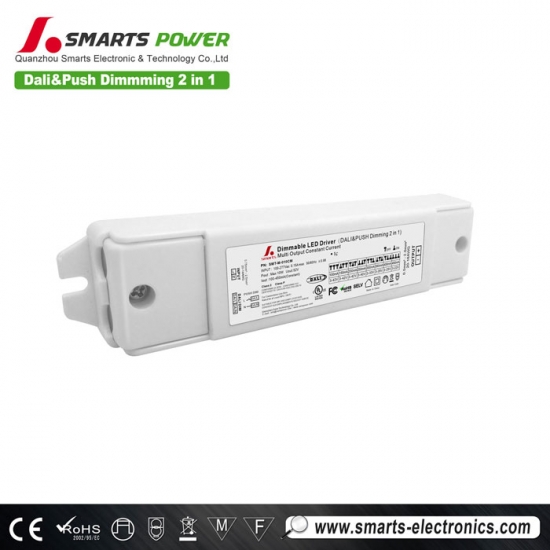

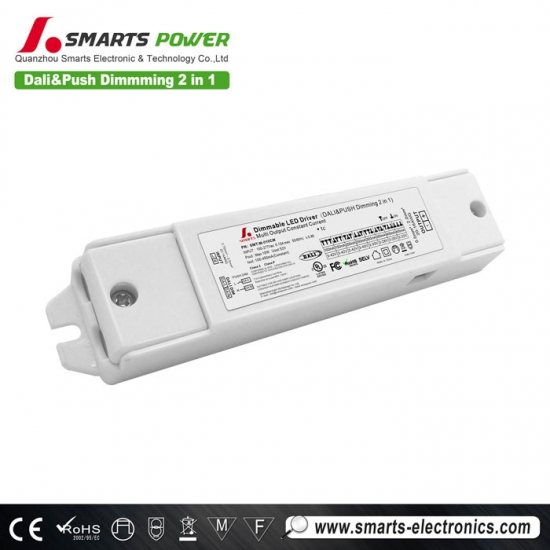

UL 10W 100ma slim size dali constant current led driver for led flood light

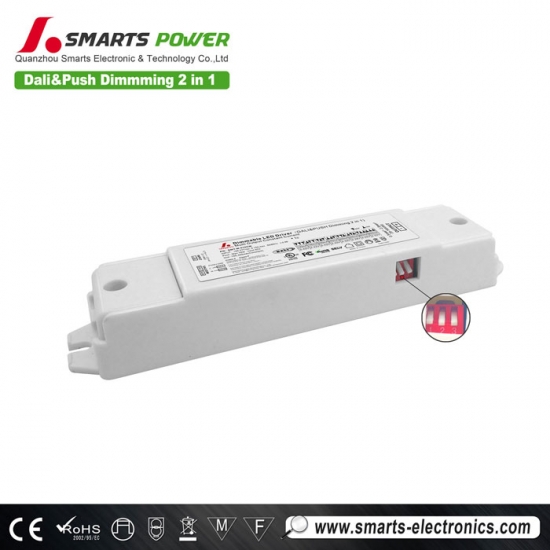

This multi-current dialing led driver is in Dali dimming mode, the output current is 100ma-450ma, the input voltage is 100-277vac, the plastic case is easy to install, and it has a 7-year warranty

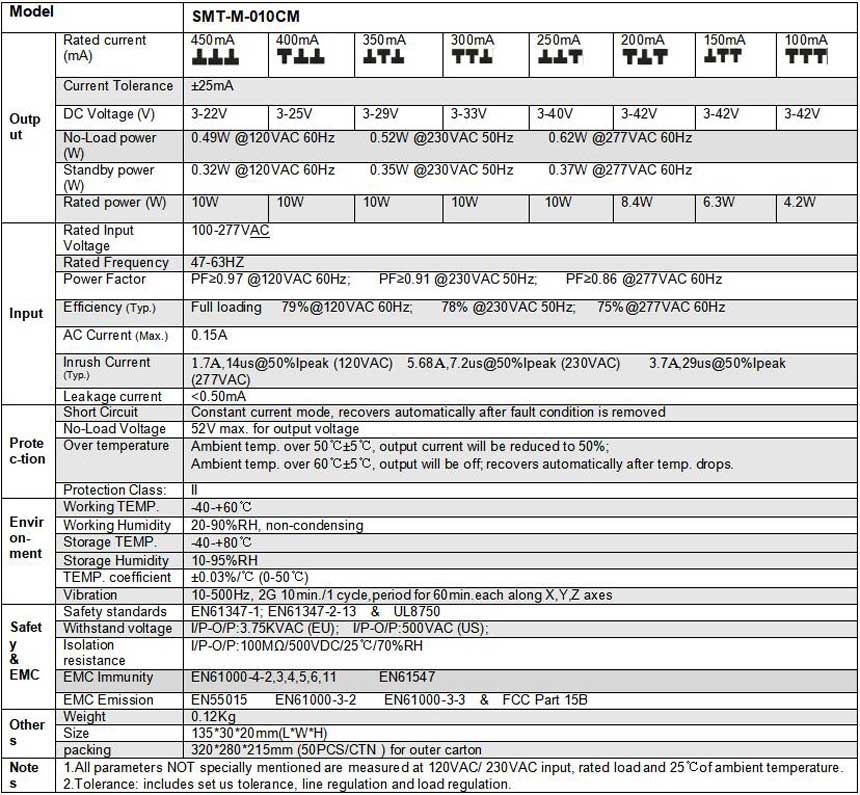

Specification
 |
 |
 |
 |

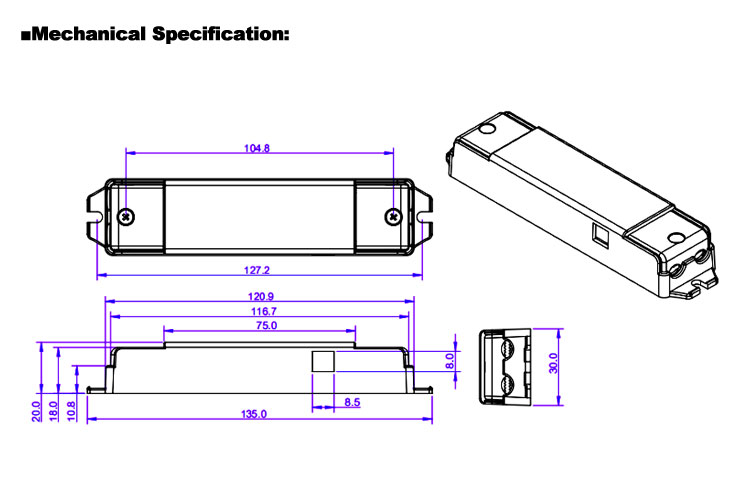

Mechanical Specification
※Input with DG126 terminals 3P: Live Wire AC (L), Neutral Wire AC(N)
※Output LED SEC with DG126 terminals 2P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.
※DALI or PUSH Dim. terminals with DG126 terminals 2P:
when DALI dimming, signal dimming DA1, DA2 ( No polar ) connected to the BUS of the DALI Master;

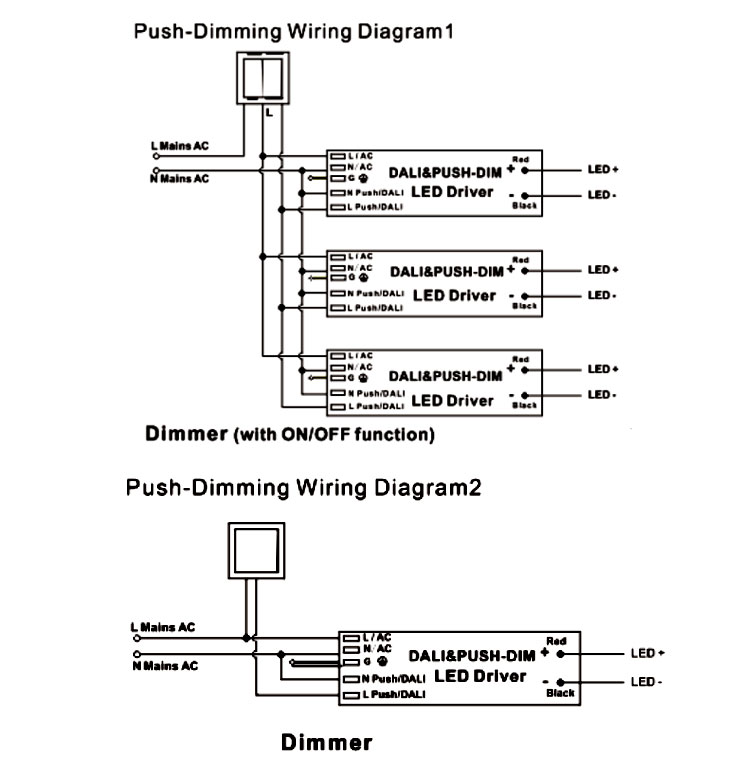

when PUSH dimming, (N) is connected to AC (N) while white (L) is connected to Push dim switch dimmer( L) ;
※Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

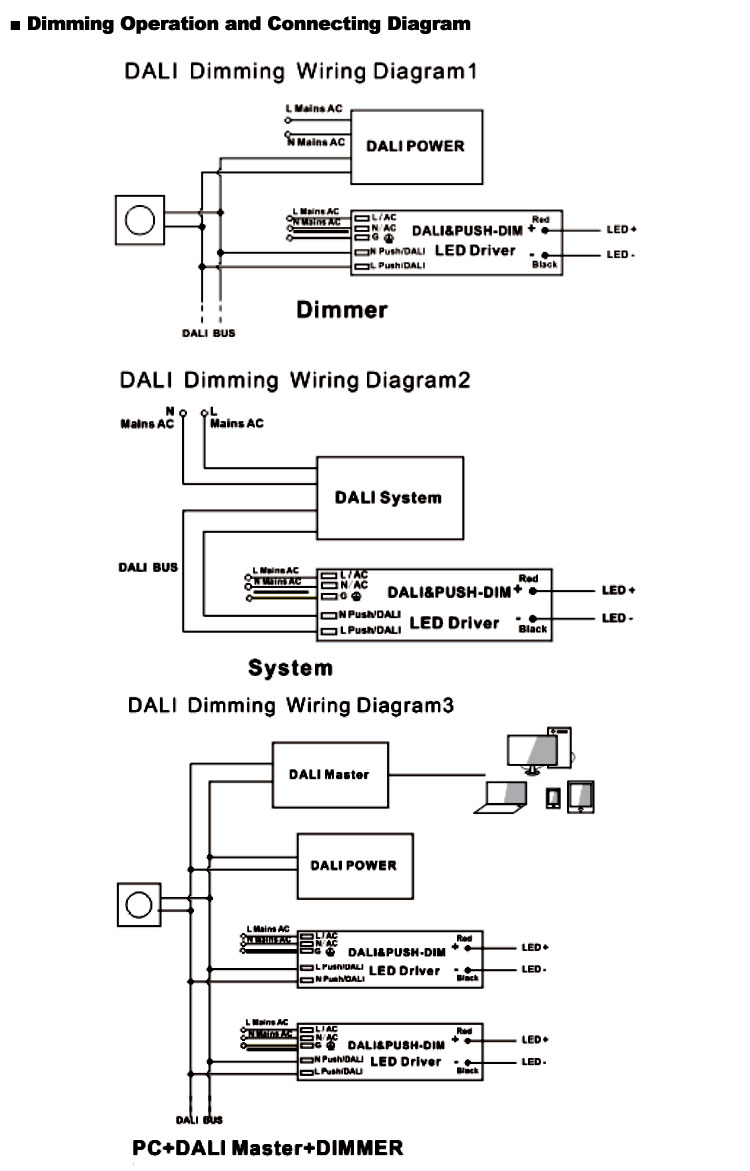

Dimming operation
Related Products
|

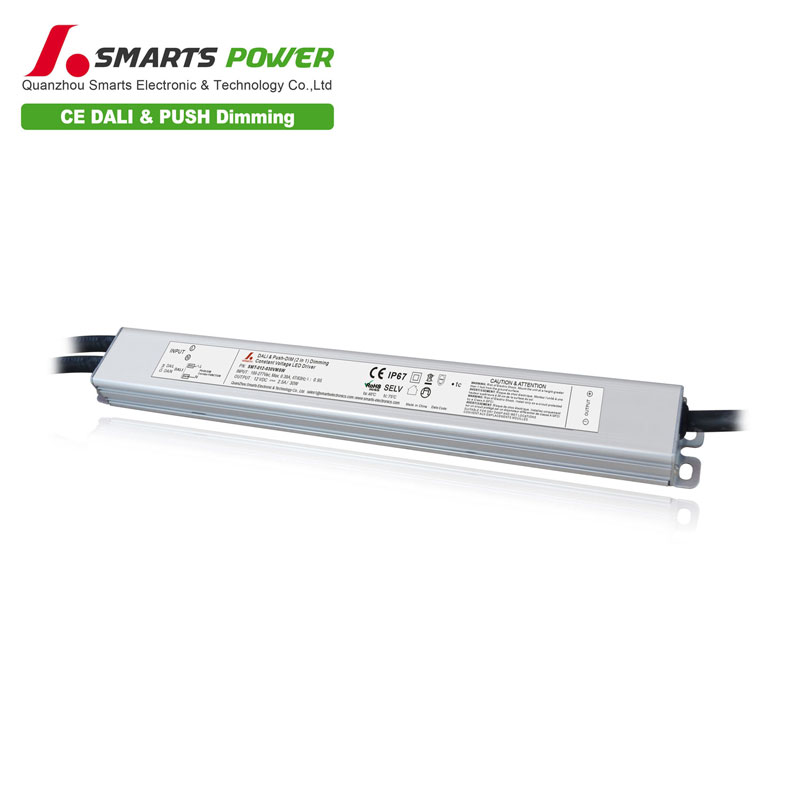

This ultra-thin dali dimmable led driver smarts electronics provide it with a 7-year warranty, waterproof rating of ip67, safe and reliable
