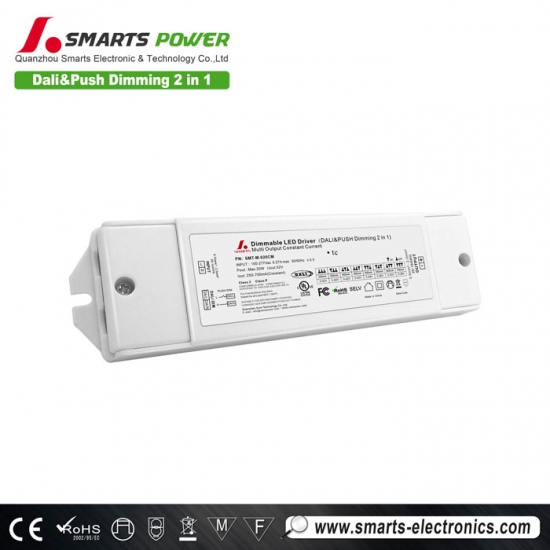

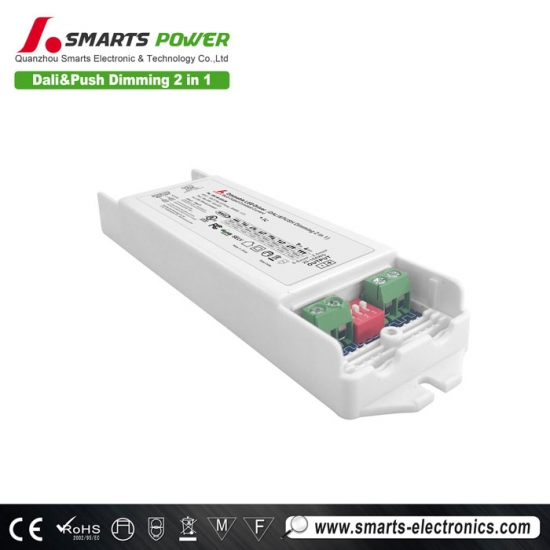

SMT-M-020CM is a multi-current dial-up dali dimmable led driver, the input voltage is 100-277vac, UL certification, and the plastic shell design makes this power supply suitable for indoor installation, and it can be used well with constant current lamps such as cabinet lights. Matches

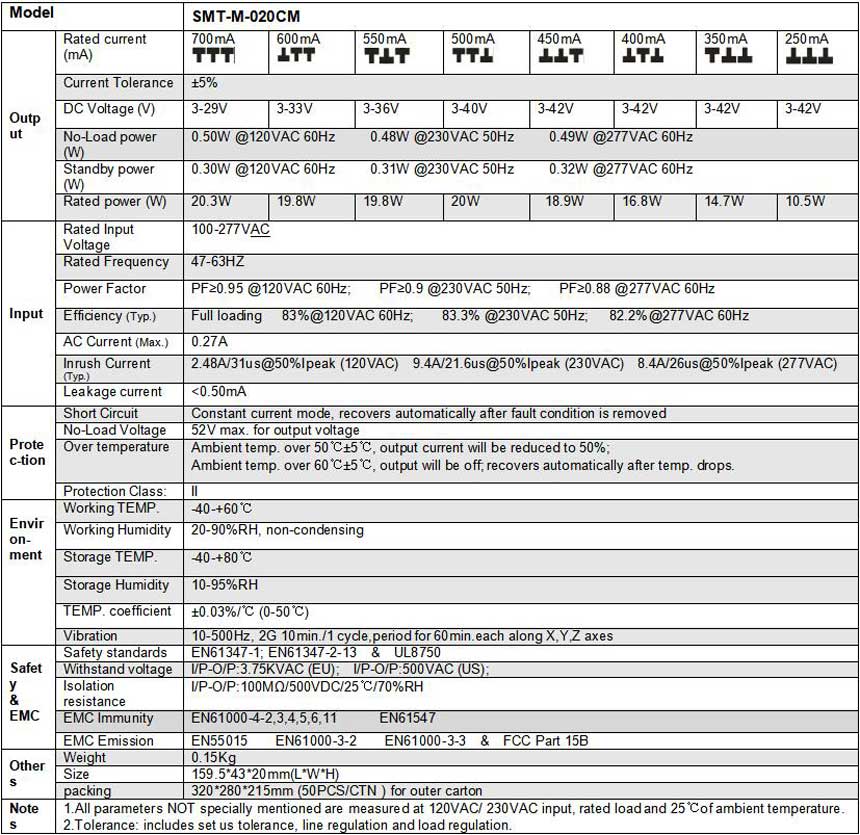

  Specification

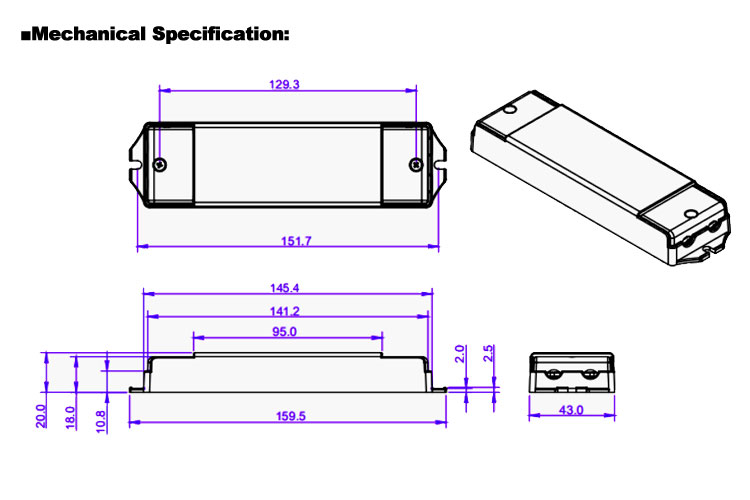

  Mechanical Specification

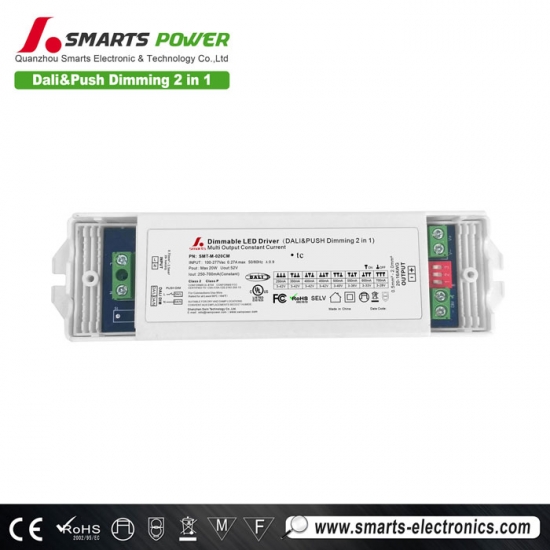

※Input with DG126 terminals 3P: Live Wire AC (L), Neutral Wire AC(N)

※Output LED SEC with DG126 terminals 2P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.

※DALI or PUSH Dim. terminals with DG126 terminals 2P:

when DALI dimming, signal dimming DA1, DA2 ( No polar ) connected to the BUS of the DALI Master;

when PUSH dimming, (N) is connected to AC (N) while white (L) is connected to Push dim switch dimmer( L) ;

※Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.

Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

  Dimming operation
