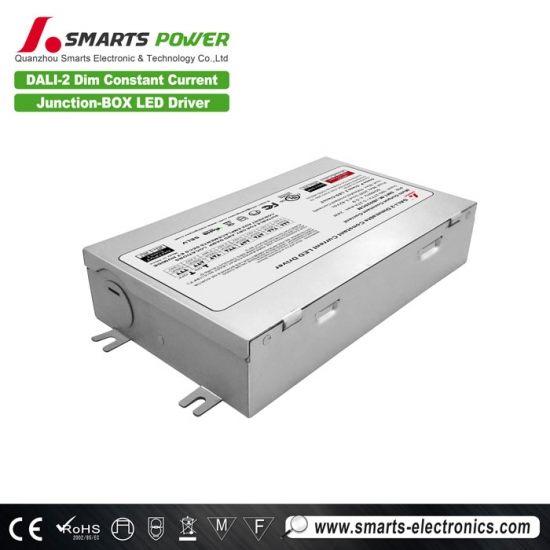

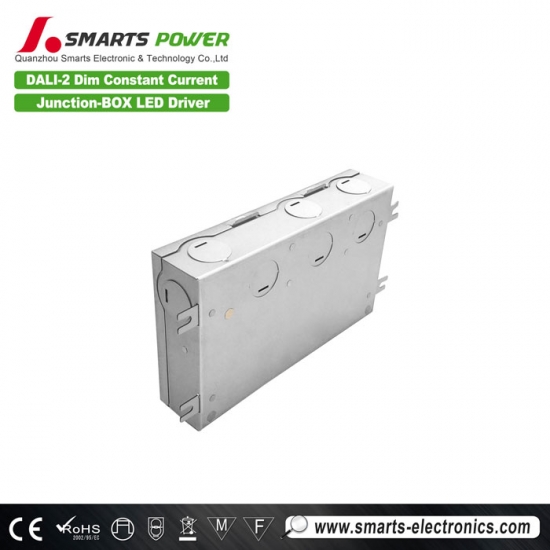

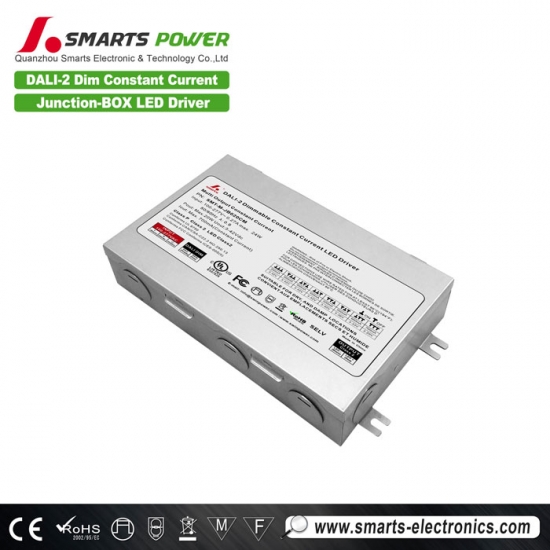

20W 3-42V constant current DALI-2 & PUSH dimmable led driver J-BOX
20W Multi-current selectable dali-2 dimmable led driver The output current range is 250ma, 350ma, 400ma, 450ma, 500ma, 550ma, 600ma, 700ma, passed the dali dimming protocol IEC62386, the dimming range is 0-100% smooth and flicker-free dimming

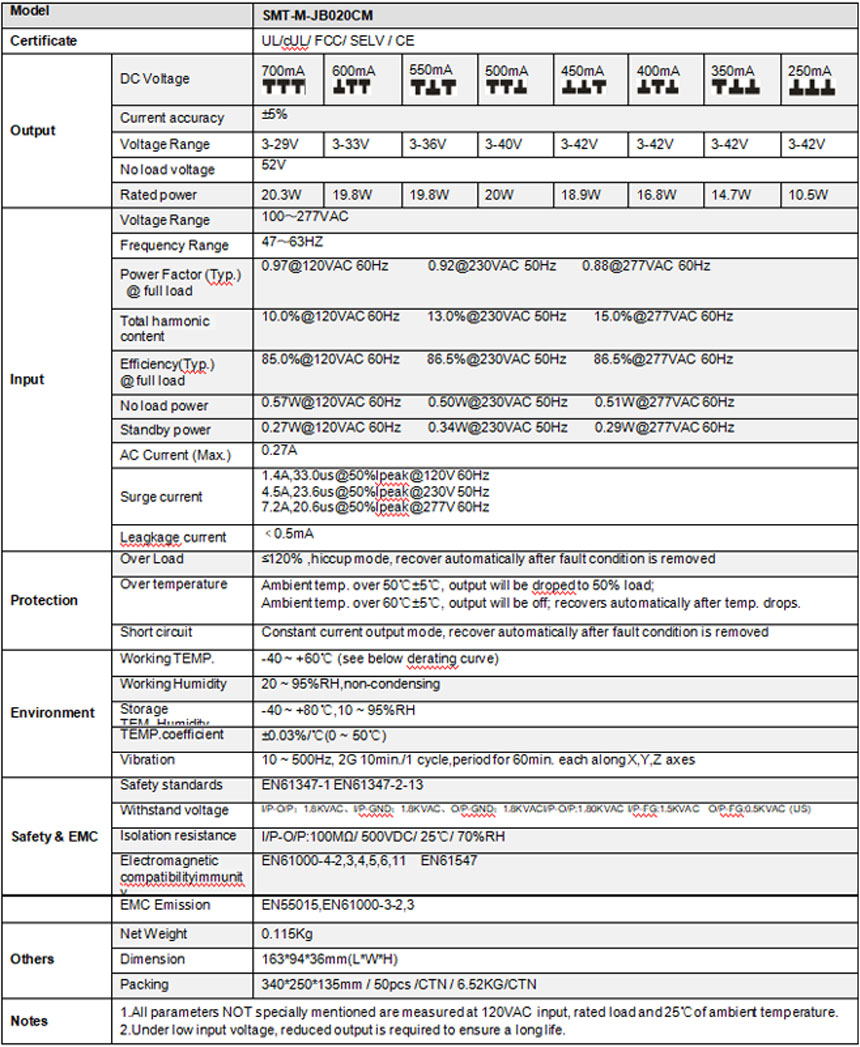

Specification
 |
 |
 |
 |
Mechanical Specification
1. Input 3*18AWG,Black cable (L), White cable (N) and Green cable (G).
2. Output 2*18AWG, Red cable (V+) connect to positive(+), Black cable(V-) connect to negative(-).
3. Dimming wire 2*18AWG Purple cable(DA1/L), Pink cable (DA2/N).
Warm tips: Any other requests for cable, we can customized.
Dimming operation
※Note: For DALI Dimming Wiring Diagram 3, please noted that only one DALI power is need in the DALI bus, so no extra DALI power is needed if the Master or Dimmer already includes the DALI Power.
Related Products

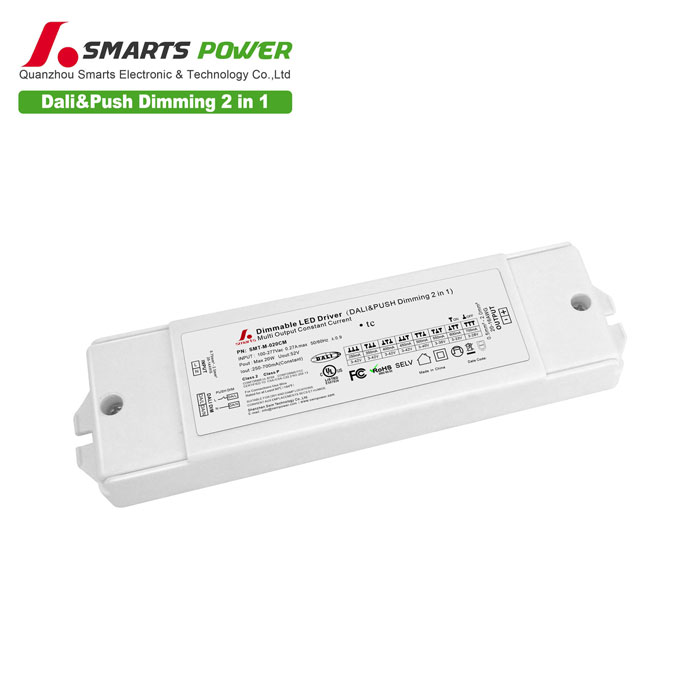

250ma-700ma output current is optional, dali-2 & push dimmable led driver plastic shell design, waterproof mode ip20, easy and fast installation, small size, suitable for installation and use of indoor lighting projects in small spaces
Mode：SMT-M-020CM intput voltage：100-277vac
Size : 159.5*43*20mm |
