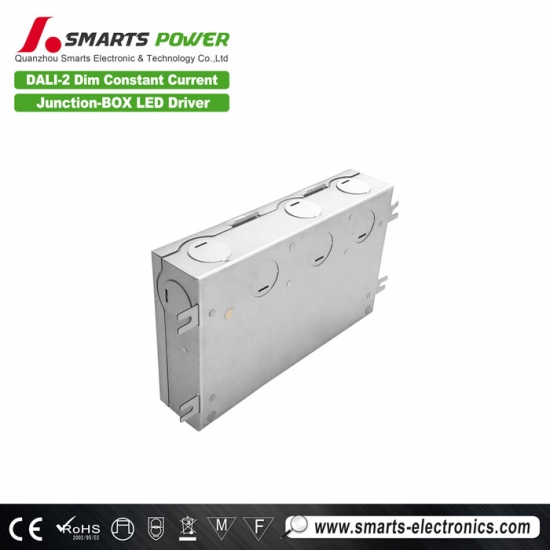

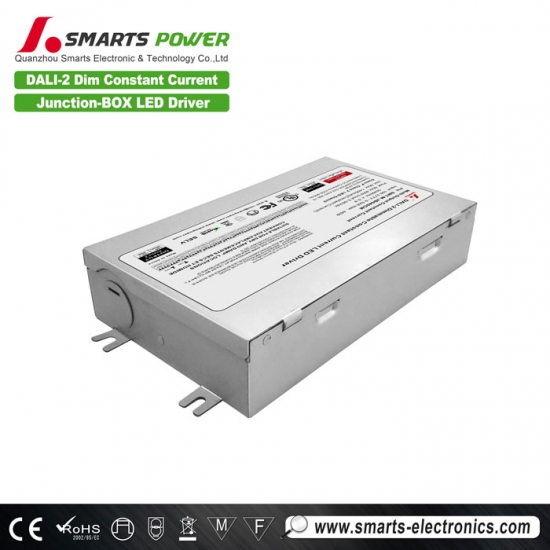

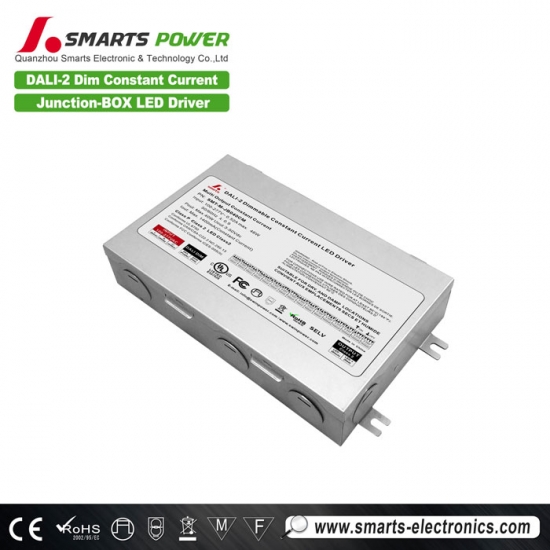

277vac Multi-current selectable dali-2 & push dimmable 3-65v 40w led driver
This 40W dali-2 dimmable led driver is a constant current working mode, the output current is optional in the range of 300ma-1400ma, with Open circuit /short circuit/ over temperature protection, 7-year warranty
Specification
 |
 |
 |
 |

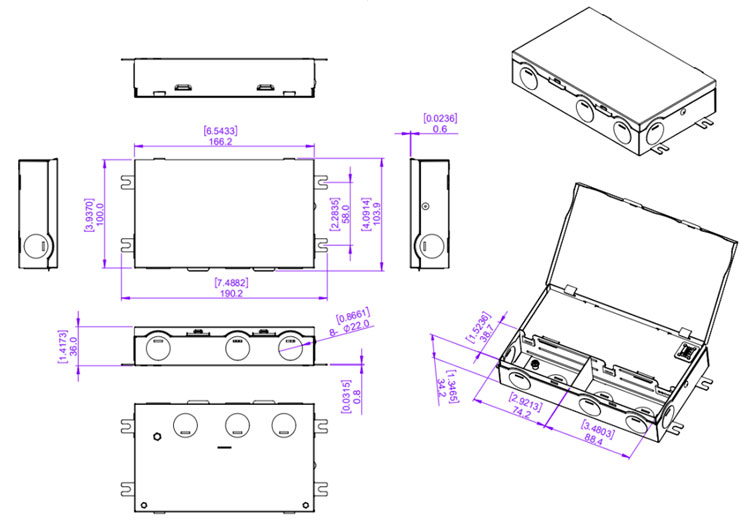

Mechanical Specification
1. Input 3*18AWG,Black cable (L), White cable (N) and Green cable (G).
2. Output 2*18AWG, Red cable (V+) connect to positive(+), Black cable(V-) connect to negative(-).
3. Dimming wire 2*18AWG Purple cable(DA1/L), Pink cable (DA2/N).
Warm tips: Any other requests for cable, we can customized.

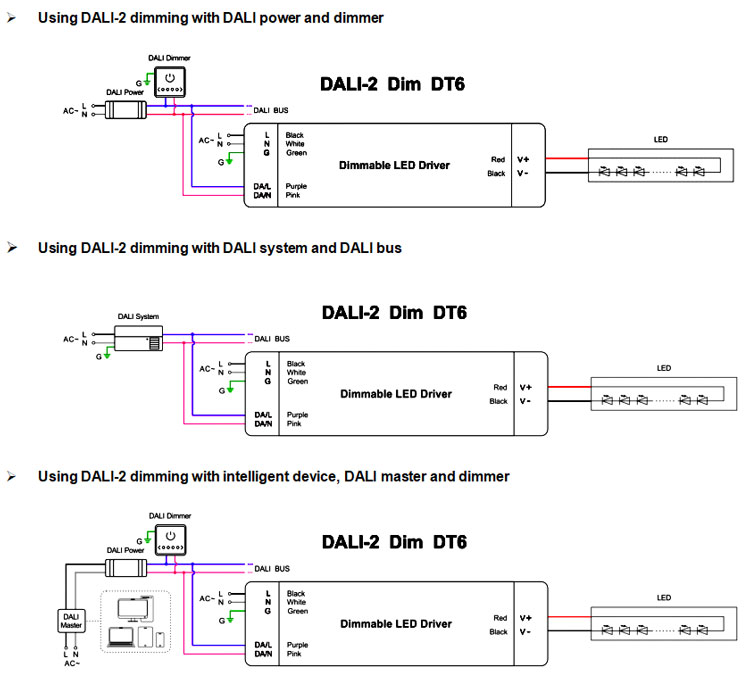

Dimming operation
※Note: For DALI Dimming Wiring Diagram 3, please noted that only one DALI power is need in the DALI bus, so no extra DALI power is needed if the Master or Dimmer already includes the DALI Power.
Related Products

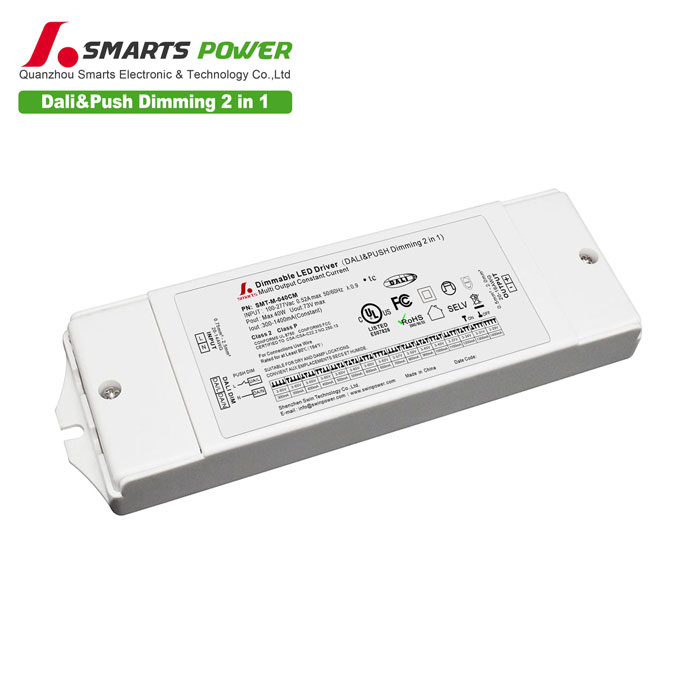

 40w plastic housing Multi-current selectable dali-2 dimmable led driver Small in size and easy to install, UL certified, in line with international safety lighting regulations, 7-year warranty
