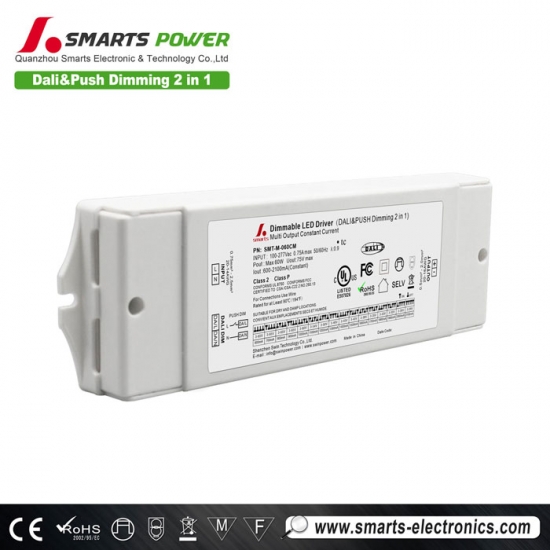

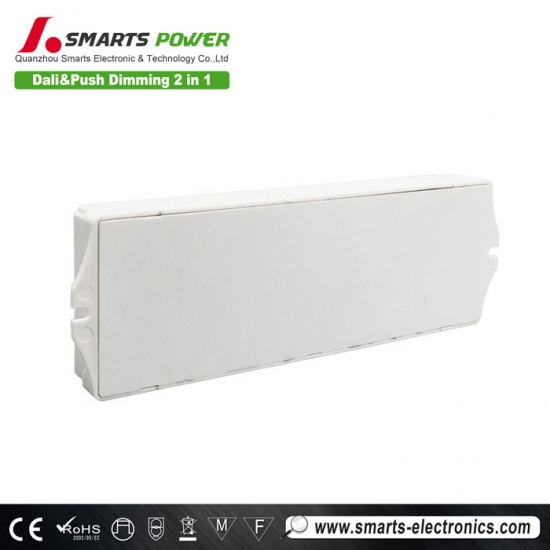

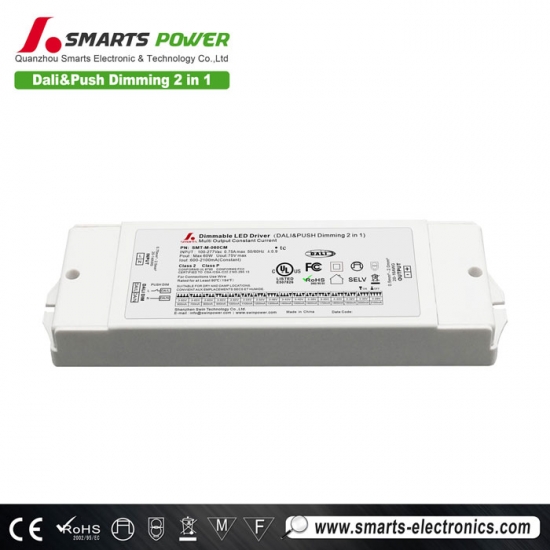

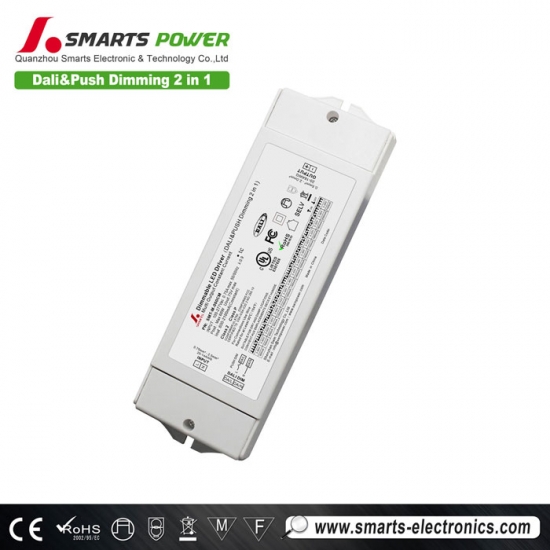

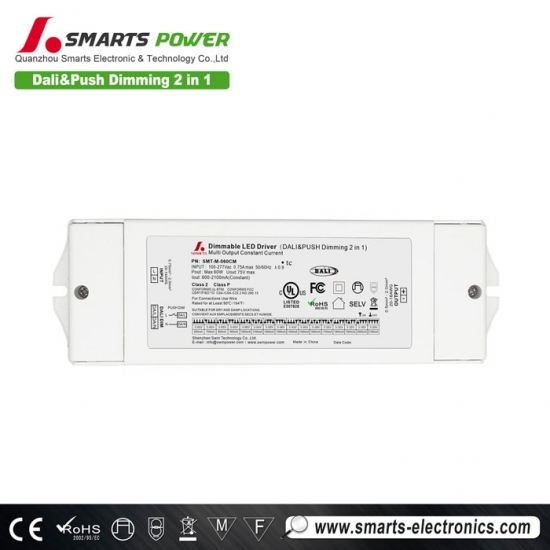

Dali dimming led driver 900ma 60w constant current dimmable power supply
The new SMARTS multi-current dali dimmable led driver complies with the Dali protocol and is compatible with all major brands of lamps on the market. This power supply also has 4 dialable buttons, which can achieve 16-speed output current adjustment.

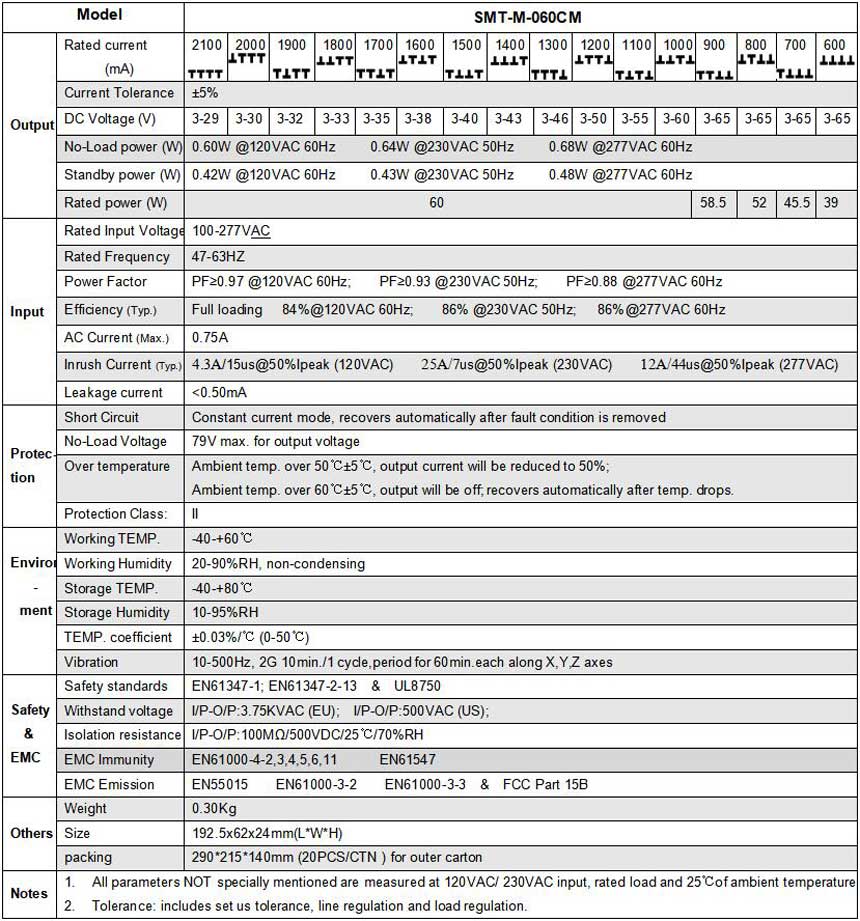

Specification
 |
 |
 |
 |
Mechanical Specification
※Input with DG126 terminals 3P: Live Wire AC (L), Neutral Wire AC(N)
※Output LED SEC with DG126 terminals 2P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.
※DALI or PUSH Dim. terminals with DG126 terminals 2P:
when DALI dimming, signal dimming DA1, DA2 ( No polar ) connected to the BUS of the DALI Master;
when PUSH dimming, (N) is connected to AC (N) while white (L) is connected to Push dim switch dimmer( L) ;
※Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Dimming operation
Related Products
|

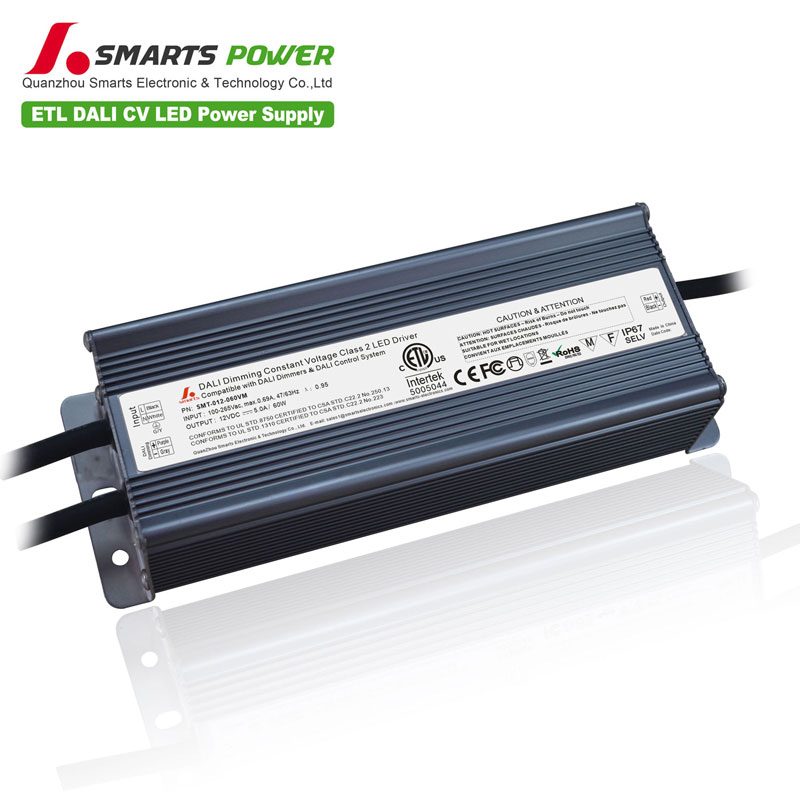

Mode：SMT-012-060VM intput voltage：100-265V AC
