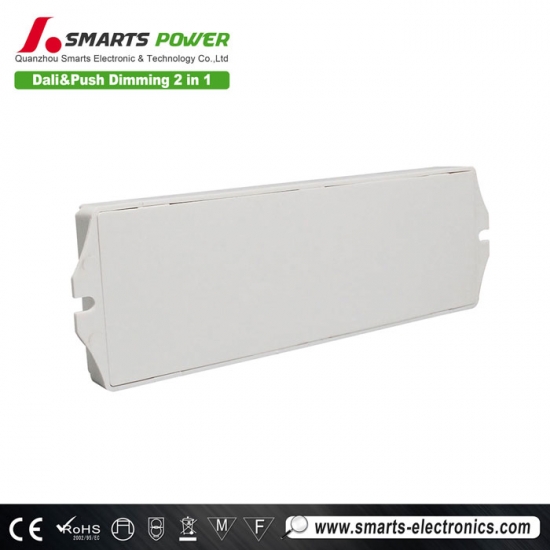

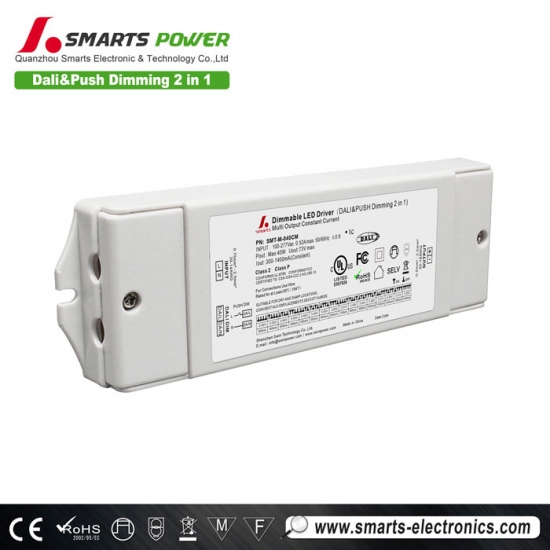

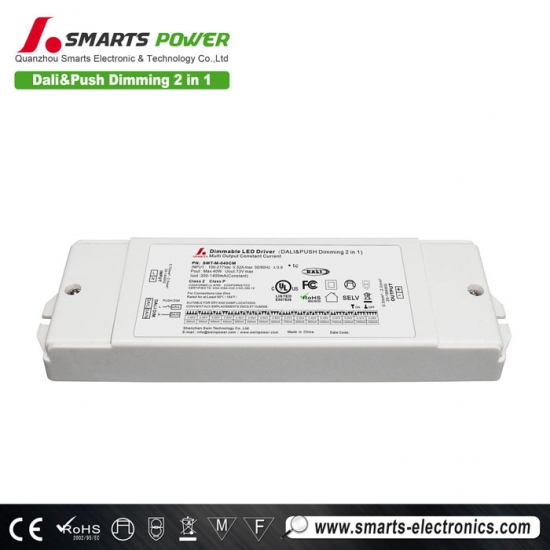

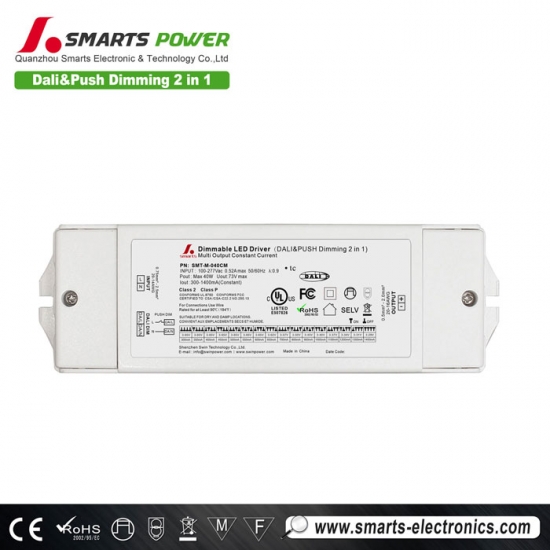

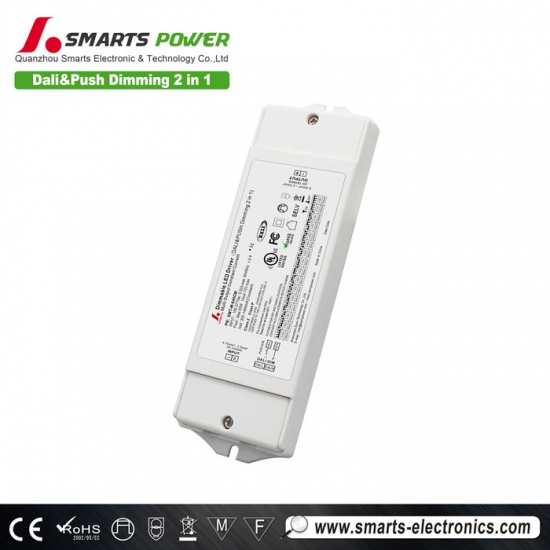

Dali dimmable 40w led constant current power driver 300ma-1400ma ip20 price
This 40W DALI dimmable led driver is based on the dali protocol, which can be matched and dimmed with lamps that also have the dali protocol on the market, and is suitable for indoor installation.

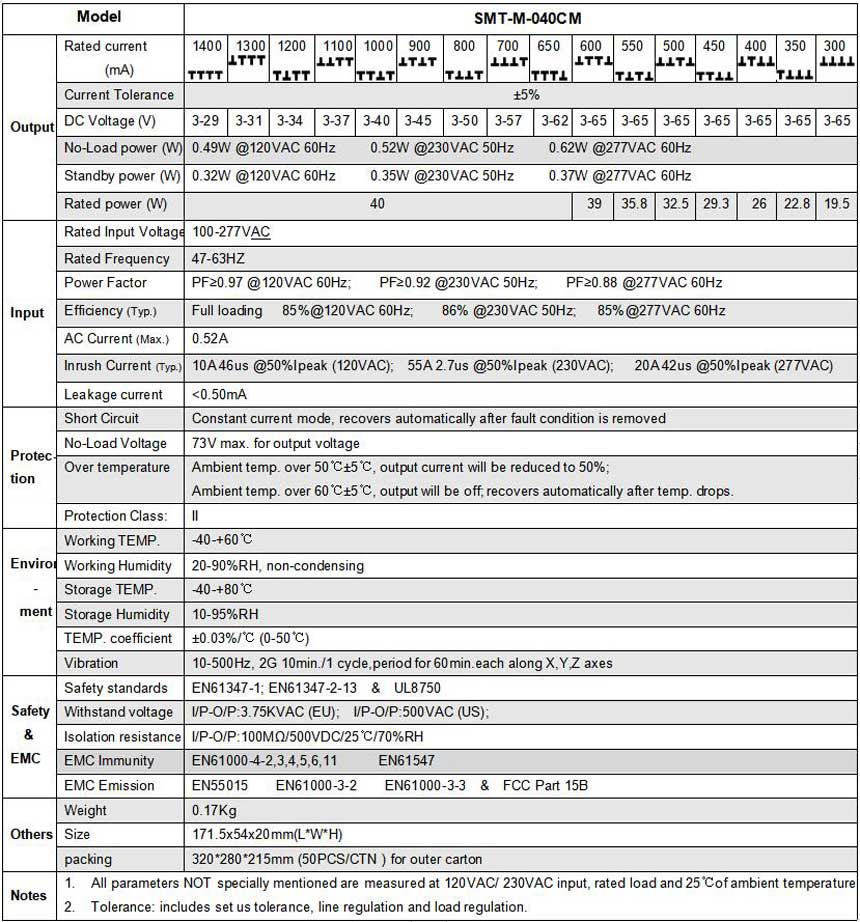

Specification
 |
 |
 |
 |

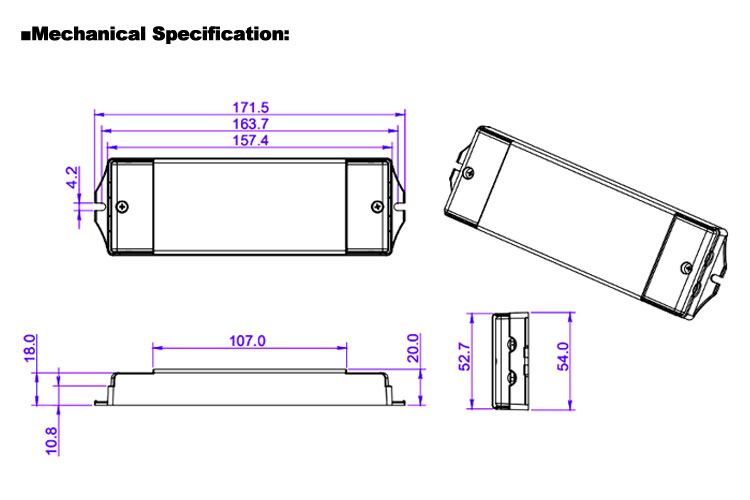

Mechanical Specification
※Input with DG126 terminals 3P: Live Wire AC (L), Neutral Wire AC(N)
※Output LED SEC with DG126 terminals 2P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.
※DALI or PUSH Dim. terminals with DG126 terminals 2P:
when DALI dimming, signal dimming DA1, DA2 ( No polar ) connected to the BUS of the DALI Master;
when PUSH dimming, (N) is connected to AC (N) while white (L) is connected to Push dim switch dimmer( L) ;
※Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Dimming operation
Related Products
|

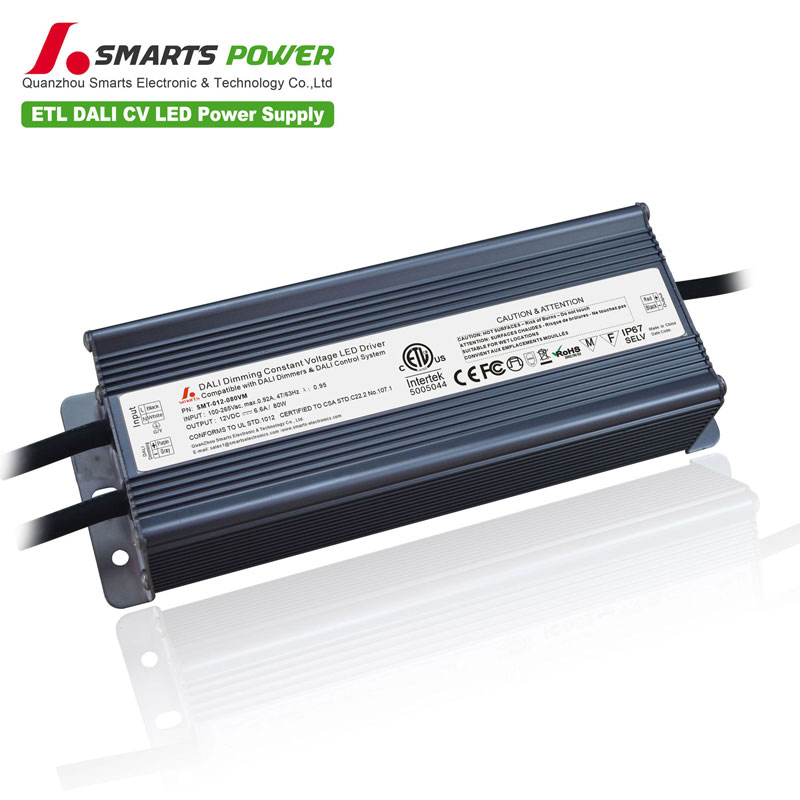

Mode：SMT-012-080VM intput voltage：100-265V AC
