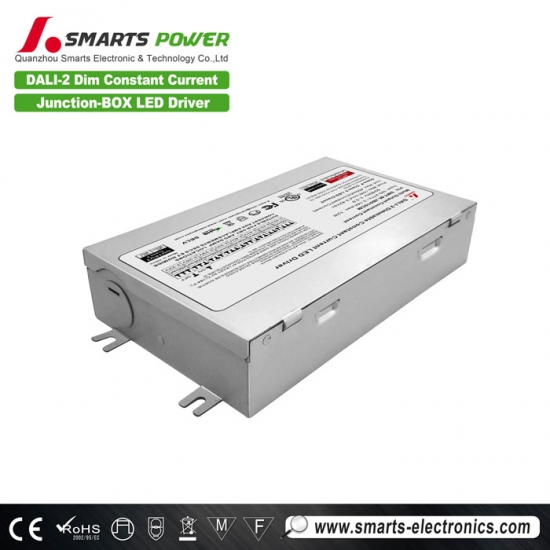

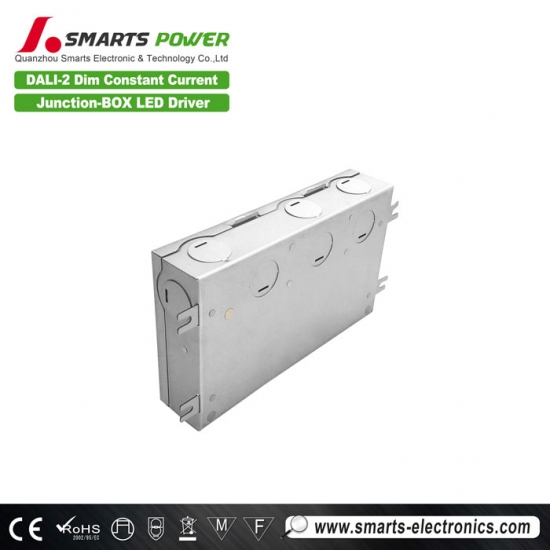

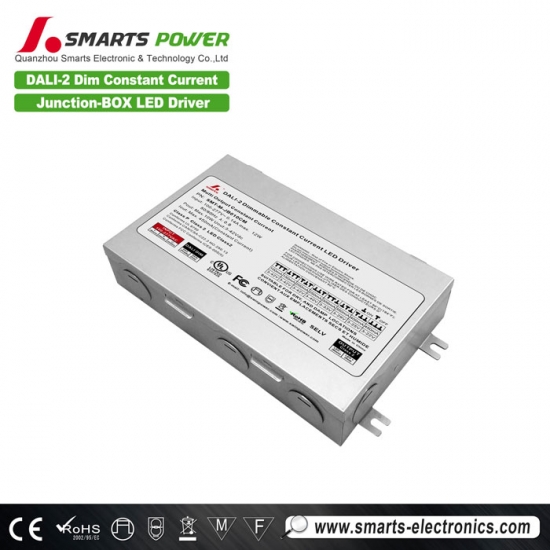

The 10W constant voltage led driver is integrated with the Junction Box, and the dimming mode is dali-2 dimmable. It has passed the dali-2 dimming protocol IEC62386, and can be well connected with the dali-2 dimming panels on the market to achieve smooth and flicker-free dimming

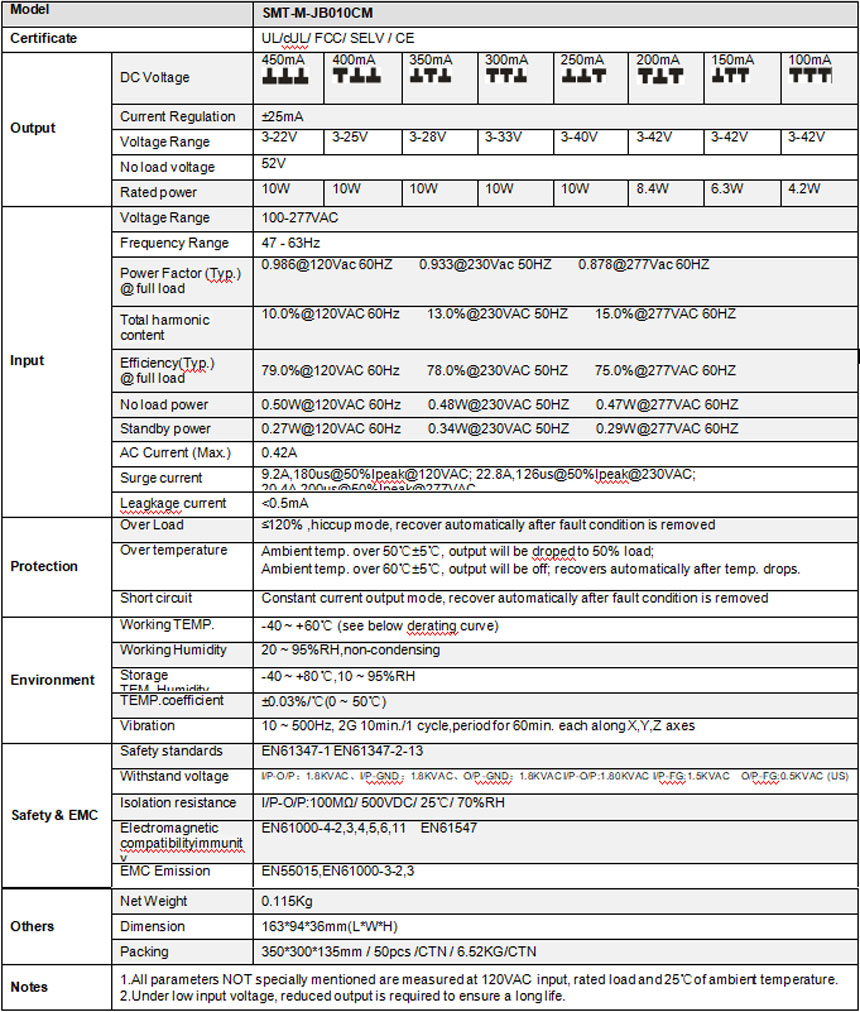

  Specification

  Mechanical Specification

1. Input 3*18AWG,Black cable (L), White cable (N) and Green cable (G).

2. Output 2*18AWG, Red cable (V+) connect to positive(+), Black cable(V-) connect to negative(-).

3. Dimming wire 2*18AWG Purple cable(DA1/L), Pink cable (DA2/N).

Warm tips:  Any other requests for cable, we can customized.

  Dimming operation

※Note: For DALI Dimming Wiring Diagram 3, please noted that only one DALI power is need in the DALI bus, so no extra DALI power       is needed if the Master or Dimmer already includes the DALI Power.
