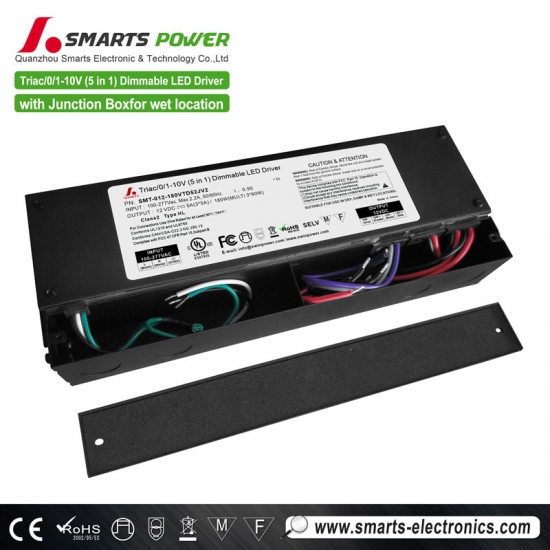

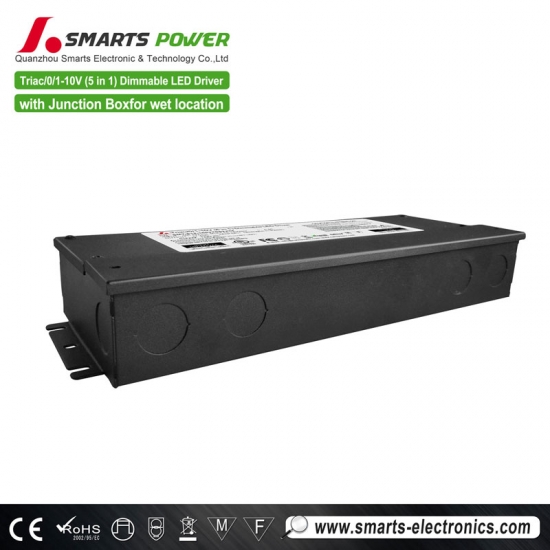

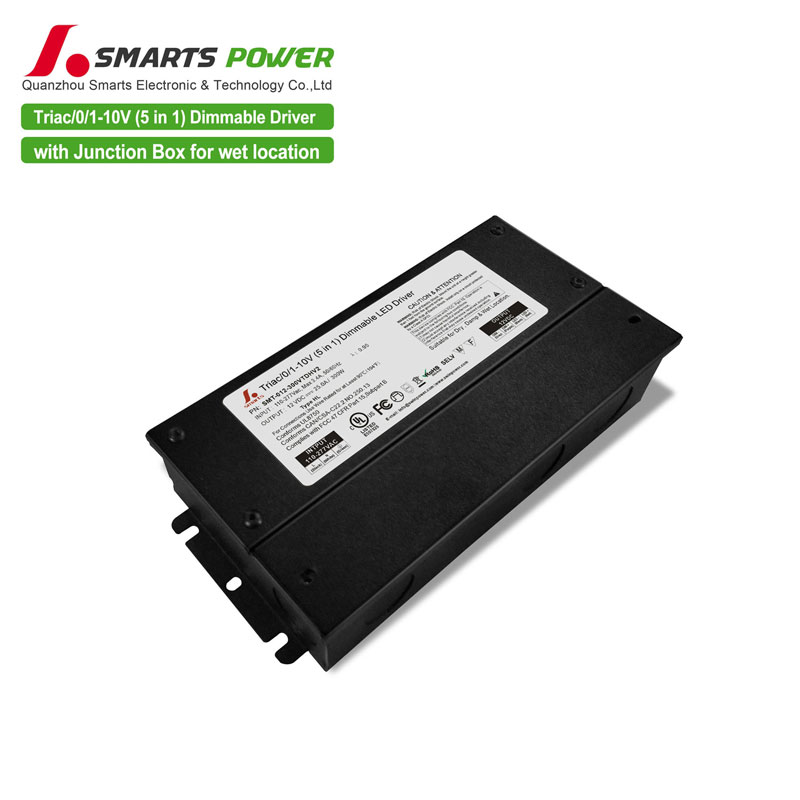

triac 0-10v 5 in 1 dimmable led transformer led string driver 180w 12v class 2
Triac dimmable constant voltage led driver are for direct wire installations into Lighting Geek waterproof tape light, simply remove end caps to access on-board terminal block connectors, class 2 power supply is intrinsically safe for LEDs GO outdoor tape lights.
Product parameters
Model
SMT-012-180VTD52JV2 (1.0 version)
SMT-012-180VTD52JWV2 (2.0 version)
SMT-024-192VTD52JV2 (1.0 version)
SMT-024-192VTD52JWV2 (2.0 version)
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Voltage Tolerance
±0.5V
Load Regulation
±1%
±1%
±1%
Rated current
3*5A
2*4A
Rated power
180W(3*60W)
192W (2*96W)
Input
Voltage Range
100-277VAC
Frequency Range
47～63HZ
Power Factor(Typ.)@full load
0.99@120VAC 0.94@277VAC
0.99@120VAC 0.94@277VAC
THD(Typ.)@full load
<20%
Inrush Current(Typ.)
15A, 50%, 1.4ms
Full Load
Efficiency（Typ.）
86%@120VAC , 88%@277VAC
87%@120VAC , 89%@277VAC
AC Current（Typ.）
2.2A@100VAC
2.3A@100VAC
Inrush Current (Typ.)
19A (twidth=1.3ms) @120VAC ; 38A (twidth=960us) @277VAC
19A (twidth=1.3ms) @120VAC ; 38A (twidth=960us) @277VAC
Leakage current
<0.50mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over loading
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Over Current
≤1.4*I out
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,
Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P: 1.88KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
2.3Kg

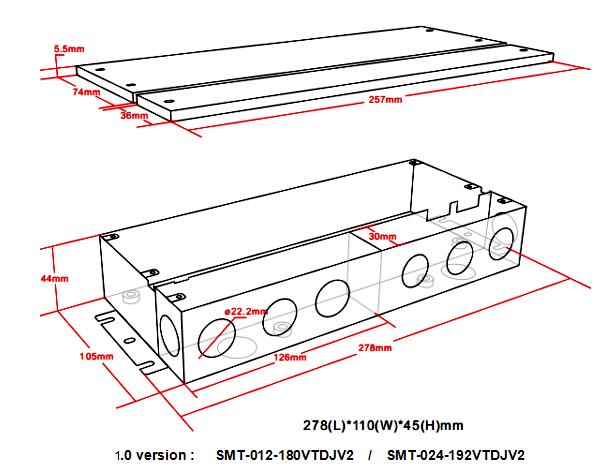

Size
1.0version: 278*110*45mm / 2.0version: 278*130*45mm (L*W*H)
packaging
340*210*245mm/8pcs /CTN G.W.:19.50KG/CTN (1.0 version)
385*335*200mm 20PCS/CTN
Notes
1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated load and 25℃of ambient temperature.
2..Tolerance:includes set us tolerance,line regulation and load regulation.
 |
 |
 |
 |
Mechanical Specification
Input wire Black and White to be connected to AC L and N ,Green wire go ground,
Output wire Red to LED Positive side (+) , Black to LED Negative side (-).
Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Compatible tape lighting Type
These Lighting Geek super-bright tape light are encased in a clear epoxy resin coating to protect the tape. The LEDs produce a wide 120 degree light which gives a reflected glow similar to that of neon. The tape is highly flexible and is the ideal fixture for defining building outlines and ideal for many uses in homes, shops, bars and nightclubs paired with class 2 led drivers.
