Non-dimmable LED Driver

ul listed 384W triac & 0 10v dimmable constant voltage led driver power supply class 2

high power 5 in 1 dimmable led driver constant voltage operating mode. Built-in PFC function, working efficiency as high as 91%, PWM output mode, dimming range between 0~100%, UL certification, in line with global safety lighting regulations
  • item no.:

    SMT-024-384VTD52JV2
  • brand:

    SMARTS
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    24VDC/48VDC
  • Output Current:

    16A (4*4A)
  • Working Mode:

    constant voltage
  • Certification:

    UL, FCC, CE, ROHS
  • Warranty:

    7 years
inquiry now
product details

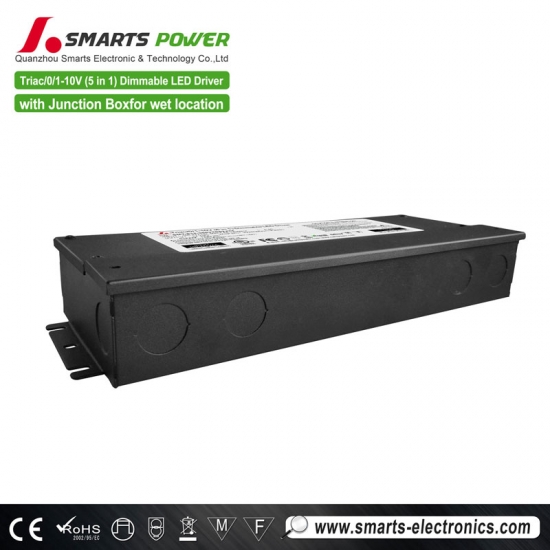

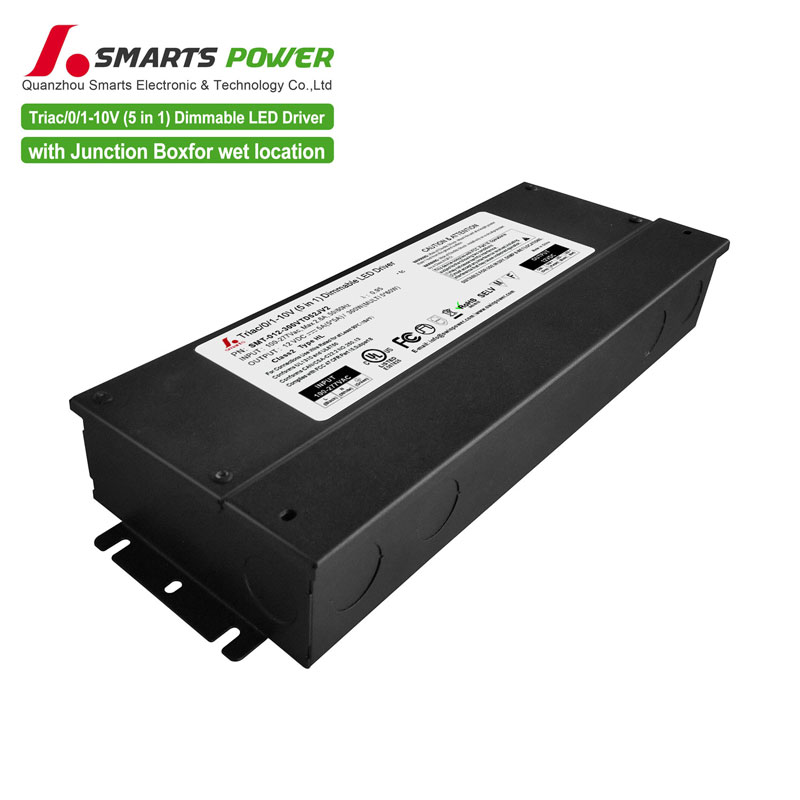

UL listed 384W triac & 0 10v dimmable constant voltage led driver power supply class 2

100-277vac Class 2 triac & 0 10v dimmable led driver 384W aluminum housing design. It has short-circuit/overload/over-temperature protection, natural air convection cooling, and has a 7-year warranty. It has strong compatibility and is compatible with most triac dimmers and 0 10v dimmers on the market. For example Lutron dimmer

  Product parameters

Model SMT-024-384VTD52JV2 SMT-048-384VTD52JV2
Output DC Voltage 24V 48V
Rated Current 4*4A 4*2A
Rated Power 384W (4*96W) 384W (4*96W)
Voltage Tolerance ±0.5V
Voltage Regulation ±0.3%
Load Regulation ±1%
Input Voltage Range 100-277VAC
Frequency Range 47-63Hz
Power Factor@ full load 0.98@120VAC   0.96@277VAC 0.98@120VAC   0.96@277VAC
THD@ full load <20%
Efficiency@ full load 87%@120V 90%@277VAC 88%@120V 91%@277VAC
AC Current(Max.) 4.6A@100VAC 4.6A@100VAC
Inrush Current (Typ.) 22.8A ,50%,960us @120VAC ;
Leakage current <0.50mA
Protection Short Circuit shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading ≤120% Hiccup mode ,recovers automatically after fault condition is removed
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20~90%RH, non-condensing
Storage TEMP. Humidity -40~+80℃,10~95%RH
TEMP .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards UL8750+UL1310
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC 47 CFR Part 15 ,Subpart B
Others Weight 2.6Kg
Size 323*140*47.5mm (L *W*H)
packaging 10pcs /CTN     385*335*200mm     20PCS/CTN
Notes 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

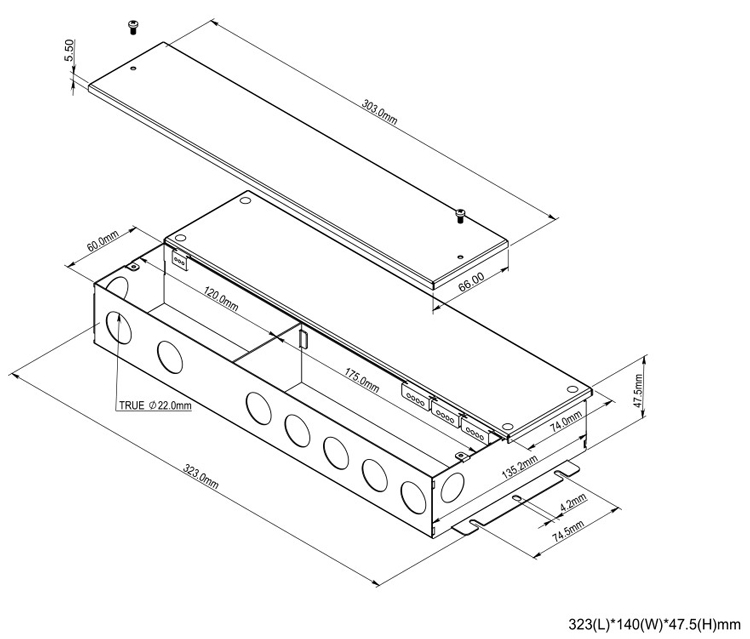

  Mechanical Specification

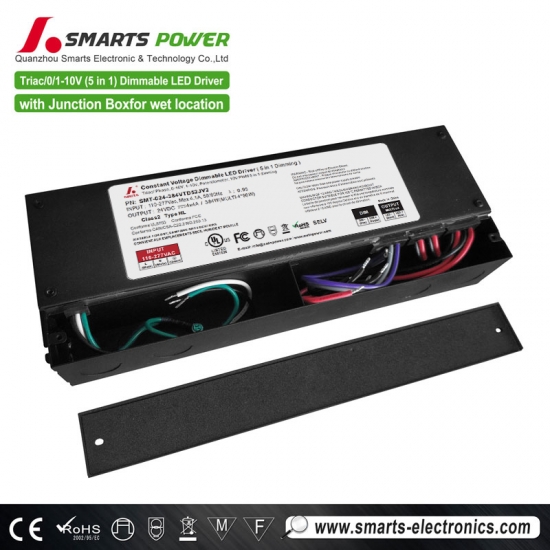

 Input wire Black and White to be connected to AC L and N ,Green wire go ground,

 Output wire Red to LED Positive side (+) , Black  to LED Negative side (-).

 Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)

 Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.

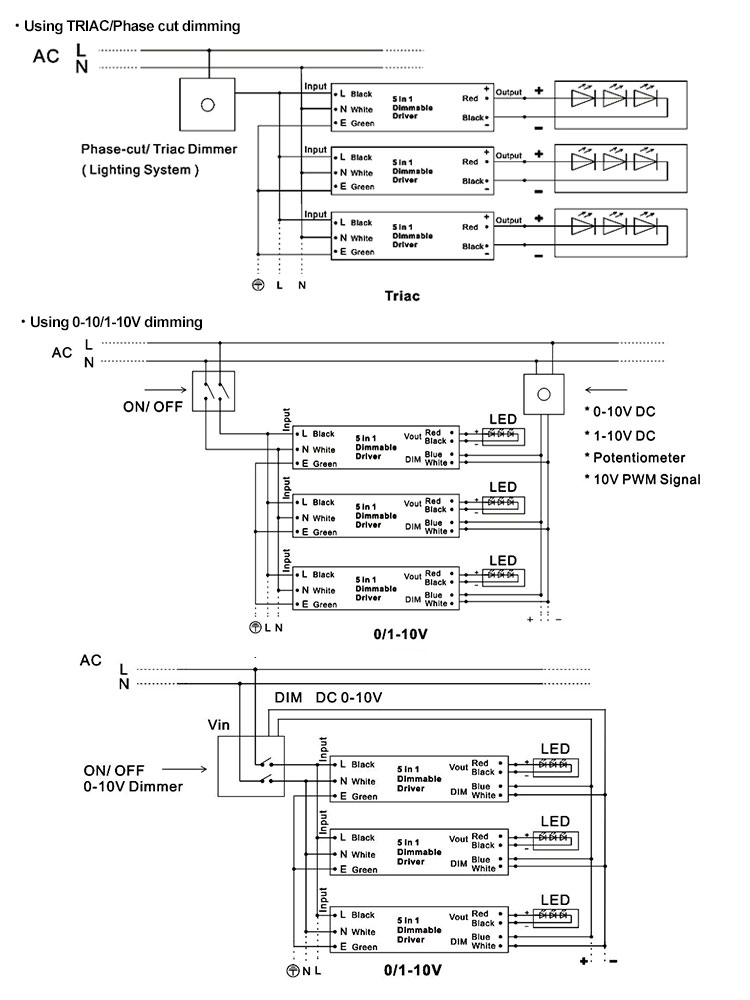

■ Connecting Diagram

1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.

2.Work with forward phase /leading edge ,MLV and reverse phase /trailing edge ,ELV,TRIAC dimmers.

3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.



  Compatible tape lighting Type

triac & 0 10v dimmable led driver 384W has passed Class 2 certification, 4 outputs 4*96W, complies with global safety lighting regulations, PWM output mode, built-in PFC function, PF>0.98. Natural air convection cooling, 7-year warranty
