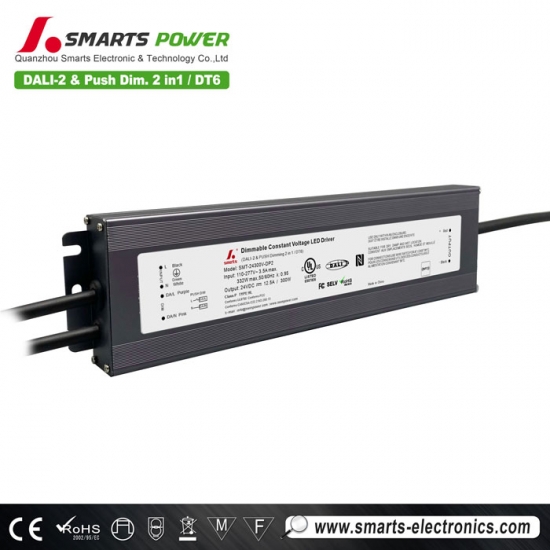

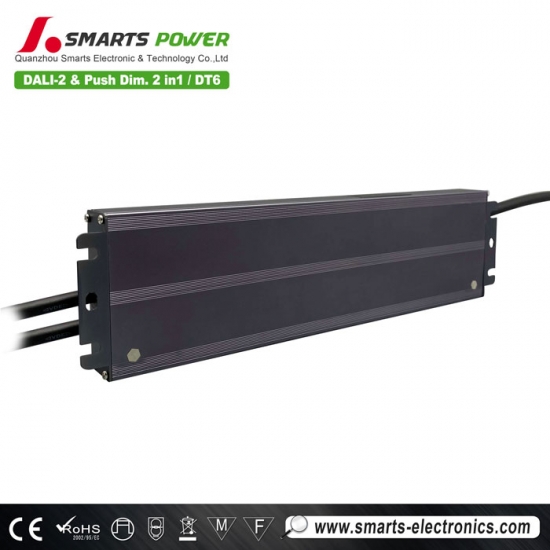

high power led manufacturers DALI 2 & push DT6 waterproof electronic 300w 24v led driver ip67
SMARTS high power led driver manufacturers Production R&D 300W DALI 2 dimmable led driver Provides smooth & flicker-free dimming performance for a comfortable lighting effects.
Specification
| Model | SMT-12300V-DP2 | SMT-24300V-DP2 | SMT-36300V-DP2 | SMT-48300V-DP2 | |
| Output | DC Voltage | 12V (12-13V adjust by NFC) | 24V (24-25.5V adjust by NFC) | 36V (36-38V adjust by NFC) | 48V (48-50V adjust by NFC) |
| Voltage Tolerance | ±0.2V | ||||
| Rated current | 25A | 12.5A | 8.34A | 6.25A | |
| Rated power | 300W | ||||
| Load Regulation | ±2% | ||||
| Input | Standby power consumption | ≤0.5W | ≤0.5W | ≤0.6W | ≤0.6W |
| Voltage Range | 110-277VAC | ||||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor(Typ.)@ full load | PF≥0.98@120VAC PF≥0.95@230VAC PF≥0.90@277VAC (Full loading) | ||||
| THD(Typ.)@ full load | ≤10%@120VAC ; ≤10%@230VAC; ≤15%@277VAC | ||||
| Efficiency(Typ.)@ full load | 88%@120VAC; | 89%@120VAC; 91%@230VAC; 91%@277VAC | |||
| AC Current(Max.) | 3.5A | 3.5A | 3.5A | 3.5A | |
| Inrush Current (Typ.) | 60A,9us@50%Ipeak(120VAC);70A,188us@50%Ipeak(230VAC) 180A,4.4us@50%Ipeak (277VAC) | ||||
| Leakage current | <0.5mA | ||||
| Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |||
| Over Load | ≤120% ,hiccup mode, recover automatically after fault condition is removed | ||||
| Over temperature | Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops. | ||||
| Environment | Working TEMP. | -40~+70℃ (see below derating curve) | |||
| Working Humidity | 20 - 95%RH,non-condensing | ||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95%RH | ||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||
| Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 (US) | |||
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU); I/P-O/P:1.88KVAC (US) | ||||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH | ||||
| EMC Emission | EN55015 EN61000-3-2 EN61000-3-3 (EU)≥50% Load & FCC Part 15 B (US) | ||||
| EMC Immunity | EN61000-4-2,3,4,5,6 ,11, EN61547 | ||||
| Others | Weight | 1.15KG | |||
| Dimension | 301*78*25.1mm (L*W*H) | ||||
| packing | 390*325*185mm/20PCS/CTN G.W.:24KG/CTN | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC/230VAC input , rated load and 25℃of ambient temperature. | ||||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||||
 |
 |
 |
 |
Mechanical Specification
Input & Output wiring
※Input Rubber cable 3*1.0mm², the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N)
※Output rubber cable 2*1.5mm² x2 groups for 12VDC model, Red is output ( V+) Positive, Black is output (V-) negative.
※Output rubber cable 2*1.5mm² one group for 24VDC, 36VDC, 48VDC models, Red is output ( V+) Positive, Black is output (V-) negative . Connected to LED Lamps
Dimming wiring
※Dimming Rubber cable 2*1.0mm², Blue DA/N and White DA/L (No polar) connected to the DALI BUS when use DALI function .
Blue (N) is connected to AC (N) while white (L) is connected to Push dim switch dimmer( L) when use Push function..
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Note: there is external antenna at output side. Don't disassemble!
Dimming operation
※Note: For DALI Dimming Wiring Diagram 3, please noted that only one DALI power is need in the DALI bus, so no extra DALI power is needed if the Master or Dimmer already includes the DALI Power.
DALI-2 address setting Operation
※The default address for the DALI-2 LED driver is 001.
※Address settings device:
※Address settings:
① RDM setting address:
Set the address by the RDM device. For detailed operation, please refer to RDM device instruction manual.

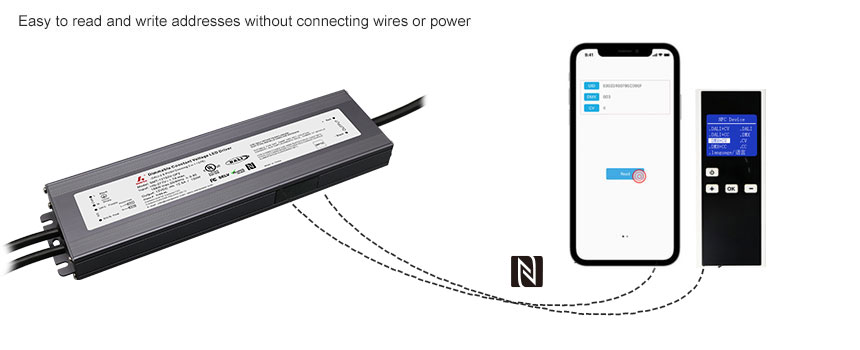

② NFC setting address:
The DALI-2 led drivers’ address can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers.
■ Adjust output voltage Operation
※Adjust output voltage slightly for DALI-2 LED drivers
1) The driver output voltage can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers.
2) Voltage range: level 1~10, each level is 0.2V. The default output voltage level is 1.
|
Rated Vol. |
Level 1 |
Level 2 |
Level 3 |
Level 4 |
Level 5 |
Level 6 |
Level 7 |
Level 8 |
Level 9 |
Level 10 |
|
12V |
12.00V |
12.16V |
12.32V |
12.48V |
12.64V |
12.80V |
12.96V |
13.12V |
13.28V |
13.50V |
|
24V |
24.00V |
24.22V |
24.44V |
24.66V |
24.88V |
25.1V |
25.32V |
25.54V |
25.66V |
26.00V |
|
36V |
36.00V |
36.22V |
36.44V |
36.66V |
36.88V |
37.10V |
37.32V |
37.54V |
37.66V |
38.00V |
|
48V |
48.00V |
48.44V |
48.44V |
48.66V |
48.88V |
49.10V |
49.32V |
49.54V |
49.66V |
50.0V |
■ How to set the DALI-2 CV LED driver address by the NFC app or NFC device ?
Simple operation about DALI-2 LED driver address reset and adjusting output voltage slighting by a mobile with NFC APP (set NFC) or NFC handheld device (NFC read & write device: NFC-RW)
Related Products
|

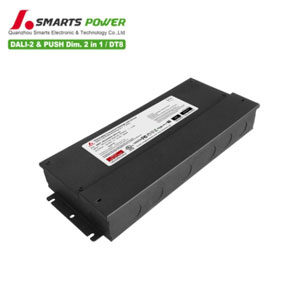

high power CCT DALI-2 dimmable led J-box driver 300w With protections against overcurrent, overvoltage, short circuit, high safety and durability
