UL approval 12v ligh power 300w 5 in 1 dimming waterproof electronic led driver ip67

UL approval 12v ligh power 300w 5 in 1 dimming waterproof electronic led driver ip67

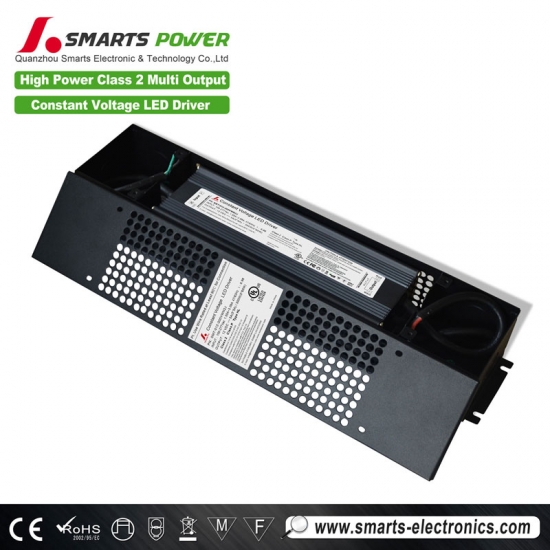

100% waterproof IP67 protection class,with aluminum metal housing that excellent for outdoors using. Phase dimming and  triac dimming both are supported.  There is no doubt that most LUTRON dimmers 100-130V /277V work well with this waterproof led power supply.

  Specification:

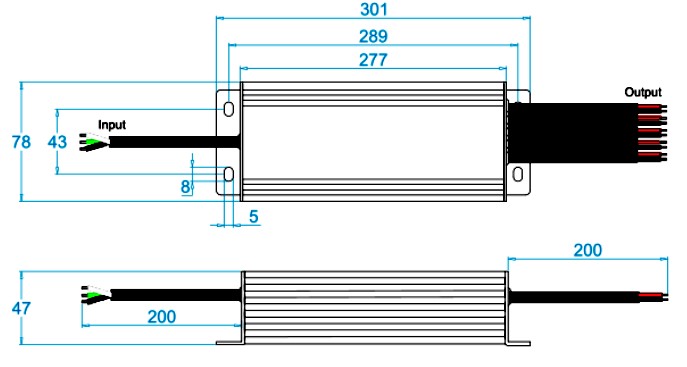

  ■Mechanical Specification

Model:  SMT-012-300VTD52

Ø Input wire 18AWG Black and White to be connected to AC L and N ,Green wire go ground,

Ø Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-)  to LED Negative side (-).

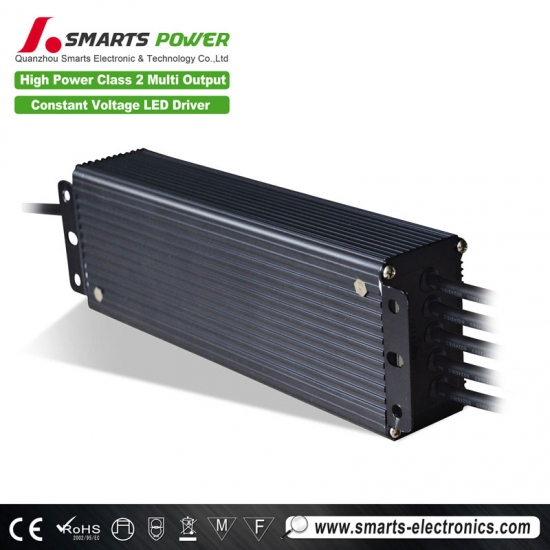

Note: Three groups output cables. of SMT-024-288VTHW2  and five groups of SMT-012-300VTHW2

Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.

Ø Dimming cable 2*18AWG,DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)

Ø Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.

Note: Output wire : Tolerance:P 0.5-2mm

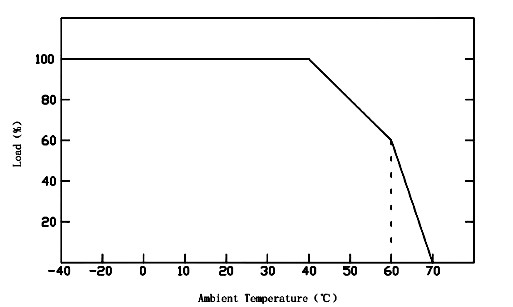

  Derating Curve

ü Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.

Dimming Operation and Connecting Diagram

ü Using two ways of dimming at the same time,you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;

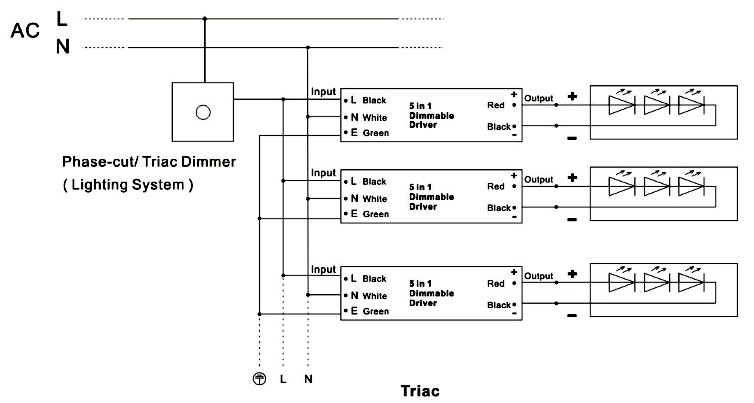

Using one dimming ---TRIAC/Phase cut dimming

1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.

2.Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers

3.Min loading is about 10%

4.Please try to use dimmers with power at least 1.5 times as the output power of the driver.

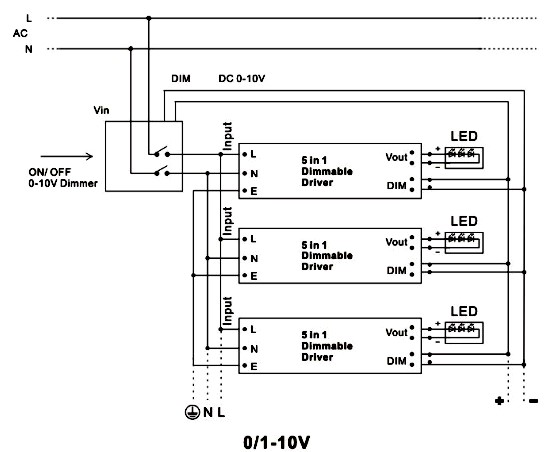

※Using one dimming ---0-10/1-10V dimming

  ■ Instruction:

※This driver should be installed by qualified and professional person;

※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

※Ensure that wiring is correct before test in order to avoid light and power supply damage;

※If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com  Or take a phonecall: 0086-18016688251

Welcome to login our official website: www.smarts-electronics.com   /  www.swinpower.com

  Compatible Dimmer Type

The 300w led driver is UL,cUL approval. PF value is greater than 0.98, and efficiency is more than 0.89. If  you are search for associated lights to test, we think Coxotech  led strips light is compatible.

  Related Products

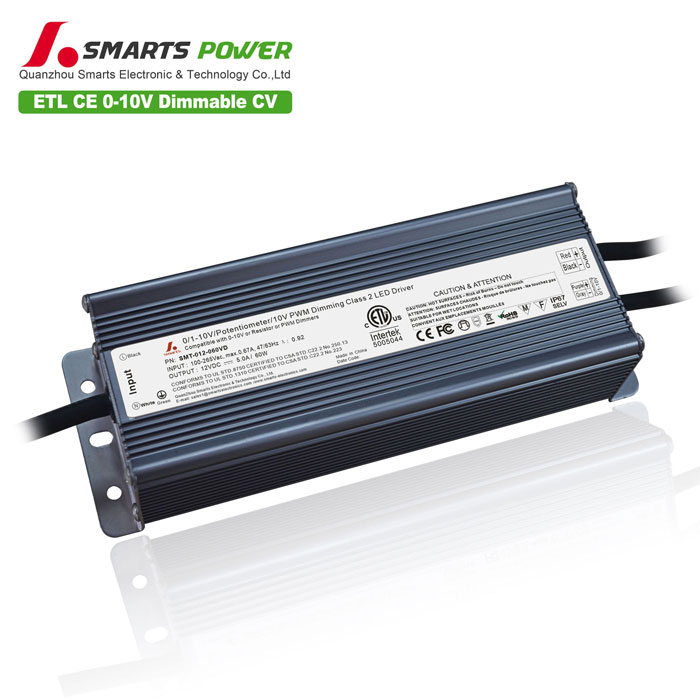

The waterproof electronic led driver ip67 is 12v, 60w, 5A. It is 0-10v dimming with no flicker. ETL CE FCC ROHS approval, 5 years warranty. Model：SMT-012-060VD intput voltage：100~265VAC PF>0.9 Size :  200*68.5*45mm Weight：1.1KG/pcs
