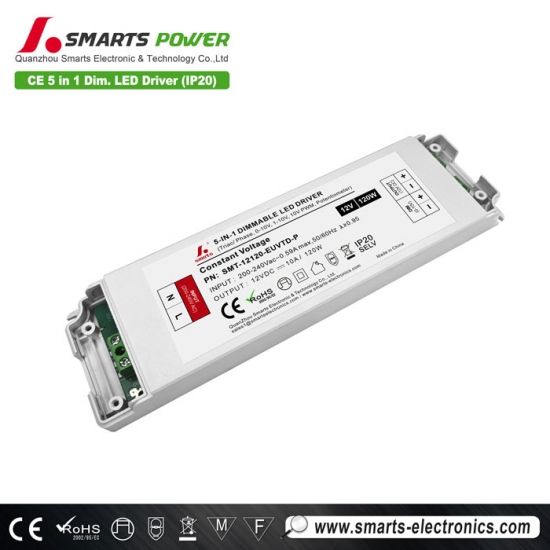

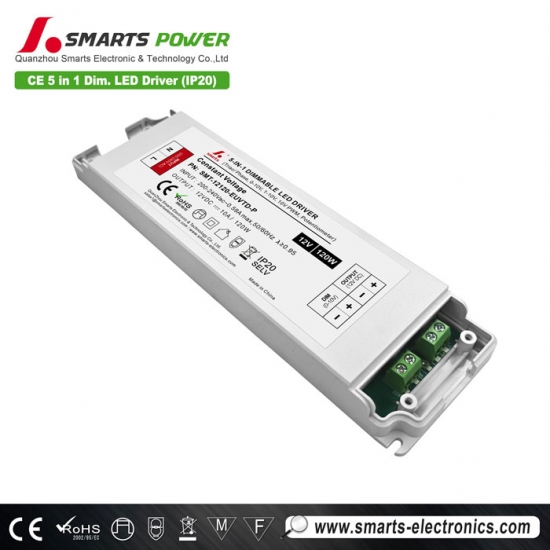

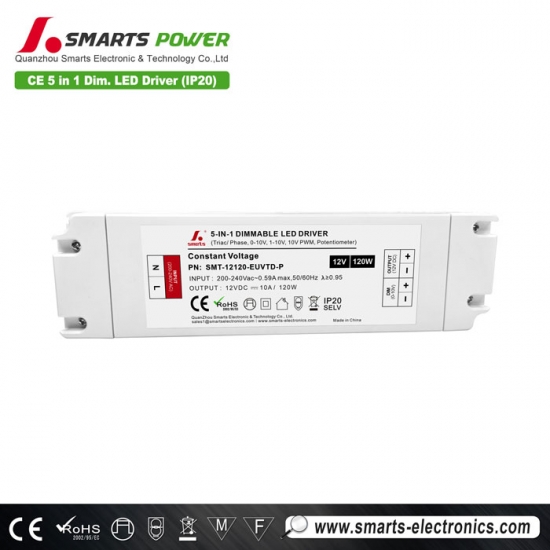

12v 24v triac & 0 10v dimmable constant voltage 100W led light driver for indoor
Plastic housing 120W 5 in 1 dimmable LED driver Waterproof level ip20, natural air cooling. With short circuit / over temperature / overload protection. CE certification, mainly sold to Europe. With 7 years warranty
Specification
| Model Number | SMT-12120-EUVTD-P | SMT-24120-EUVTD-P | |
| Output | Rated Power | 120W | |
| Rated Voltage | DC12V | DC24V | |
| Rated Current | 10A | 5A | |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 200-240V | |
| Frequency Range | 47-63Hz | ||
| Efficiency (Typ.) | 87%@230VAC | 89%@230VAC | |
| THD | THD≤20% (@100% load) | ||
| Power Factor (Typ.) | 0.99@ 230VAC (full loading) | ||
| AC Current (Typ.) | 0.6A | ||
| Inrush Current (Typ.) | <20A | ||
| Leakage Current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Loading | Intelligently reduce the output voltage, auto-recovery or re-power on to recovery | ||
| Over Temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Protection Class | II | ||
| Environment | Working Temp. | Tcase=-40℃ ~ +60℃ (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | |
| Working Humidity | 20 ~ 95% RH non-condensing | ||
| Storage Temp. Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp. Coefficient | ±0.03%/℃ (0~50℃) | ||
| Vibration | 10-500Hz,2G 12 minutes/cycle, Period 72 minutes each along X,Y,Z axes | ||
| Safety & EMC | Safety Standards | EN613471, EN61347-2-13 | |
| Withstand Voltage | I/P-O/P:3KVAC | ||
| Isolation Resistance | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMS | EN61000-3-2; EN61000-3-3; EN61547 | ||
| EMF | EN62493-2010 | ||
| Others | IP Rating | IP20 | |
| Weight | 0.3Kg | ||
| Size | L185xW56xH19mm | ||
 |
 |
 |
 |
Mechanical Specification
MCB recommendation
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 6 |
| 13A | 8 | |
| 16A | 9 | |
| 20A | 12 | |
| 25A | 15 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 14 |
| 13A | 18 | |
| 16A | 22 | |
| 20A | 28 | |
| 25A | 35 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
Dimming Operation
Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
a phase /Triac dimmer or lighting system.
2. Working with forward phase /leading edge, MLV and Reverse phase /trailing edge, ELV, TRIAC dimmers or light system.
3. Min. loading is about 10%
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
(The driver input is connected to the dimmer.)
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
(The driver is independently connected to the input.)
Related Products

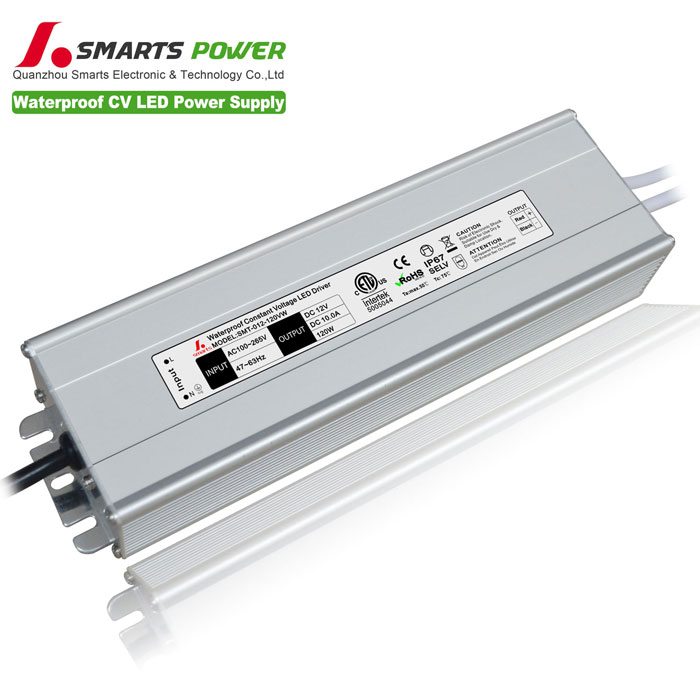

Aluminum housing 150W constant voltage LED driver Waterproof grade IP67, can effectively prevent water and dust, comply with global safety lighting regulations, with 7 years warranty
