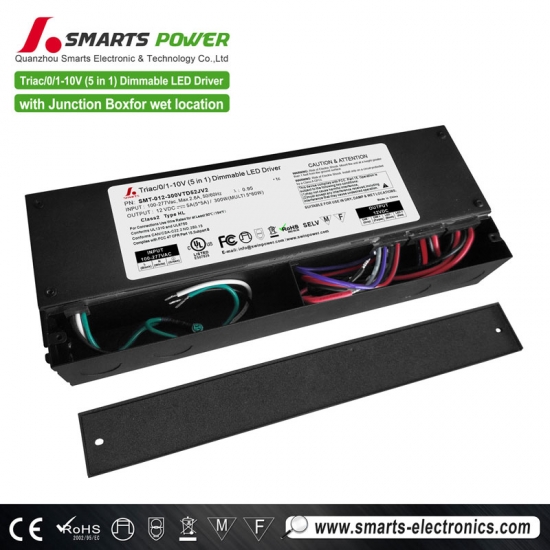

PWM output constant voltage TRIAC & 0 10v dimmable 300w 12v led power supply driver class 2
100-277vac universal input voltage range, 300W triac & 0 10v dimmable led power supply with short circuit/overvoltage/overtemperature protection function, built-in PFC function, PF>0.99. UL certified, compliant with global safety lighting regulations, mainly sold to North America
Product parameters
| Model |
SMT-012-300VTD52JV2 (1.0 version) SMT-012-300VTD52JWV2 (2.0 version) |
SMT-024-288VTD52JV2 (1.0 version) SMT-024-288VTD52JWV2 (2.0 version) |
|
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Voltage Tolerance | ±0.5V | ||
| Load Regulation | ±2% | ±1% | |
| Rated current | 25A (multi current 5*5A) | 12A(multi current 3*4A) | |
| Rated power | 300W (5*60W) | 288W (3*96W) | |
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor (Typ.)@full load | 0.95@120VAC 0.95@277VAC | 0.99@120VAC 0.96@277VAC | |
| THD(Typ.)@full load | <20% | ||
| Inrush Current(Typ.) | 35A (twidth=960us) @120VAC ; 43A (twidth=1ms) @277VAC | ||
| Efficiency(Typ.)@Full Load AC Current(Typ.) | 85%@120VAC 90%@277VAC 3.6A@100VAC | 87%@120VAC 89%@277VAC 3.4A@100VAC | |
| Leakage current | <0.50mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over load | ≤120% constant current limiting, auto-recovery | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Over Current | ≤1.4*I out | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL8750+UL1310 | |
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| EMC IMMUNITY | EN61000-4-2,3,4,5,6,11(Surge 4KV) | ||
| Others | Weight | 2.4Kg | |

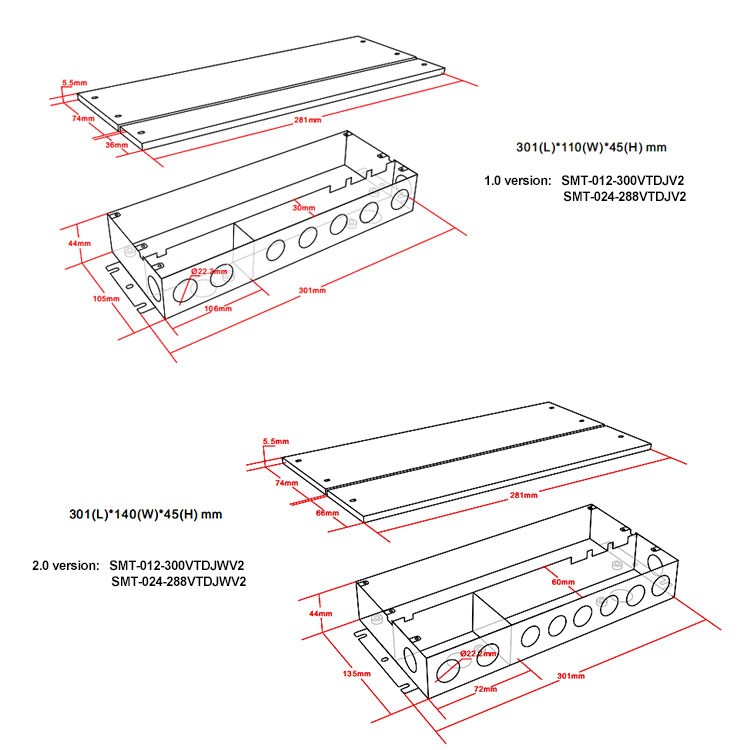

| Size |
1.0 version: 301*110*45mm 2.0 version: 301*140*45mm |
||
| packaging | 365*210*245mm/8pcs /CTN G.W.:21KG/CTN 385*335*200mm 20PCS/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated load and 25℃of ambient temperature. | ||
| 2..Tolerance:includes set us tolerance,line regulation and load regulation. | |||
 |
 |
 |
 |
Mechanical Specification
Input wire Black and White to be connected to AC L and N ,Green wire go ground,
Output wire Red to LED Positive side (+) , Black to LED Negative side (-).
Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
■ Connecting Diagram
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2.Work with forward phase /leading edge ,MLV and reverse phase /trailing edge ,ELV,TRIAC dimmers.
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.

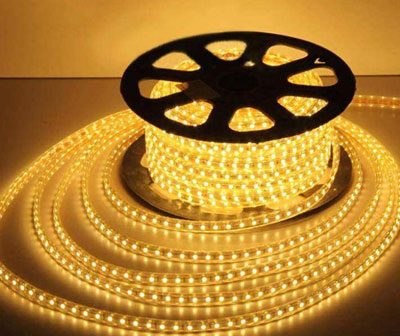

Compatible tape lighting Type
This 300W Triac/0-10V/1-10V/Potentiometer/10V PWM dimmable led driver PWM signal output function, UL certification, complies with global safety lighting regulations, has strong compatibility, and can work well with most dimmers on the market Connect to use
Related Products
|

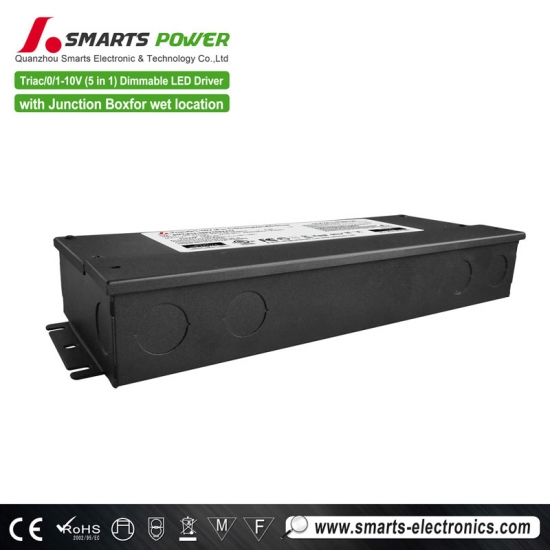

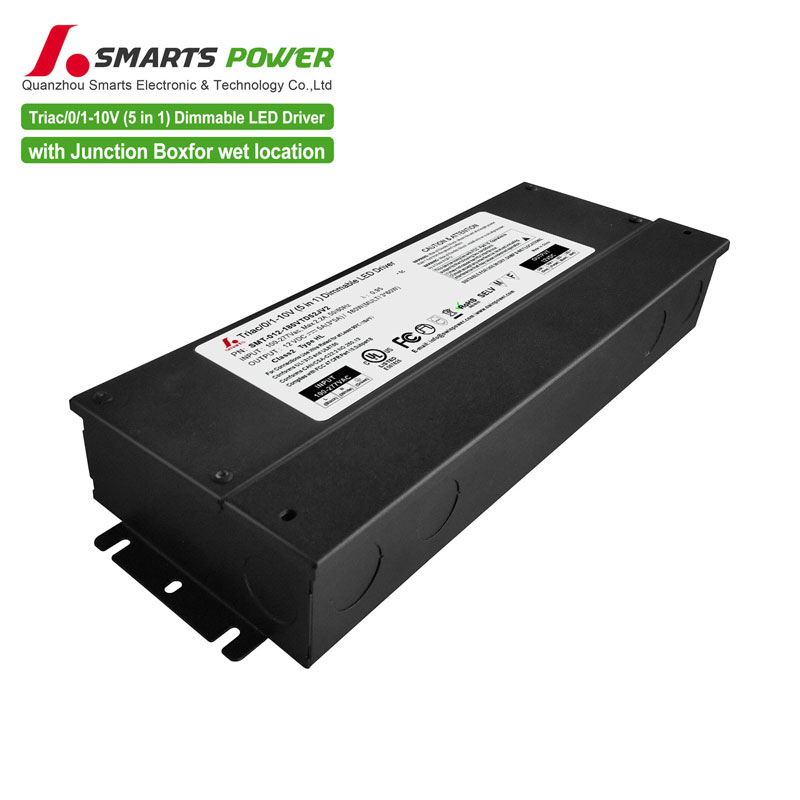

This 180W TRIAC & 0 10V dimmable led driver is designed to be integrated with the junction box. It uses natural air convection cooling and has good heat dissipation. It is suitable for indoor LED lighting projects and has a 7-year warranty.
