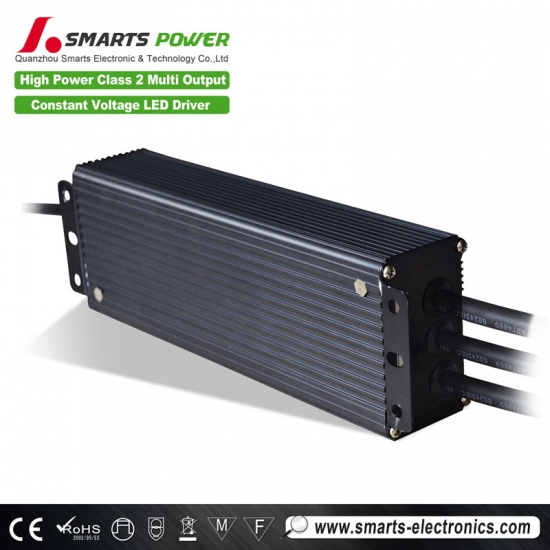

Smarts triac +0-10v 12 180w volt LED waterproof transformer dimmable led driver meet Class 2 standard
You may interested in 12v dimmable led driver which combines two dimming mode :triac dimming and 0-10v dimming. If 0-10v dimming mode is needed, we would like recommend Eaton dimmers 120-277V.
Specification
|
model |
SMT-012-180VTD52 |
SMT-024-192VTD52 |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
15.0A (3*5A) |
8.0A (2*4A) |
|
|
Rated power |
180W (3*60W) |
192W (2*96W) |
|
|
Voltage Tolerance |
±0.5V |
±0.5V |
|
|
Load Regulation |
±1%
|
±1%
|
|
|
Voltage Regulation |
±0.5% |
±0.5% |
|
|
Input |
Voltage Range |
100~277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
THD(Typ.) @full load |
<20% |
||
|
Power Factor ( Typ.） |
0.99@120VAC 0.94@277VAC |
0.99@120VAC 0.94@277VAC |
|
|
Full Load Efficiency(Typ.) |
86%@120V 88%@277VAC 79% |
87%@120V 89%@277VAC
|
|
|
AC Current（Typ.） |
2.2A@100VAC |
2.3A@100VAC |
|
|
Inrush Current（Typ.） |
19A ,50%,1.3ms @120VAC ; 38A,50%,960us @277VAC
|
||
|
Leakage current |
﹤0.50mA |
||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover afterfault conditionisremoved |
|
|
Over temperature |
100℃±10℃ shut down o/p voltage,automatically recover after cooling.
|
||
|
Over Loading |
≤120% constant current limiting, auto-recovery |
||
|
Over voltage |
≦140VAC(90~135V) ,≦270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:1.88KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level（surge4KV） |
||
|
Others |
NetWeight |
1.7Kg |
|
|
Size |
278*78*47mm (L*W*H) |
||
|
packing |
329*279*176mm ,10PCS/ctn |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at110V/277VAC input , rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |

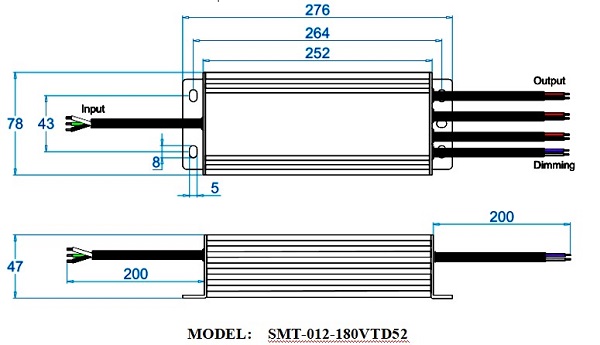

Mechanical Specification:
MODEL: SMT-012-180VTD52
Ø Input wire 18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Ø Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-) to LED Negative side (-).
Ø Three groups output cables. of 12Vdc 180W and two groups of 24Vdc 192W
Ø Dimming cable 2*18AWG,DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Ø Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.

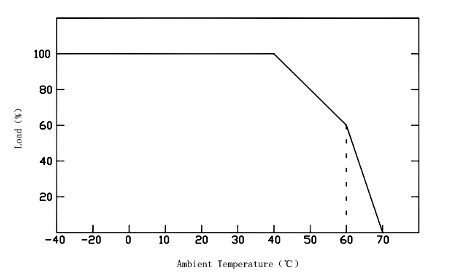

Derating Curve
ü Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.

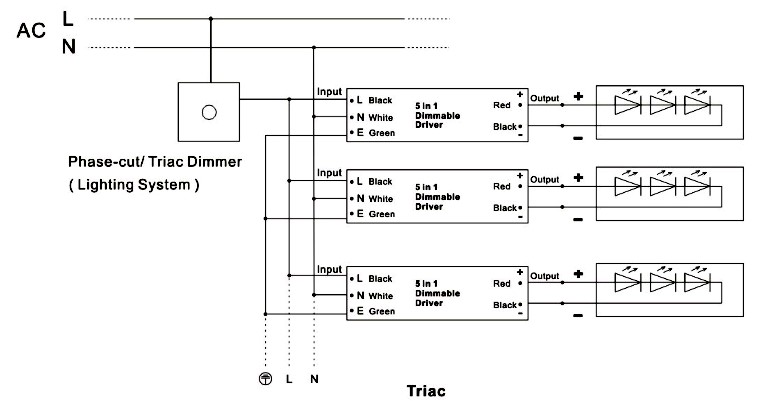

n Dimming Operation and Connecting Diagram
ü Using two ways of dimming at the same time,you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
n Using one dimming ---TRIAC/Phase cut dimming
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2.Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers
3.Min loading is about 10%
4.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
■ Instruction:
※This driver should be installed by qualified and professional person;
※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
※Ensure that wiring is correct before test in order to avoid light and power supply damage;
※If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com Or take a phonecall: 0086-595-22863721 ext.808
Welcome to login our official website: www.smarts-electronics.com / www.swinpower.com
Compatible Light Type
This model is high power but Class 2. The led driver for multiple leds compatible with all 12v 24v constant voltage LEDs, such as cabinet light, LED modules, and light bar. Ustellar strips light seems an excellent choice.
Related Products

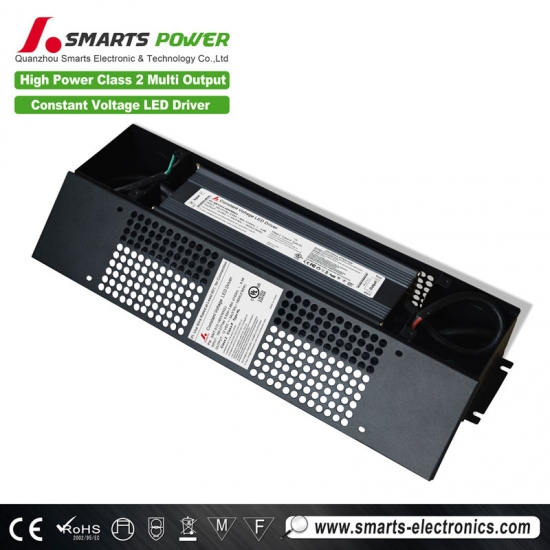

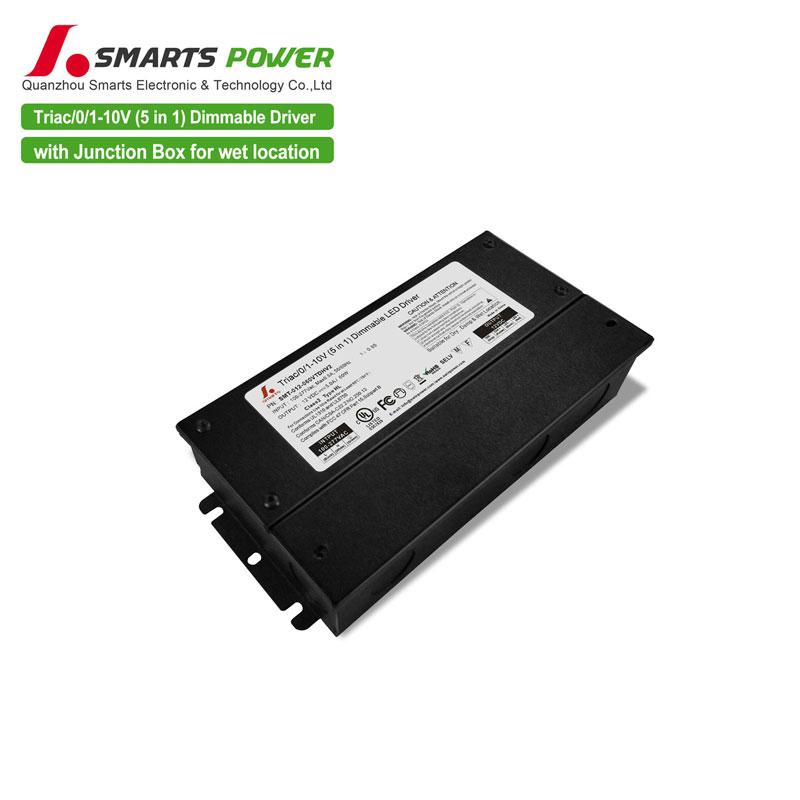

The led driver dimming control is bulit with junction box, which is suitable for North American. It is Class 2, Class P, type HL.
