Non-dimmable LED Driver

slim size DALI-2 & PUSH D4Idimmable constant current led driver 160ma-1600ma

Smarts DALI-2 D4I intelligent dimmable LED driver has built-in active PFC function, with working efficiency up to 90%. Constant current working mode. With short circuit/overload/over temperature protection function.
  • item no.:

    SMT-DI060W160-D4PP
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12V-54V
  • Output Current:

    160mA-1600mA
  • Working Mode:

    constant current
  • Certification:

    UL,FCC, CE, ROHS
  • Warranty:

    7 years
inquiry now
product details

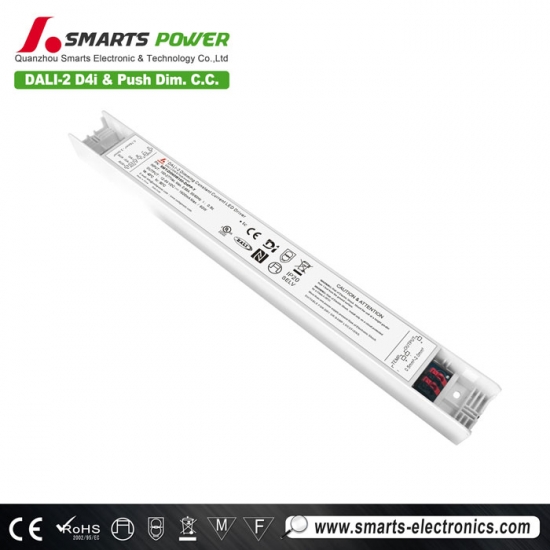

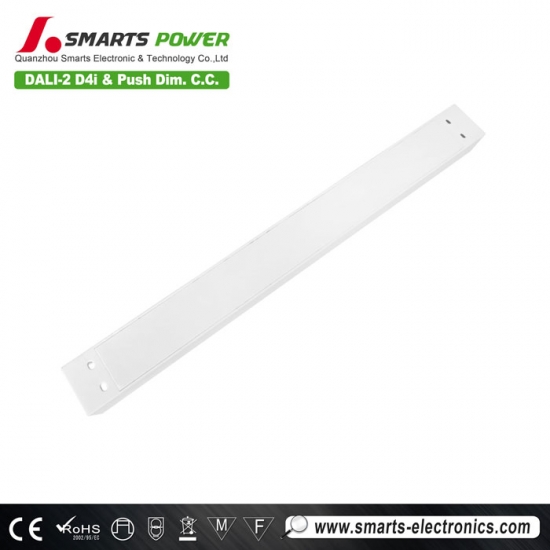

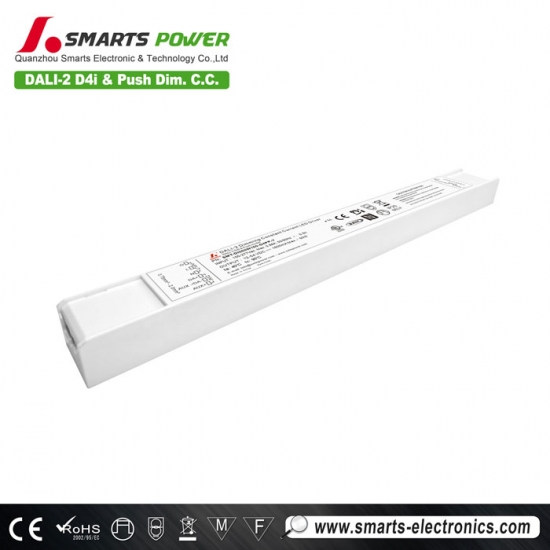

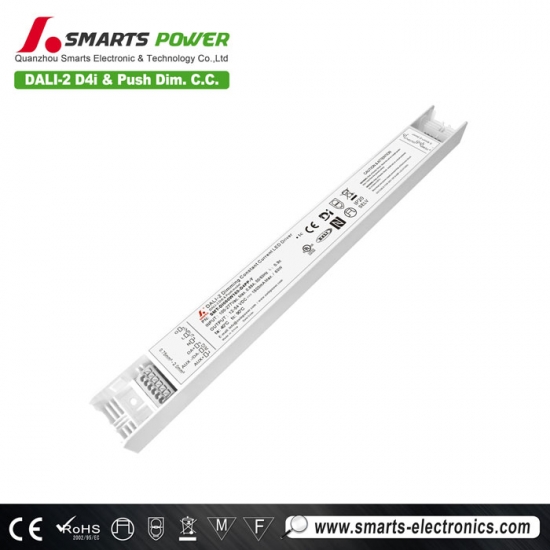

slim size DALI-2 & PUSH D4Idimmable constant current led driver 160ma-1600ma

Constant current DALI-2 & PUSH D4I dimmable led driver plastic shell design, waterproof level ip20, suitable for indoor dry space smart led lighting project installation. The body adopts natural air cooling. With 7 years warranty


  Specification

Model SMT-DI060W160-D4PP
Certificate UL / FCC / CE / RoHS / Reach
Output Rated current 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 1.6
DC Voltage 12-54 12-54 12-54 12-54 12-54 12-50 12-46 12-43 12-40 12-38
Rated power  37.8 43.2 48.6 54 59.4 60 59.8 60.2 60 60.8
Voltage Tolerance ±0.5V
Voltage Regulation ≤0.5%
No-load voltage 60Vmax
Load Regulation ≤1%
Input Voltage Range 100-277VAC
Frequency Range 47 - 63Hz
Power Factor @ full load 0.998@120VAC 60Hz    0.972@230VAC 50HZ     0.957@277VAC 60Hz
THD(Typ.) @ full load 5.18%@120VAC 60Hz   16.31%@230VAC 50HZ   15.42%@277VAC 60HZ
Efficiency @ full load 88.4%@120VAC 60Hz   90.1%@230VAC 50HZ     89.7%@277VAC 60HZ
No load power (Max) 0.68W@120VAC 60Hz   0.80W@230VAC 50HZ    0.95W@277VAC 60HZ
Standby power (Max) 0.21W@120VAC 60Hz   0.29W@230VAC 50HZ    0.42W@277VAC 60HZ
AC Current (Max.) 0.75A
Inrush Current (Typ.) 28.7A, 204us@50%Ipeak120V    55.2A, 98us@50%Ipeak230V    66.0A, 220us@50%Ipeak277V
Leakage current <0.5mA
Protection Short Circuit Hiccup mode, recovers automatically after fault condition is removed
Over temperature Ambient temp.Over 45±5℃, recovers automatically after temp. drops.
Ambient temp. over 50±5℃, output current will be reduced to 50%;
Ambient temp.over 60±5℃, output current will be reduced to 0%;
Environment Working TEMP -40~+60℃ (see below derating curve)
Working Humidity 20 -90%RH  non-condensing
Storage TEM.,Humidity -40 - +80℃,10 - 95% RH
TEMP.coefficient ±0.03%/℃(0 - 50℃)
Vibration 10~500Hz, 2G 10min./1 cycle, period for 60min. each along X,Y,Z axes
Safety & EMC Safety standards EN61347-1   EN61347-2-13(EU)
Withstand voltage I/P-O/P:3.75KVAC (EU)
Isolation resistance I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH
EMC Emission EN55015    EN61000-3-2,3(EU)
EMC Immunity EN61000-4-2,3,4,5,6,11   EN61547
Power supply Auxiliary output 21.6V-26.4V/125mA (auxiliary power supply loaded state)
power supply 21.6V-30V (auxiliary power supply unloaded state)
DALI bus power supply 22V/55mA(Max)
Others Net Weight 0.3KG
Dimension 342*32.8*24.1mm (L*W*H)
Packing ****pcs /CTN
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature.
2. To extend the driver's using life , please reduce the loading at lower input voltage .
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

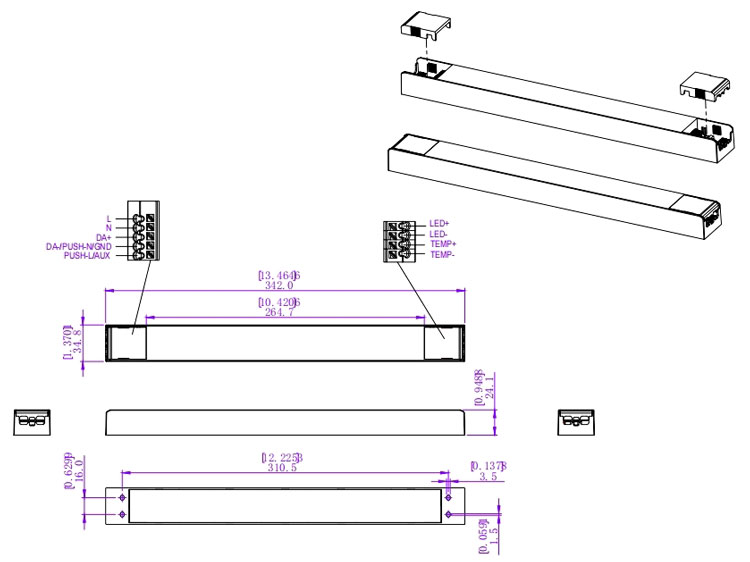

  Mechanical Specification



1.Input with terminals Grey wago 250206: Live Wire AC (L), Neutral Wire AC(N) .

2.Output LED SEC with terminals Red Black wago 250204: output Positive (LED+), output negative (LED-). Connected to LED Lamps.

3.DALI Dimming terminals:Grey wago 250206:when DALI dimming, signal dimming DA1, DA2 ( No polar ) and PUSH connected to the BUS of the DALI Master.

4.Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

5.This product is also suitable for temperature control. It is recommended to use NTC for external temperature sensors, and the resistance value when triggering protection is between 1 Ω -20K Ω.

Warm tips:

1.Suggested wire diameter : Input: 0.2mm2-1.5mm2/AWG24-16.


  Dimming operation

Connect the DALI signal cable to the DALI bus of the controller (DALI Master), and after the controller scans and assigns an address, the power supply can be dimmed and controlled.

If PUSH dimming is required (SMT-DI060W160-D4PP-T only has PUSH dimming function), a normally open button switch needs to be connected in series between the PUSH positive electrode and

the live wire. The DALI negative electrode (DA -) is directly connected to the neutral wire, and dimming is achieved by long pressing the button switch, while short pressing the button switch turns

on and off the lamp.

Attention:

1.The SMT-DI060W160-D4PP series has a bus power supply function. If the bus power supply function is turned on (default off, can be turned on in NFC or upper computer), there is no need for

external power supply. If the power supply function is turned off, an additional DALI power supply (DALI Power) is required.

2.The selection of PUSH switches should consider the maximum local power supply voltage.




  Related Products

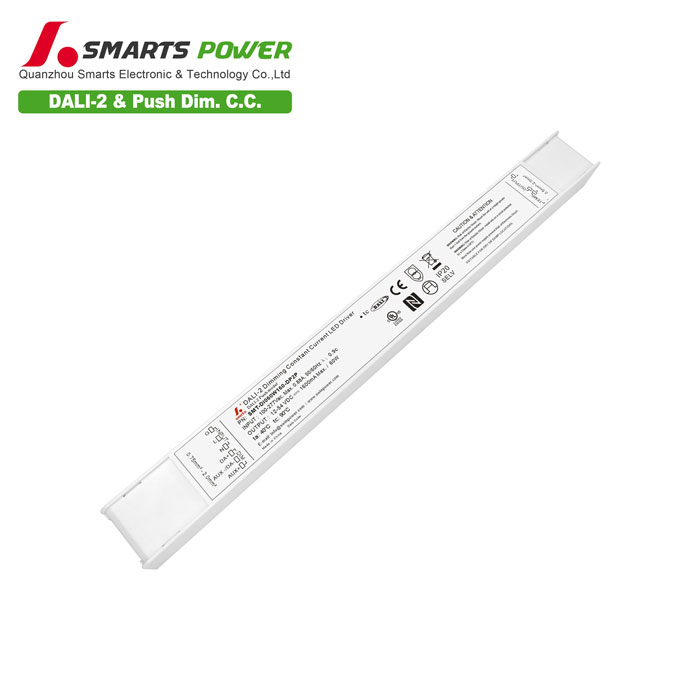

DALI-2 & PUSH intelligent dimming LED driver 60W has built-in NFC intelligent programming module. Users can read, write and program power data through NFCApp. With 7-year warranty
