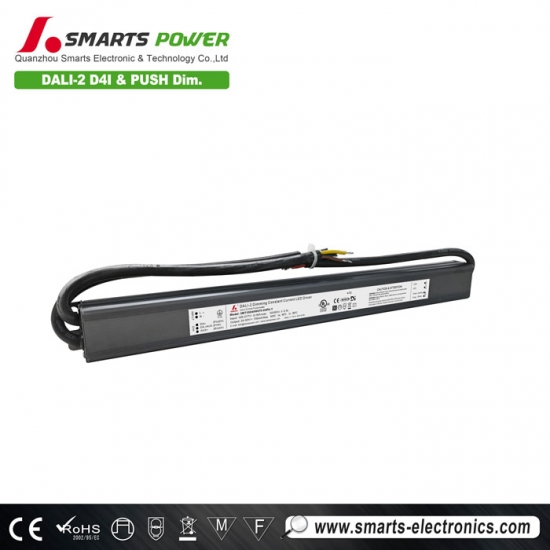

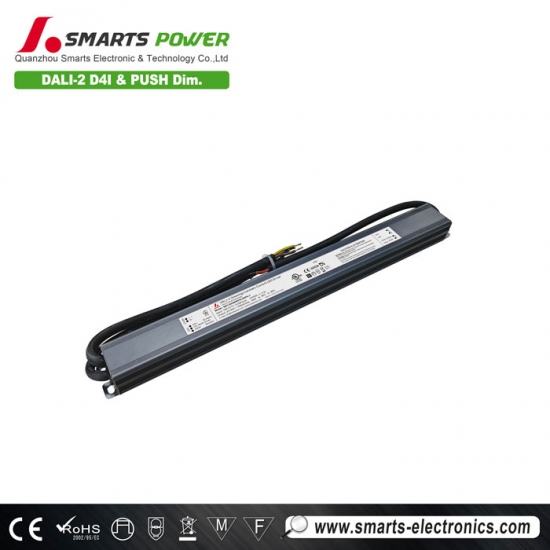

24v-93v DALI-2 & PUSH D4i dimmable constant current led driver power supply 40W ip66
The new DALI-2 & PUSH D4I dimmable LED driver has a built-in intelligent NFC programming module. Through 0.1% ultra-deep dimming, the brightness and color temperature of the light can be precisely controlled. The staff can read and write power data through the NFCApp. Save operating space.
Specification
| Model | SMT-DI040W070-D4PA | |
| Certificate | UL/ FCC / CE / RoHS / Reach / NFC | |
| Output | Rated current | 70mA-700mA (multiple current for choice freely by ProNFC) |
| DC Voltage | 12V-54V | |
| Rated power | 20Wmax | |
| Voltage Tolerance | 0.85% | |
| No-load voltage | 33Vmax | |
| Output power | 60Wmax | |
| Line Regulation | <0.5% | |
| Load Regulation | <0.5% | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor @ full load | >0.91 | |
| THD(Typ.) @ full load | <15% | |
| Efficiency @ full load | >82%@120VAC 60Hz >82%@230VAC 50HZ >81%@277VAC 60HZ | |
| No load power (Max) | <0.8W | |
| Standby power (max.) | <0.5W | |
| AC Current (Max.) | <0.56A | |
| Inrush Current (Typ.) | 17.5A, 29.1us@50%Ipeak@120V 33.6A, 864ns@50%Ipeak@230V 40.4A, 26us@50%Ipeak@2770V | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Hiccup mode, restarts automatically after fault condition is removed |
| Over load | Hiccup or Constant power mode, restarts automatically after fault condition is removed | |
| Over temperature |
Ambient temp.Over 55 ± 5℃, output current will be reduced to 50%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops. Ambient temp.Over 75 ± 5℃, output current will be reduced to 0%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops. |
|
| Environment | Working TEMP | -40~+60℃ (see below derating curve) |
| Working Humidity | 20 -95%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 (US) |
| Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) |
|
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |
| EMC Emission | EN55015 EN61000-3-2,3(EU) & FCC Part 15 ,Subpart B; ANSI C63.4:2014 (US) | |
| EMC Immunity | IEC/EN61000-4-2,3,4,5,6,8,11; EN/EN61547(EU) | |
| Power supply | Strobe test standard | IEEE 1789 Flicker free |
| lightning surge | DM:2KV CM:4KV | |
| Others | Net Weight | 0.3KG |
| Dimension | 238*38.5*23.6mm (L*W*H) | |
| Packing | ****pcs /CTN | |
| Notes |
1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. 2. To extend the driver's using life , please reduce the loading at lower input voltage . |
|
 |
 |
 |
 |
Mechanical Specification
1.Input cable Rubber 3*1.0mm2: the Brown cable to (L), the Blue cable to (N) and the Yellow/Green cable to (FG).
2.Output cable Rubber 2*1.0mm2: Red cable (+) to LED Positive side(+), Black cable (-) to LED Negative side (-).
3.Dimming cable Rubber 3*0.824mm2: Purple (DA+), Pink (DA-/PUSH/N) and Brown(PUSH/L).
4.Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
5.This product is also suitable for temperature control. It is recommended to use NTC for external temperature sensors, and the resistance value when triggering protection is between 1 Ω -20K Ω.
Dimming operation
Related Products
100-277VAC universal input voltage range 20W Aluminum housing DALI-2 & PUSH dimmable LED driver Compact body, suitable for outdoor small space lighting project installation. With 7 years warranty
Mode：SMT-DI020W070-D4PA intput voltage：100-277vac
Size : 159.5*43*20mm |
