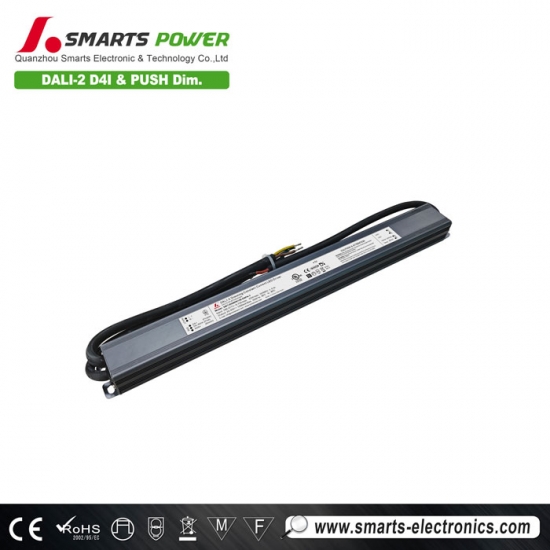

100-277VAC dali-2 & push D4I dimmable 60W constant current driver 120ma-1200ma

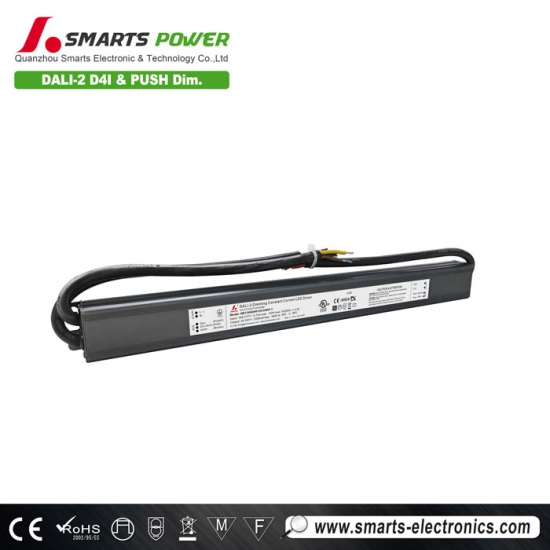

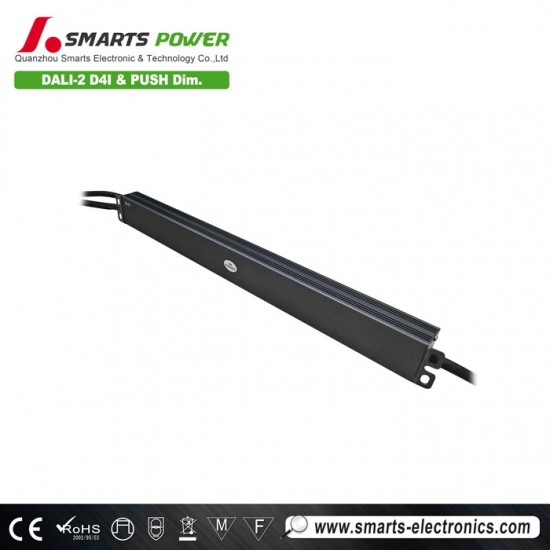

This SMT-DI060W120-D4PA is a DALI-2 D4I dimmable led power supply. Aluminum housing design, ultra-thin size 332*38.5*23.6MM. Waterproof grade IP66, suitable for outdoor small space lighting project installation. With 7-year warranty
Specification
| Model | SMT-DI060W120-D4PA | |
| Certificate | UL/ FCC / CE / RoHS / Reach / NFC | |
| Output | Rated current | 120mA-1200mA (multiple current for choice freely by ProNFC) |
| DC Voltage | 24V-93V | |
| No-load voltage | 98Vmax | |
| Voltage Tolerance | ±30mA(Rated output current of corresponding gear) | |
| Voltage Regulation | ≤0.5% | |
| Rated power | 60Wmax | |
| Line Regulation | <1% | |
| Load Regulation | <0.1% | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor (Typ.) | PF≥0.94 | |
| No load power (Max) | <1.5W | |
| Standby power (Max) | <0.5W | |
| THD(Typ.) @ full load | ≤15% | |
| Efficiency @ full load | ≥88%@120VAC 60Hz ≥89%@230VAC 50HZ ≥89%@277VAC 60HZ | |
| AC Current (Max.) | 0.75A | |
| Inrush Current (Typ.) | 66.0A, 220us@50%Ipeak277V 55.2A, 98us@50%Ipeak230V 28.7A, 204us@50%Ipeak120V | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Over voltage | Hiccup or constant power mode, reboots automatically after fault condition is removed | |
| Over temperature | Ambient temp. over 50±5℃, output current will be reduced to 50%;Ambient temp.Over 45±5℃,recovers automatically. | |
| Ambient temp.over 60±5℃, output current will be reduced to 0%;Ambient temp.Over 45±5℃,recovers automatically. | ||
| Environment | Working TEMP | -40~+60℃ (see below derating curve) Tc point temperature (Ta=40 ℃)89℃ |
| Working Humidity | 20 -95%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750 UL1310(US) |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) | |
| Strobe test standard | Compliant with IEEE 1789 without strobe | |
| THD test standard | Compliant with IEC/EN 61000-3-2 | |
| lightning surge | DM:2KV CM:4KV | |
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |
| EMC Emission | EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US) | |
| Others | Net Weight | 0.3KG |
| Dimension | 332*38.5*23.6mm (L*W*H) | |
| Packing | ****pcs /CTN | |
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | |
| 2. To extend the driver's using life , please reduce the loading at lower input voltage . | ||
 |
 |
 |
 |

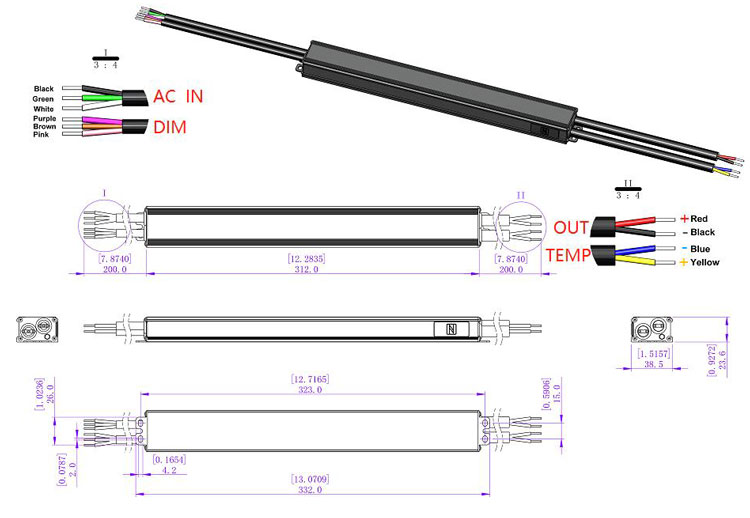

Mechanical Specification
1.Input cable Rubber 3*1.0mm2: the Brown cable to (L), the Blue cable to (N) and the Yellow/Green cable to (FG).
2.Output cable Rubber 2*1.0mm2: Red cable (+) to LED Positive side(+), Black cable (-) to LED Negative side (-).
3.Dimming cable Rubber 3*0.824mm2: Purple (DA+), Pink (DA-/PUSH/N) and Brown(PUSH/L).
4.Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
5.This product is also suitable for temperature control. It is recommended to use NTC for external temperature sensors, and the resistance value when triggering protection is between 1 Ω -20K Ω.
Dimming operation
Related Products
40W DALI-2 D4I dimmable led driver 100-277vac universal input voltage. Aluminum housing design, can effectively waterproof and dustproof, protect the working life of the led driver. With 7 years warranty
Mode：SMT-DI040W140-D4PA intput voltage：100-277vac
Size : 314.7*38.5*23.6MM |
