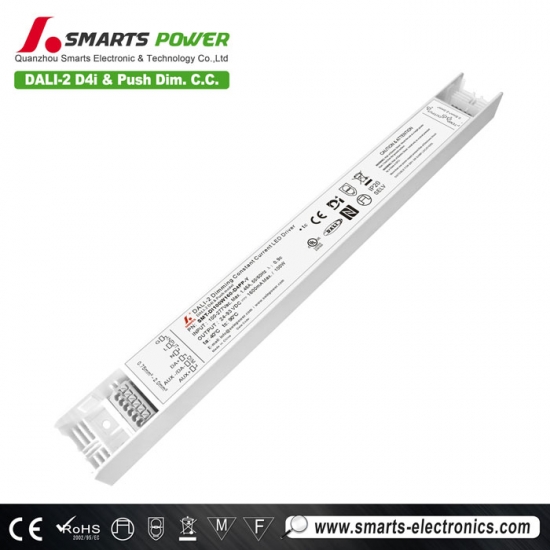

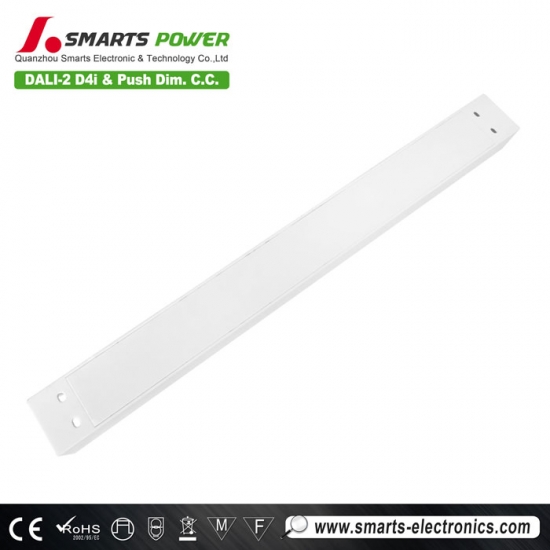

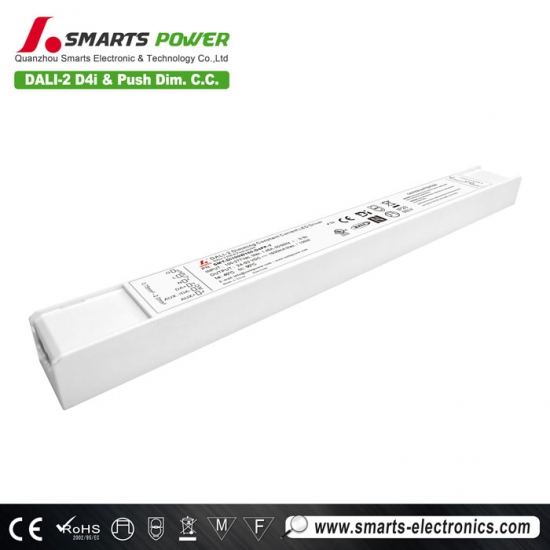

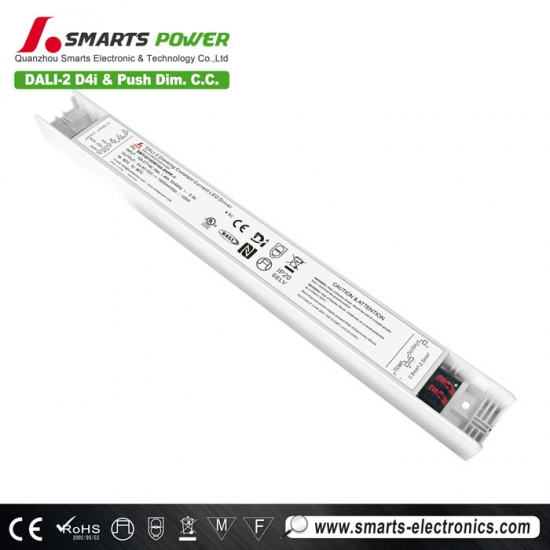

SMARTS ultra slim 100w DALI-2 D4I dimmable constant current led driver 160ma-1600ma
This DALI-2 D4I dimmable led power supply 100W has built-in active PFC function. The dimming range is smooth and flicker-free between 0.1%~100%. The NFC smart dimming module is easy to install and maintain, which can save a lot of labor.
Specification
| Model | SMT-DI100W160-D4PP | |
| Certificate | UL / FCC / CE / RoHS / Reach | |
| Output | Rated current | 160mA-1600mA (multiple current for choice freely by ProNFC) |
| DC Voltage | 24V-93V | |
| Rated power | 100Wmax | |
| Voltage Tolerance | ±30mA | |
| No-load voltage | 98Vmax | |
| Line Regulation | <0.1% | |
| Load Regulation | <0.1% | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor @ full load | ≤0.95 | |
| THD(Typ.) @ full load | <10% | |
| Efficiency @ full load | >88.5%@120VAC 60Hz >90.5%@230VAC 50HZ >90.5%@277VAC 60HZ | |
| No load power (Max) | <3W | |
| Standby power (max.) | <0.5W | |
| AC Current (Max.) | <1.33A | |
| Inrush Current (Typ.) | 29.6A, 412us@50%Ipeak120V 56.8A, 120us@50%Ipeak230V 68.4A, 580us@50%Ipeak277V | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Hiccup mode, restarts automatically after fault condition is removed |
| Over Load | ≤120% Hiccup mode or Constant power mode, recovers automatically after fault condition is removed | |
| Over temperature |
Ambient temp. over 55 ± 5℃, output current will be reduced to 50%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops. Ambient temp.over 75 ± 5℃, output current will be reduced to 0%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops. |
|
| Environment | Working TEMP | -40~+60℃ (see below derating curve) |
| Working Humidity | 20 -90%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 (US) |
| Withstand voltage | I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.8KVAC (US) | |
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |
| EMC Emission | EN55015 EN61000-3-2,3 (EU) & FCC Part 15, Subpart B;ANSI C63.4:2014 (US) | |
| EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 (EU) | |
| Lightning surge | DM:2KV CM:4KV | |
| Strobe test standard | IEEE 1789 flicker-free | |
| Others | Net Weight | 0.43KG |
| Dimension | 375.8*34.8*24.1mm (L*W*H) | |
| Packing | ****pcs /CTN | |
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | |
| 2. To extend the driver's using life , please reduce the loading at lower input voltage . | ||
 |
 |
 |
 |
Mechanical Specification
1.Input with terminals Grey wago 250206: Live Wire AC (L), Neutral Wire AC(N) .
2.Output LED SEC with terminals Red Black wago 250204: output Positive (LED+), output negative (LED-). Connected to LED Lamps.
3.DALI Dimming terminals:Grey wago 250206:when DALI dimming, signal dimming DA1, DA2 ( No polar ) and PUSH connected to the BUS of the DALI Master.
4.Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
5.This product is also suitable for temperature control. It is recommended to use NTC for external temperature sensors, and the resistance value when triggering protection is between 1 Ω -20K Ω.
Warm tips:
1.Suggested wire diameter : Input: 0.2mm2-1.5mm2/AWG24-16.
Dimming operation
Connect the DALI signal cable to the DALI bus of the controller (DALI Master), and after the controller scans and assigns an address, the power supply can be dimmed and controlled.
If PUSH dimming is required (SMT-DI060W160-D4PP-T only has PUSH dimming function), a normally open button switch needs to be connected in series between the PUSH positive electrode
and the live wire. The DALI negative electrode (DA -) is directly connected to the neutral wire, and dimming is achieved by long pressing the button switch, while short pressing the button
switch turns on and off the lamp.
Attention:
1.The SMT-DI060W160-D4PP series has a bus power supply function. If the bus power supply function is turned on (default off, can be turned on in NFC or upper computer), there is no need
for external power supply. If the power supply function is turned off, an additional DALI power supply (DALI Power) is required.
2.The selection of PUSH switches should consider the maximum local power supply voltage.
