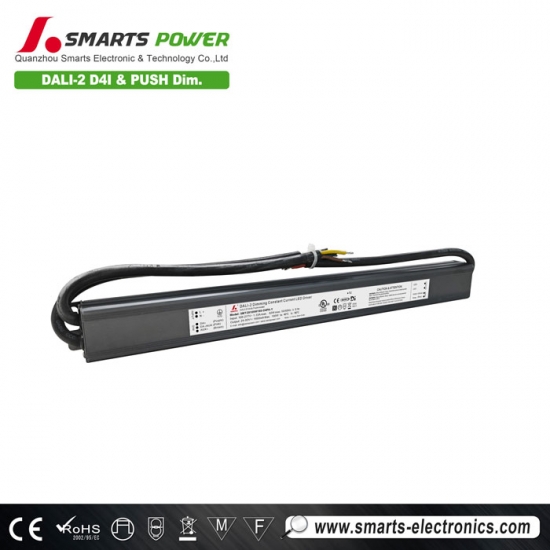

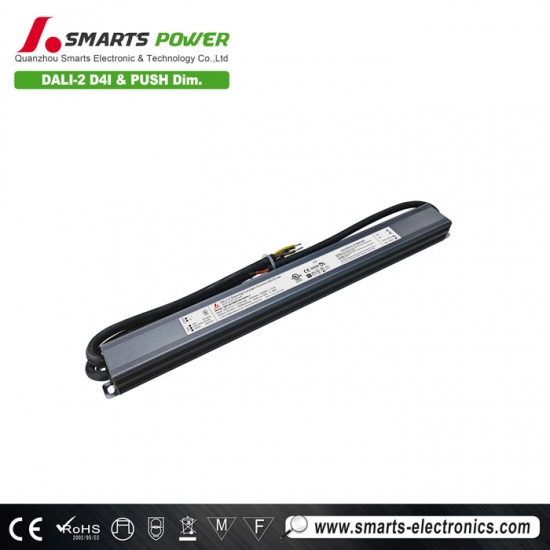

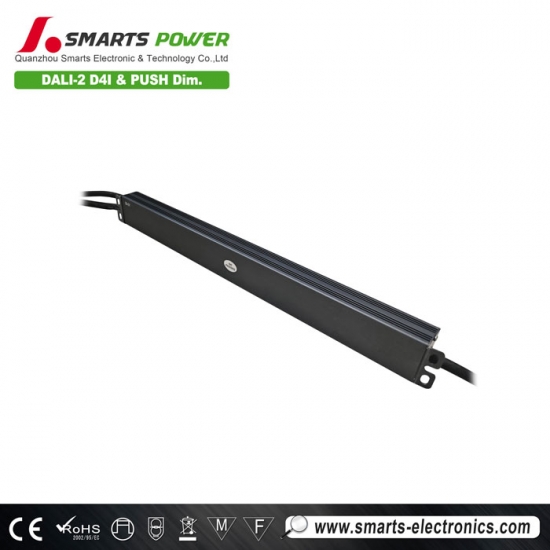

100-277vac 100w constant current DALI-2 D4I dimmable led driver power supply 160ma-1600ma
Slim size constant current DALI-2 & PUSH D4I dimmable led power supply 100W, built-in NFC intelligent programming function, using digital communication, users can achieve intelligent control through simple wiring and connection. With 7 years warranty
Specification
| Model | SMT-DI100W160-D4PA | |
| Certificate | UL / FCC / CE / RoHS / Reach | |
| Output | Rated current | 160mA-1600mA (multiple current for choice freely by ProNFC) |
| DC Voltage | 24V-93V | |
| Rated power | 100Wmax | |
| Voltage Tolerance | ±30mA | |
| No-load voltage | 98Vmax | |
| Line Regulation | <0.1% | |
| Load Regulation | <0.1% | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor @ full load | ≤0.95 | |
| THD(Typ.) @ full load | <10% | |
| Efficiency @ full load | >88.5%@120VAC 60Hz >90.5%@230VAC 50HZ >90.5%@277VAC 60HZ | |
| No load power (Max) | <3W | |
| Standby power (max.) | <0.5W | |
| AC Current (Max.) | <1.33A | |
| Inrush Current (Typ.) | 29.6A, 412us@50%Ipeak120V 56.8A, 120us@50%Ipeak230V 68.4A, 580us@50%Ipeak277V | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Hiccup mode, restarts automatically after fault condition is removed |
| Over Load | ≤120% Hiccup mode or Constant power mode, recovers automatically after fault condition is removed | |
| Over temperature |
Ambient temp. over 55 ± 5℃, output current will be reduced to 50%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops. Ambient temp.over 75 ± 5℃, output current will be reduced to 0%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops. |
|
| Environment | Working TEMP | -40~+60℃ (see below derating curve) |
| Working Humidity | 20 -95%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 (US) |
| Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) |
|
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |
| EMC Emission | EN55015 EN61000-3-2,3 (EU) & FCC Part 15, Subpart B; ANSI C63.4:2014 (US) | |
| EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 (EU) | |
| Lightning surge | DM:2KV CM:4KV | |
| Strobe test standard | IEEE 1789 flicker-free | |
| Net Weight | 0.6KG | |
| Others | Dimension | 365.8*38.5*23.6mm (L*W*H) |
| Packing | ****pcs /CTN | |
| Notes |
1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. 2. To extend the driver's using life , please reduce the loading at lower input voltage . |
|
 |
 |
 |
 |

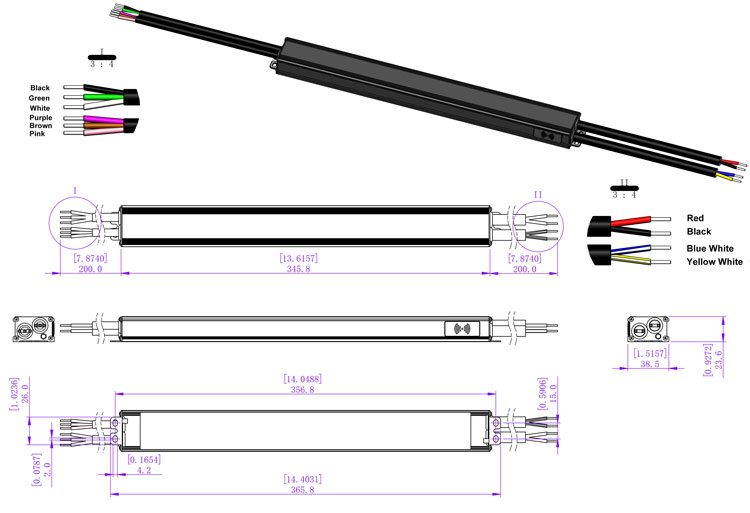

Mechanical Specification
1.Input cable Rubber 3*1.0mm2: the Brown cable to (L), the Blue cable to (N) and the Yellow/Green cable to (FG).
2.Output cable Rubber 2*1.0mm2: Red cable (+) to LED Positive side(+), Black cable (-) to LED Negative side (-).
3.Dimming cable Rubber 3*0.824mm2: Purple (DA+), Pink (DA-/PUSH/N) and Brown(PUSH/L).
4.Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
5.This product is also suitable for temperature control. It is recommended to use NTC for external temperature sensors, and the resistance value when triggering protection is between 1 Ω -20K Ω.
