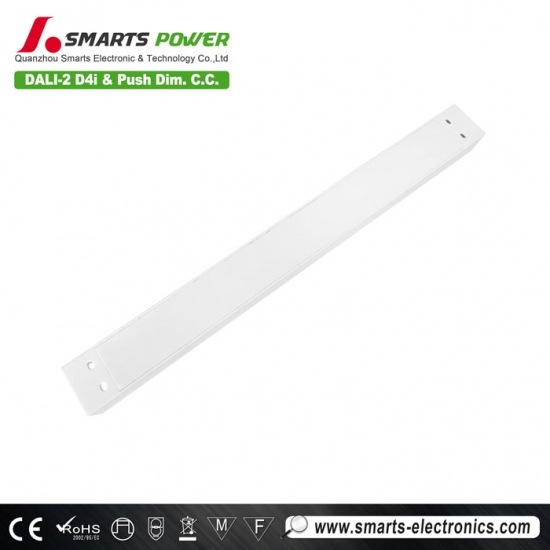

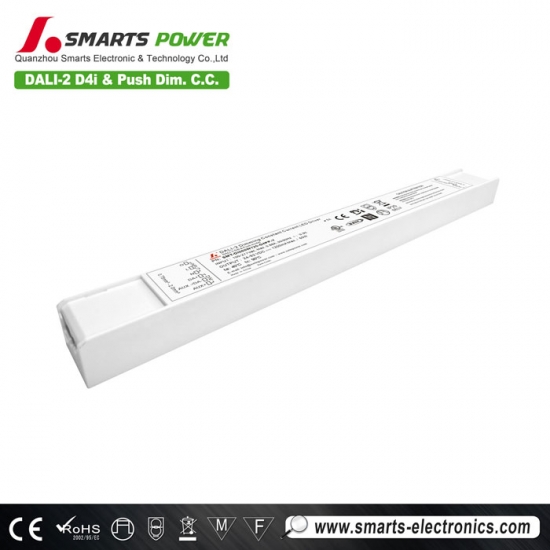

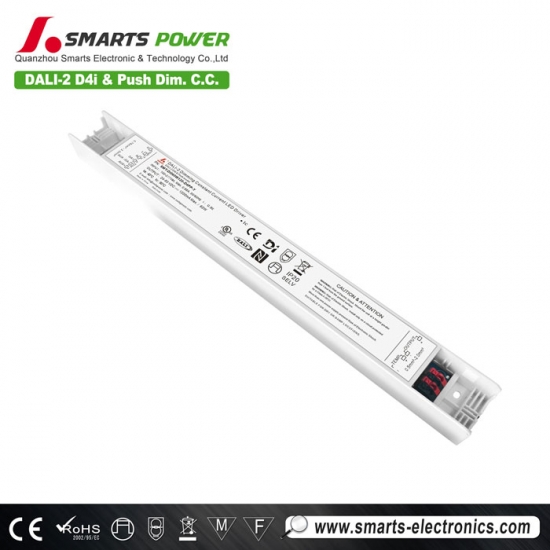

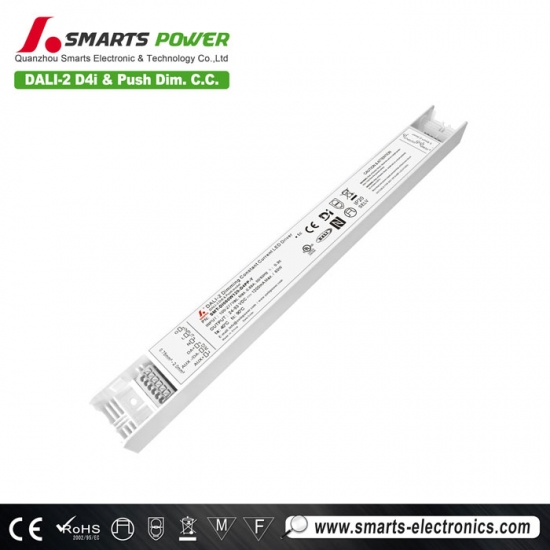

100-277vac flicker free 60w DALI-2 D4I dimmable constant current led driver for indoor
This DALI-2 D4I dimmable constant current LED driver has a built-in NFC smart programming module. Through 0.1~100% ultra-deep dimming, it can accurately control the brightness and color temperature of the light. It can achieve healthy lighting without flicker. It has a 7-year warranty
Specification
| Model | SMT-DI060W120-D4PP | |||
| Certificate | UL / FCC / CE / RoHS / Reach / DALI / NFC | |||
| Output | Rated current | 120mA-1200mA (multiple current for choice freely by ProNFC) | ||
| DC Voltage | 24V-93V | |||
| No-load voltage | 98Vmax | |||
| Voltage Tolerance | ±30mA(Rated output current of corresponding gear) | |||
| Voltage Regulation | ≤0.5% | |||
| Rated power | 60Wmax | |||
| Line Regulation | <1% | |||
| Load Regulation | <0.1% | |||
| Input | Voltage Range | 100-277VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor (Typ.) | PF≥0.94 | |||
| No load power (Max) | <1.5W | |||
| Standby power (Max) | <0.5W | |||
| THD(Typ.) @ full load | ≤15% | |||
| Efficiency @ full load | ≥88%@120VAC 60Hz ≥89%@230VAC 50HZ ≥89%@277VAC 60HZ | |||
| AC Current (Max.) | 0.75A | |||
| Inrush Current (Typ.) | 66.0A, 220us@50%Ipeak277V 55.2A, 98us@50%Ipeak230V 28.7A, 204us@50%Ipeak120V | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | ||
| Over voltage | Hiccup or constant power mode, reboots automatically after fault condition is removed | |||
| Over temperature |
Ambient temp. over 50±5℃, output current will be reduced to 50%;Ambient temp.Over 45±5℃,recovers automatically. Ambient temp.over 60±5℃, output current will be reduced to 0%;Ambient temp.Over 45±5℃,recovers automatically. |
|||
| Environment | Working TEMP | -40~+60℃ (see below derating curve) Tc point temperature (Ta=40 ℃)89℃ | ||
| Working Humidity | 20 -90%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10~500Hz, 2G 10min./1 cycle, period for 60min. each along X,Y,Z axes | |||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750 UL1310(US) | ||
| Withstand voltage | I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.8KVAC (US) | |||
| Strobe test standard | Compliant with IEEE 1789 without strobe | |||
| THD test standard | Compliant with IEC/EN 61000-3-2 | |||
| lightning surge | DM:2KV CM:4KV | |||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |||
| EMC Emission | EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US) | |||
| Others | Net Weight | 0.3KG | ||
| Dimension | 342*34.8*24.1mm (L*W*H) | |||
| Packing | ****pcs /CTN | |||
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | |||
| 2. To extend the driver's using life, please reduce the loading at lower input voltage. | ||||
 |
 |
 |
 |
Mechanical Specification
1. Input with Gray terminals 6P: Live Wire AC (L), Neutral Wire AC(N) .
2. Output LED SEC with Red/Black terminals 4P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.
3. Dimming Gray terminals 6P: when DALI dimming, signal dimming DA+, DA-/PUSH N and PUSHS L connected to the BUS of the DALI Master.
4. Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
5. This product is also suitable for temperature control. It is recommended to use NTC for external temperature sensors, and the resistance value when triggering protection is between 1 Ω -20K Ω.
Warm tips:
1. Suggested wire diameter: Input 0.2mm2-1.5mm2/AWG24-16.
Dimming operation
Connect the DALI signal cable to the DALI bus of the controller (DALI Master), and after the controller scans and assigns an address, the power supply can be dimmed
and controlled.
Attention:
The models with D4I and D4P in the model names all have DALI bus power supply function. If the bus power supply function is enabled (default off, can be enabled in NFC or upper computer), DALI dimming will come with a voltage of 16-20V, without the need for external power supply. If the power supply function is turned off, an additional DALI power supply (DALI Power) is required.
