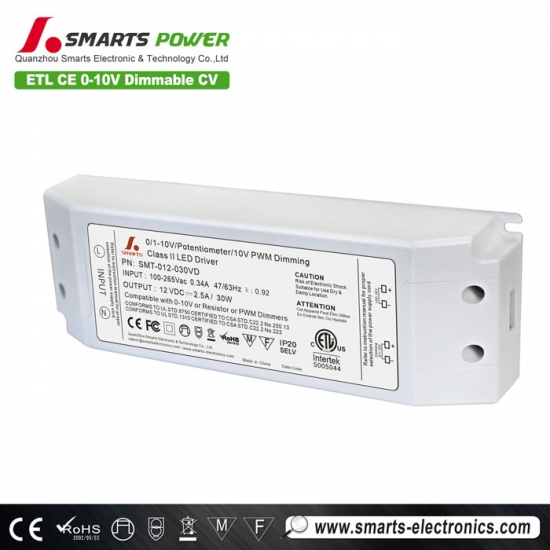

0-10v dimmable driver 12v 30w dimmable led driver
SMT-012-030VD is the dimmable constant voltage led driver. This transformers is compatible with most 0-10v/1-10V/PWM analog dimmers from; Lutron, Clipsal, Dynalite, etc. Each unit is backed by our 3 years warranty,ETL FCC CE RoHS approved and allows you the extra benefit of flicker free dimming.
Model |
SMT-012-030VD |
SMT-024-030VD |
|
Output |
DC Voltage |
12VDC |
24VDC |
voltage Accuracy |
±3% |
||
Current |
2.5Amp |
1.25Amp |
|
Rated power |
30W |
30W |
|
Input |
Voltage Range |
100~265VAC |
|
Frequency Range |
47~63HZ |
||
PF(Typ.) |
PF>0.90 |
||
Full Load Efficiency(Typ) |
>88% |
>88% |
|
AC Current (Typ.) |
0.34A |
0.17A |
|
Leakage current |
﹤0.7mA/110-220VAC |
||
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|
Over voltage |
≦280VAC |
||
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||
Environme |
Working TEMP. |
-40~+50℃ |
|
Working Humidity |
20~95%RH,non-condensing |
||
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
Vibration |
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes |
||
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13. IP40 |
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
||
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≧50%Load) |
||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
||
Others |
Weight |
0.4Kg |
|
Size |
180*60*35mm(L*W*H) |
||
packing |
355*215*215mm/20pcs /CTN |
||
Notes |
1. All parameters NOT specially mentioned are measured at 110v~220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||

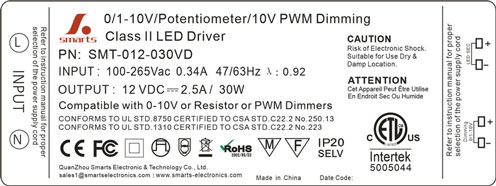

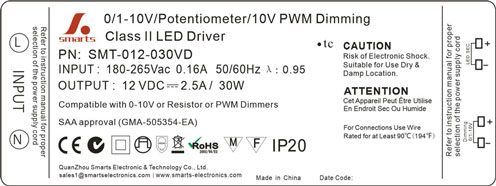

Label |
|

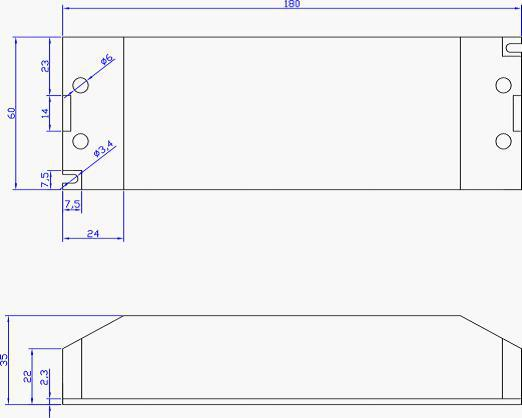

30W dimmable driver Mechanical Specification
※Input with Live Wire(L) Neutral Wire (N)
※Signal Dimming (0/1-10V)(DIM+), (DIM-)
※Output LED SEC (LED+),(LED-)
Dimming Operation 0-10v dimming driver
※Built-in 3 in 1 dimming function, IP40 rated .Output constant current level can be adjusted through output cable by connection a resistance or 0/1-10V DC or 10V PWM signal between DIM+ and DIM-
※Reference resistance value for output current adjustment (Typical)
