UL Listed 12VDC 100W LED Light Power Supply Manufacturers
Smarts Electronics--The Professional power supply manufacturers, offer superior quality LED items to our clients, and enjoy a bright and comfortable life.
SMT-012-100VWJ is made by Smarts Electronics. It is UL listed LED Light Power Supply. The input voltage is from 90 to 277 VAC and output constant voltage is 12V DC. This led power supply 100w is IP20 level and comes with manufacture 7 year warranty.
Automatic protection for: short circuit / overload / over voltage / high temp. Aluminum metal housing, easy for heat dissipation & ensure stability. Suitable for LED lighting and moving sign applications.
Specifications
|
model |
SMT-012-100VWJ |
SMT-024-096VR |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
8.3A |
4.0A |
|
|
Rated power |
100W |
96W |
|
|
Input |
Voltage Range |
100~277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
0.99@120V ;0.97@230V ;0.97@277V |
||
|
Full Load Efficiency(Typ.) |
>87% |
>88% |
|
|
AC Current（Typ.） |
1.3A @110VAC |
||
|
THD(Typ.)@ full load |
<15% @120V <20%@230V <20% @277V |
||
|
Inrush Current (Typ.) |
20A,50% ,1.6ms@120V ; 30A,50% 200us@230V ; 25A,50% 1.2ms@277V |
||
|
Leakage current |
﹤0.5mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Over Loading |
≤120% constant current limiting, auto-recovery |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
Others |
Weight |
1.3Kg |
|
|
Size |
221*93*40mm (L*W*H) |
||
|
packing |
10PCS/CTN 385*335*200mm 20PCS/CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 120VAC & 277vac input , rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |
|
Features
|

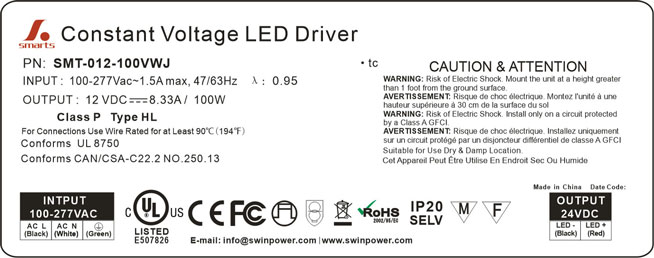

Label
|
|
·Output constant voltage ·Input voltage range 100-277VAC ·Built-in PFC function, PF> 0.98 ·UL, cUL listed, Class 2, Class P, Type HL ·E fficiency > 87% ·Protections:short circuit/over voltage/over heat ·IP20 design for indoor installations ·Cooling by free air convection ·Full protection aluminum housing, for dry, damp location ·Suitable for LED lighting and moving sign applications ·Compliance to worldwide safety regulations for lighting ·7 years warranty |
 |
※Input power cord: 18AWG Black and White to be connected to AC L and N ,Green wire go ground
Mechanical Specification
Derating Curve
※Output power cord: 16AWG, Red to LED Positive side (+) , Black to LED Negative side (-).
Simple Connection Diagram
