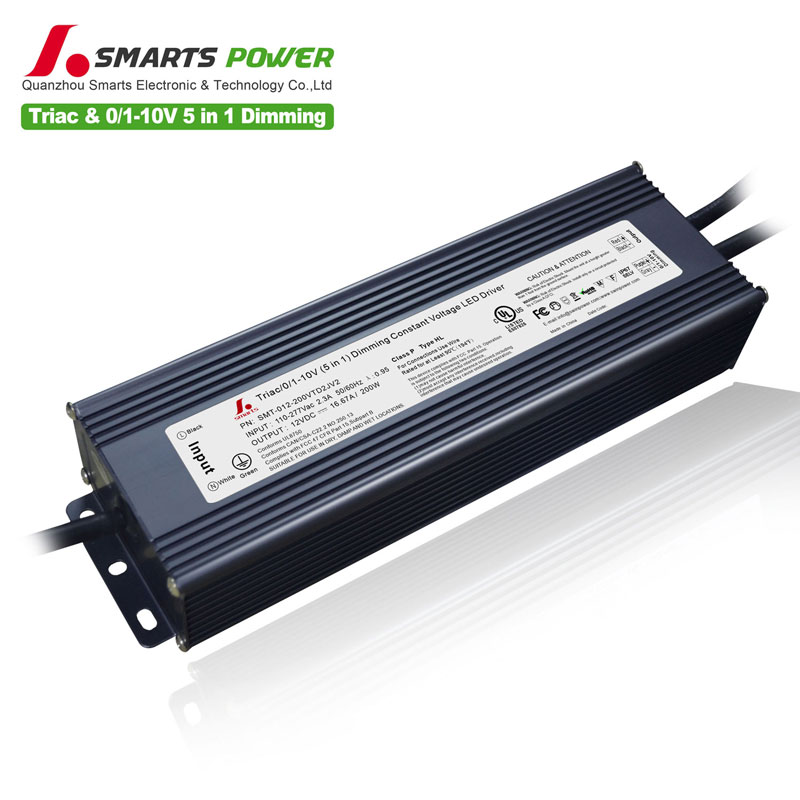

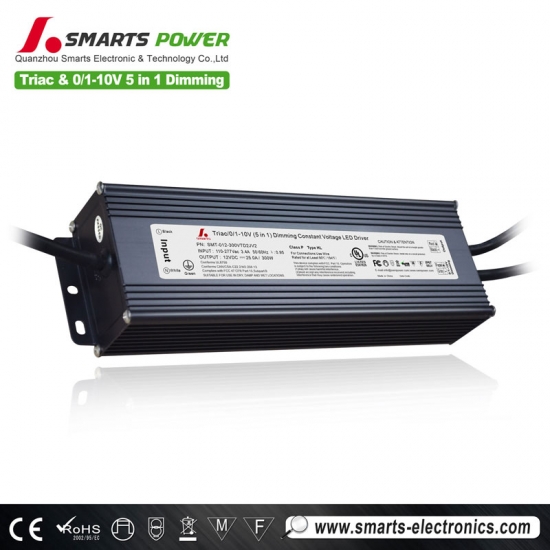

5 in 1 pwm dimmable led driver waterproof led power supply 12v 300w
Waterproof led power supply 12v 300w has 12VDC constant voltage output and can power up to 300W Nora Lighting’s 12Volt Puck Light load. It has an integrated junction box, as well as short-circuit, overload, and over-temperature protection.
Product parameters
Model
SMT-012-300VTD2JV2
SMT-024-300VTD2JV2
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±2%
±1%
Rated current
25.0A
12.5A
Rated power
300W
Input
Voltage Range
100-277VAC
Frequency Range
47～63HZ
Power Factor(Typ.)@ full load
0.98@120VAC 0.97@277VAC
0.98@120VAC 0.97@277VAC
THD（Typ.）@ full load
<20%
Inrush Current （Typ.）
20A, 50%, 1.9ms @120VAC; 35A, 50% 1.9ms @277VAC
Full Load @Efficiency(Typ.)
86%@120VAC 88%@277VAC
88%@120VAC 92%@277VAC
AC Current（Typ.）
3.4A
Leakage current
<0.50mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition
is removed
Over load
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Over Current
≤1.4*I out
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20 - 95%RH,non-condensing
Storage TEM.,Humidity
-40 - +80℃,10 - 95%RH
TEMP.coefficient
±0.03%/℃(0 - 50℃)
Vibration
10～500Hz, 5G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750 , CAN/CSA-C22.2 No.250.13
Withstand voltage
I/P-O/P:1.88KVac
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC 47 CFR Part 15 ,Subpart B
Others
Weight
1.7Kg
Size
276*78*47mm (L*W*H)
packaging
Carton size: 390*310*185mm , 10PCS/CTN
385*335*200mm 20PCS/CTN
Notes
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment.
4. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

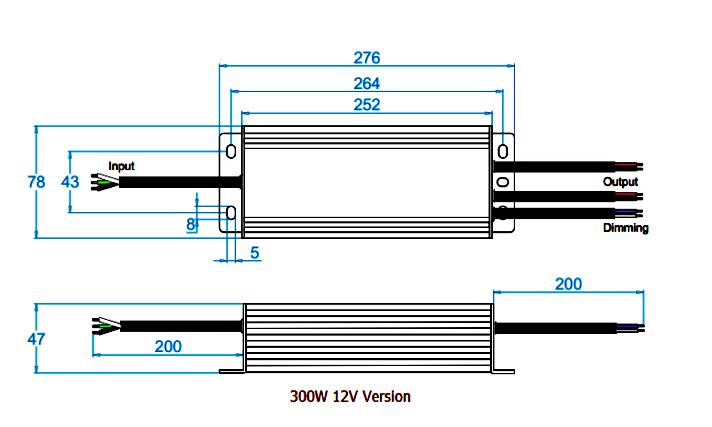

Mechanical Specification
Input cable 3*18AWG,the green cable to (FG) "Black" to L ,and "White" to N of Mains AC
Output cable 2*14AWG,Red" (+) to LED Positive side (+) , "Black"(-) to LED Negative side (-). (noted that 12V 300W is with 2 group of 2*14AWG output wires to separate the output current.)
Dimming cable 2*18AWG,DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Compatible Strip Lighting Type

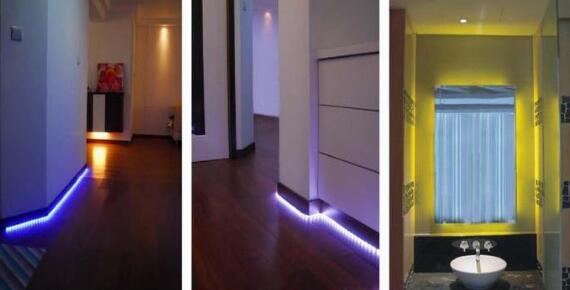

Top Light's variable luminous color strip lighting, can adjustable light, can control the color change, choose monochrome and RGB effect, bring colorful visual effect to the environment together with waterproof led power supply 12v 300w.
