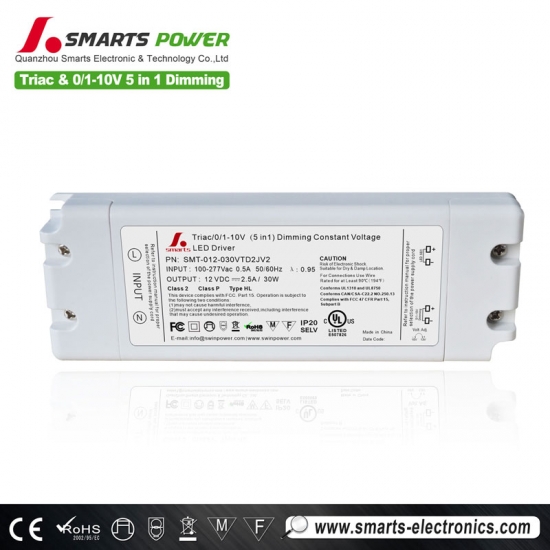

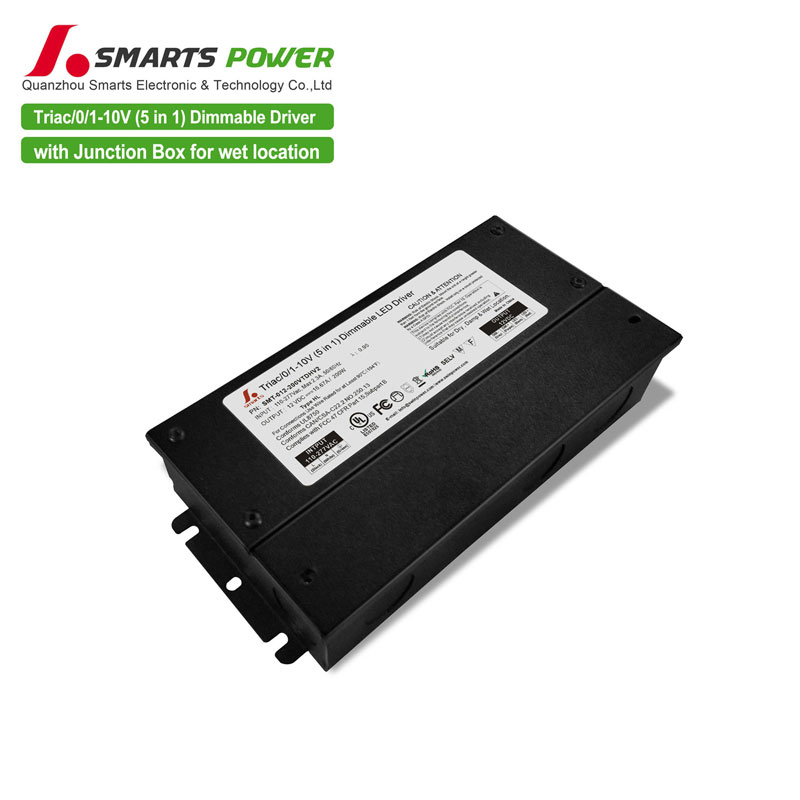

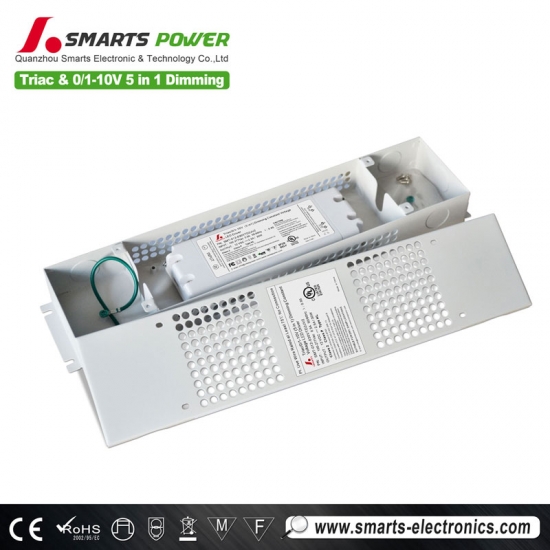

12v dc 30w led power supply 5 in 1 dimmable led driver with junction box
This dimmable 30w led power supply are 5 in 1 dimmable led driver, support Triac/0-10V/1-10V/Potentiometer/10V PWM dimmimg, compatible with both forward phase and reverse phase AC dimmers, They are also compliance to worldwide safety regulations for Kichler indoor led cabinet lights.
Product parameters
model
SMT-012-030VTD2JV2
SMT-012-030VTD2JV2
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
±0.5V
Voltage Regulation
±0.5%
Rated current
2.50A
1.250A
Load Regulation
±1%
Rated power
30W
30W
Input
Voltage Range
100-277V AC
THD(Typ. ) @ full load
<20%@120VAC &277VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.99@120VAC 0.98@277VAC
0.99@120VAC 0.95@277VAC
Full Load Efficiency（Typ.）
79%@120VAC 80%@277VAC
79%@120VAC 80%@277VAC
AC Current（Typ.）
0.5A
Inrush Current （Typ.）
7A, 50%, 420us @120VAC; 12A, 50% , 480us @277VAC
Leakage current
<0.5mA
Protection
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% Hiccup mode,recovers automatically after fault condition is removed
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20 - 95%RH,non-condensing
Storage TEM.,Humidity
-40 - +80℃,10 - 95%RH
TEMP.coefficient
±0.03%/℃(0 - 50℃)
Vibration
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310 , CAN/CSA-C22.2 No.250.13
Withstand voltage
I/P-O/P:1.88KVac
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC 47 CFR Part 15 ,Subpart B
Others
Weight
About 0.25Kg
Size
155*54*20mm (L*W*H)
packing
Carton size: 350*240*130mm , 40PCS/CTN
（L*W*H）
Notes
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
 |
 |
 |
 |

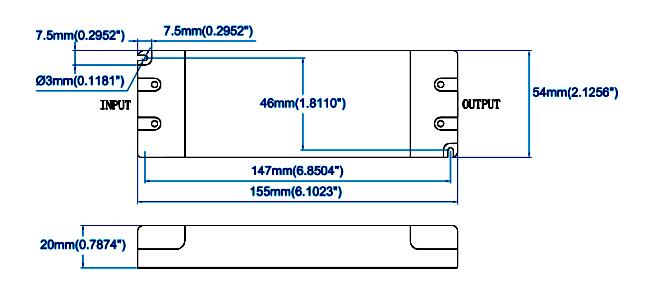

Mechanical Specification
Input with terminals Live(L) and Neutral(N) wires to be connected AC;
Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connections.
Compatible Linear Lighting Type
At the center of this wet location linear lighting is the precision engineered BLAZE X LED light engine. BLAZE X wet location has 95+ CRI and high R-values that provides precision color rendering, and is suitable for applications that are prone to splashing, spraying, or rain. Field-cuttable and available in the LED lighting program work with 12vdc dimmable led driver.
